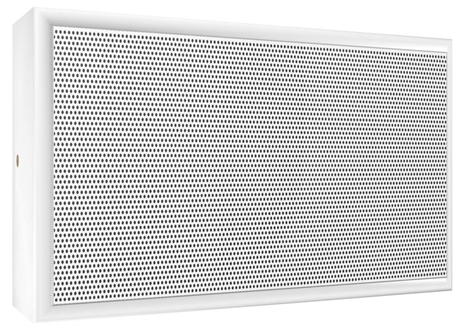

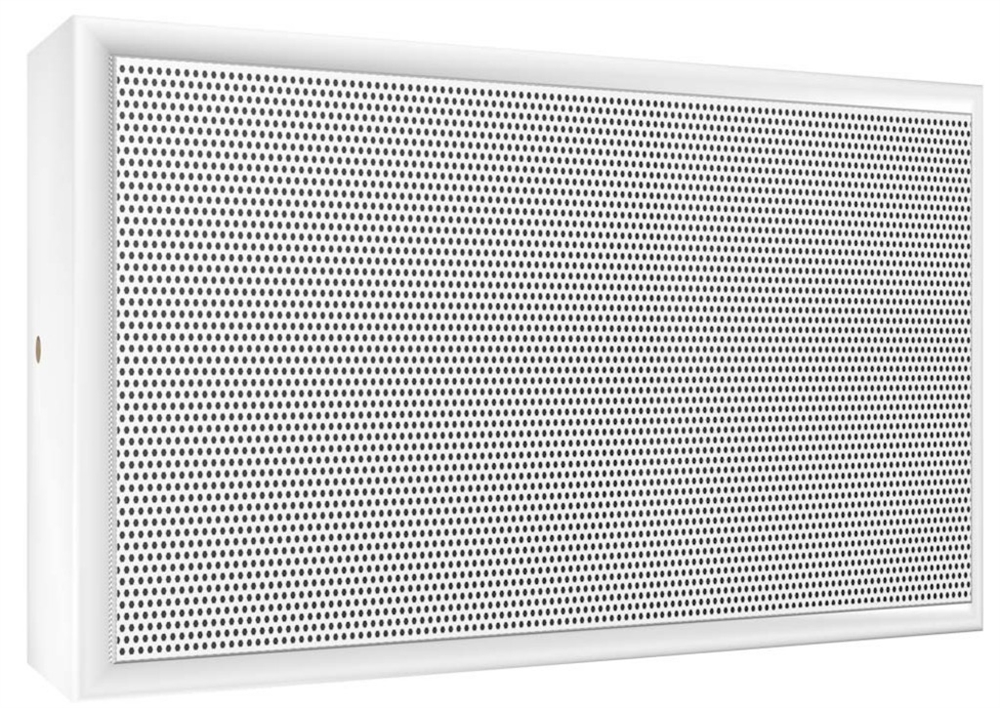

Technical specifications WDW-2000-10
| WDW-2000-10 |
|---|
| Active/passive |
passive
|
| Transmission technology |
100 V
|
| Total power rating |
10 W
|
| Power rating (RMS) |
10/5/2.5 W
|
| Frequency range |
80-19,000 Hz
|
| Number of speakers |
1
|
| Speaker size |
13 cm (5")
|
| SPL |
93 dB/W/m
|
| Max. rated SPL |
103 dB
|
| Radiation angle/beam angle |
H180°/V180°
|
| Radiation angle, horizontal |
180°
|
| Radiation angle, vertical |
180°
|
| Housing material |
wood
|
| Colour |
white, RAL 9010
|
| Mounting device |
aluminium bracket
|
| Protected against ball rebound |
yes
|
| Dimensions |
265 x 165 x 88 mm
|
| Width |
265 mm
|
| Height |
165 mm
|
| Depth |
88 mm
|
| Weight |
1.8 kg
|
| Inputs |
pressure clamps
|
| Packaging dimensions (W x H x L) |
0.268 x 0.168 x 0.092 m
|
| Gross weight |
1.7 kg
|
| Net weight |
1.6 kg
|
| |
| WDW-2000-10 |
|---|
| EAN code |
4007754429848
|
| Net weight |
1.6 kg
|
| |
