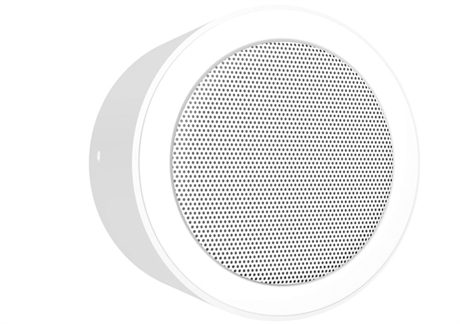

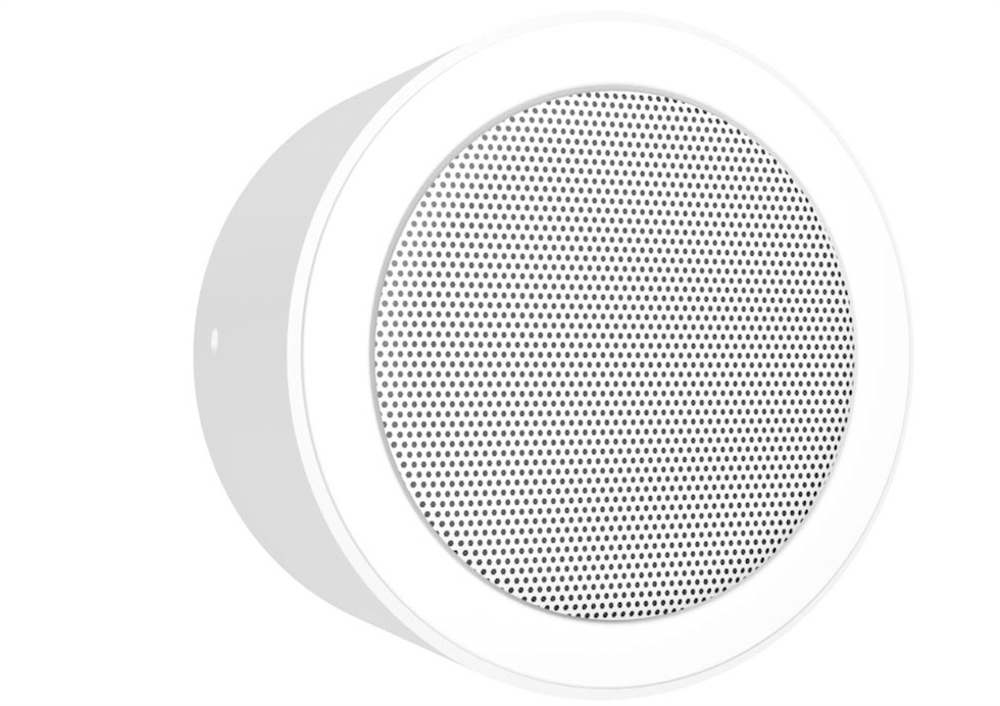

Technical specifications DAR-87-10
| DAR-87-10 |
|---|
| Active/passive |
passive
|
| Transmission technology |
100 V
|
| Total power rating |
10 W
|
| Power rating (RMS) |
10/5/2.5 W
|
| Frequency range |
80-19,000 Hz
|
| Number of speakers |
1
|
| Speaker size |
5 cm
|
| SPL |
93 dB/W/m
|
| Max. rated SPL |
103 dB
|
| Radiation angle/beam angle |
180°
|
| Radiation angle, horizontal |
180°
|
| Radiation angle, vertical |
180°
|
| Housing material |
Aluminium
|
| Colour |
White, RAL 9010
|
| Mounting device |
Aluminium bracket
|
| Dimensions |
Ø 144 mm x 87 mm
|
| Width |
Ø 144 mm
|
| Height |
Ø 144 mm
|
| Depth |
87 mm
|
| Weight |
1.3 kg
|
| Inputs |
Pressure terminals
|
| Packaging dimensions (W x H x L) |
0.17 x 0.17 x 0.102 m
|
| Gross weight |
1.2 kg
|
| Net weight |
1.1 kg
|
| |
| DAR-87-10 |
|---|
| EAN code |
4007754429879
|
| Net weight |
1.1 kg
|
| |
