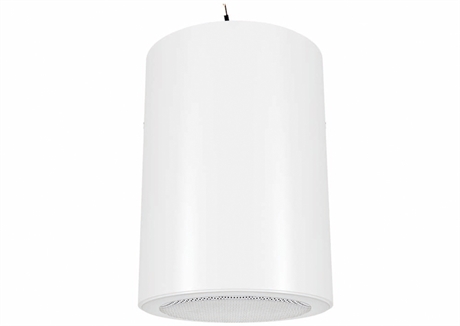

Technical specifications RL-4
| RL-4 |
|---|
| Active/passive |
passive
|
| Transmission technology |
100 V
|
| Total power rating |
6 W
|
| Power rating (RMS) |
6/3/1.5 W
|
| Frequency range |
70-19,000 Hz
|
| Full range speaker |
13 cm
|
| Number of speakers |
1
|
| Speaker size |
13 cm (5")
|
| SPL |
93 dB/W/m
|
| Max. rated SPL |
101 dB
|
| Radiation angle/beam angle |
130°
|
| Radiation angle, horizontal |
130°
|
| Radiation angle, vertical |
130°
|
| Housing material |
aluminium
|
| Colour |
white, RAL 9010
|
| Mounting device |
aluminium bracket
|
| Dimensions |
Ø 144 mm x 210 mm
|
| Width |
Ø 144 mm
|
| Height |
Ø 144 mm
|
| Depth |
210 mm
|
| Weight |
2.6 kg
|
| Inputs |
pressure clamps
|
| Packaging dimensions (W x H x L) |
0.175 x 0.175 x 0.267 m
|
| Gross weight |
2.7 kg
|
| Net weight |
2.6 kg
|
| |
