PA midrange speaker, 30 W, 8 Ω - TF0510MR/8

PA midrange speaker, 30 W, 8 Ω - TF0510MR/8
  • På lager
  • På lager, 2-4 dage
  • Bedømmelse for PA midrange speaker, 30 W, 8 Ω - TF0510MR/8
    Produktet er endnu ikke bedømt


Indhent tilbud.
Vis uden moms

Billigst på PriceRunner

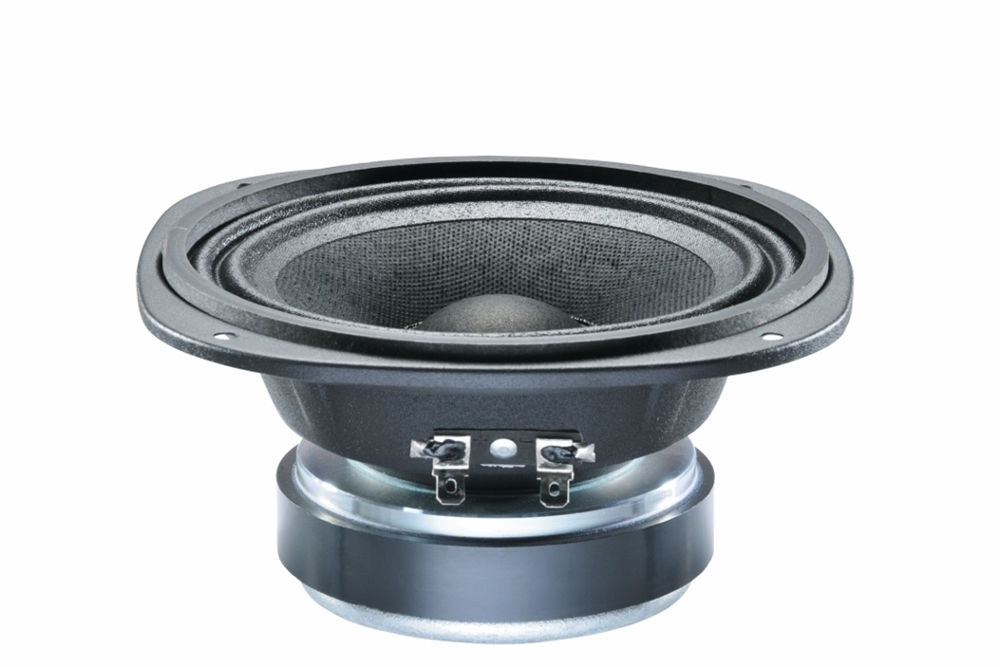

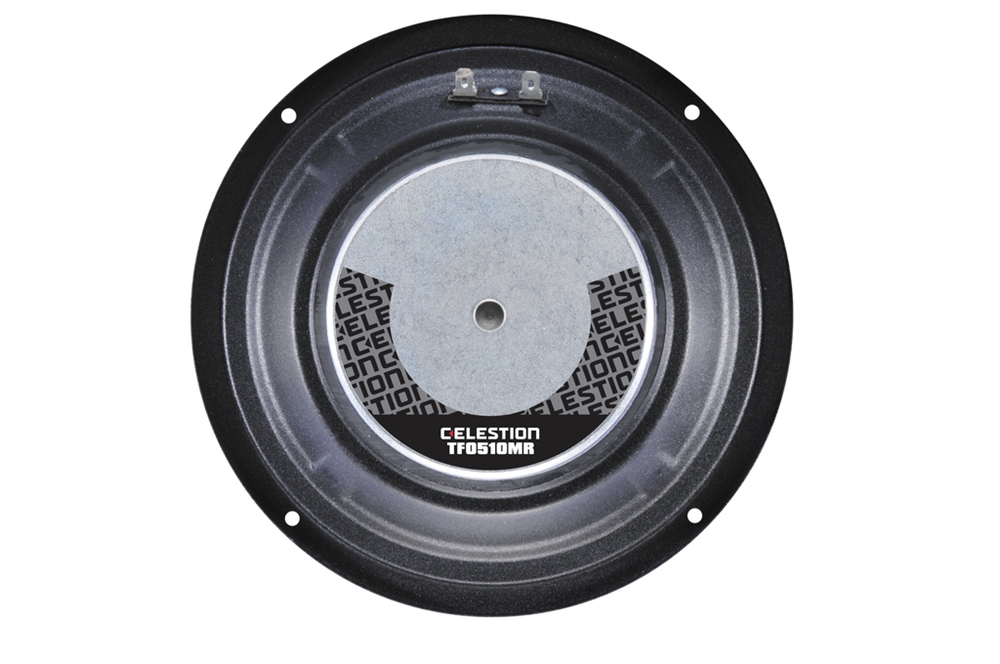

PA midrange speaker, 30 W, 8 Ω
The speakers of the TF series feature an excellent price-performance ratio and at the same time provide excellent sound characteristics. Thus, they are ideally suited for an application in high-performance PA speaker systems which provide a powerful sound.
  • 12.7 cm (5") speaker made of extruded steel
  • Midrange speaker with ferrite magnet
  • Closed midrange unit
Technical specifications TF0510MR/8
TF0510MR/8
Impedance (Z) 8 Ω
Transmission technology cable
Frequency range 400-8,000 Hz
Resonant frequency (fs) 482 Hz
Power rating (RMS) 30 W
Peak music power output (MAX) 60 W
SPL 93 dB/W/m
DC resistance (Re) 7.87 Ω
Voice coil induct. (Le) 0.2 mH
Voice coil diameter Ø 25 mm
Voice coil material copper wire
Voice coil former polyimide
Magnet weight 370 g
Mounting cutout Ø 117 mm
Mounting depth 68 mm
Mounting hole diameter Ø 140 mm
Dimensions 136 x 151 x 68 mm
Width 136 mm
Height 151 mm
Depth 68 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.95 kg
Packing unit 1
Type of speaker 5"
Packaging dimensions (W x H x L) 0.152 x 0.102 x 0.152 m
Gross weight 1.07 kg
Net weight 0.95 kg
TF0510MR/8
EAN code 739894536455
Net weight 0.95 kg
