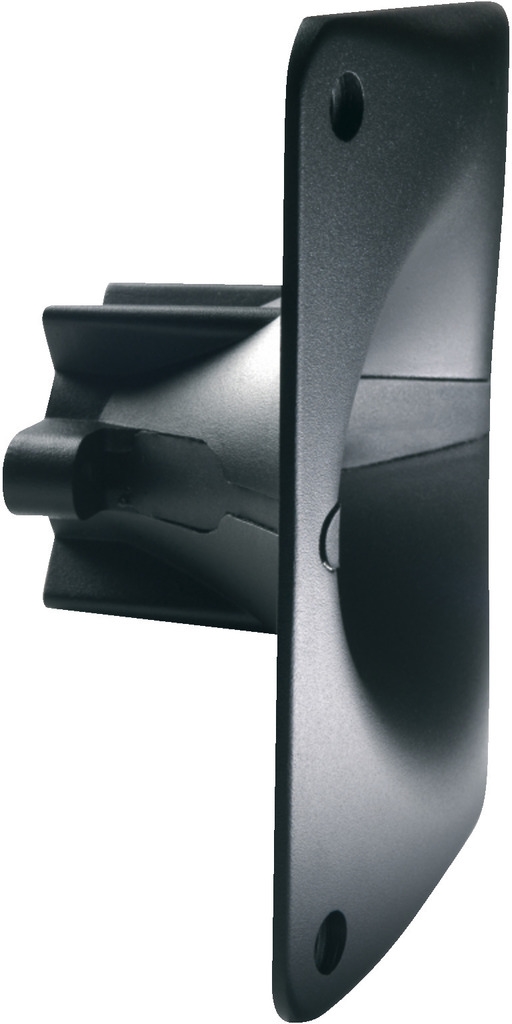

Technical specifications H1-7050
| H1-7050 |
|---|
| Description |
exponential horn
|
| Material |
diecast aluminium
|
| Frequency range |
1,000-20,000 Hz
|
| Crossover frequency |
1.5 kHz
|

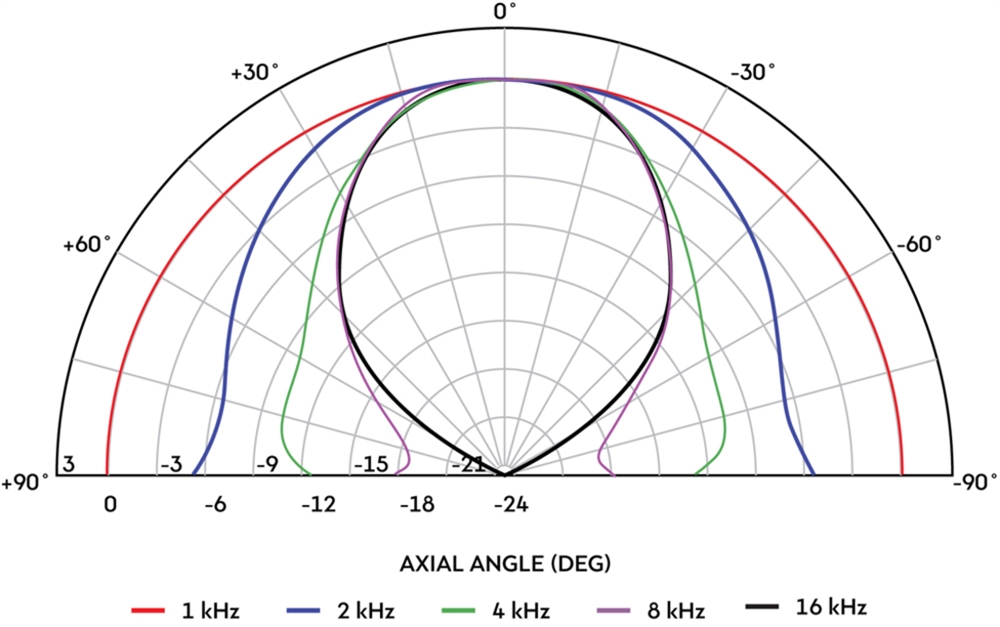

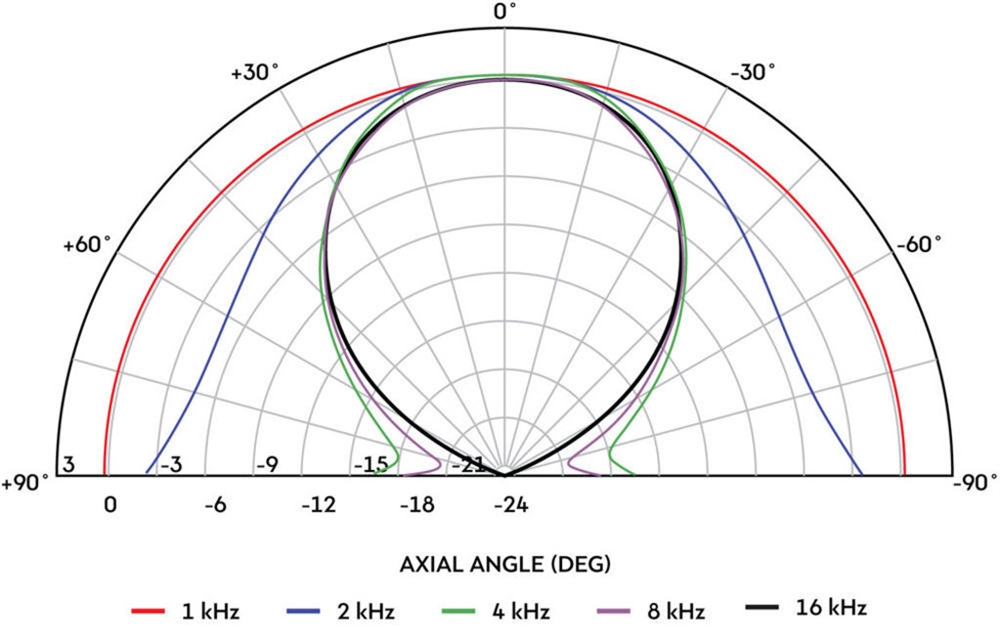

| Radiation angle (vert./hor.) |
50°/70°
|
| Radiation angle, vertical |
50°
|
| Radiation angle, horizontal |
70°
|
| Suitable outlet |
Ø 25.1 mm
|
| Mounting cutout |
Ø 155 mm
|
| Mounting depth |
86 mm
|
| Dimensions |
180 x 180 x 90 mm
|
| Height |
180 mm
|
| Width |
180 mm
|
| Depth |
90 mm
|
| Weight |
0.7 kg
|
| |
| H1-7050 |
|---|
| EAN code |
7398945134526
|
| Net weight |
0.7 kg
|
| |
