PA horn driver, 40 W, 8 Ω - CDX1-1730/8

På lager
På lager, 2-4 dage
Bedømmelse for PA horn driver, 40 W, 8 Ω - CDX1-1730/8
Produktet er endnu ikke bedømt

Indhent tilbud.Vis uden moms

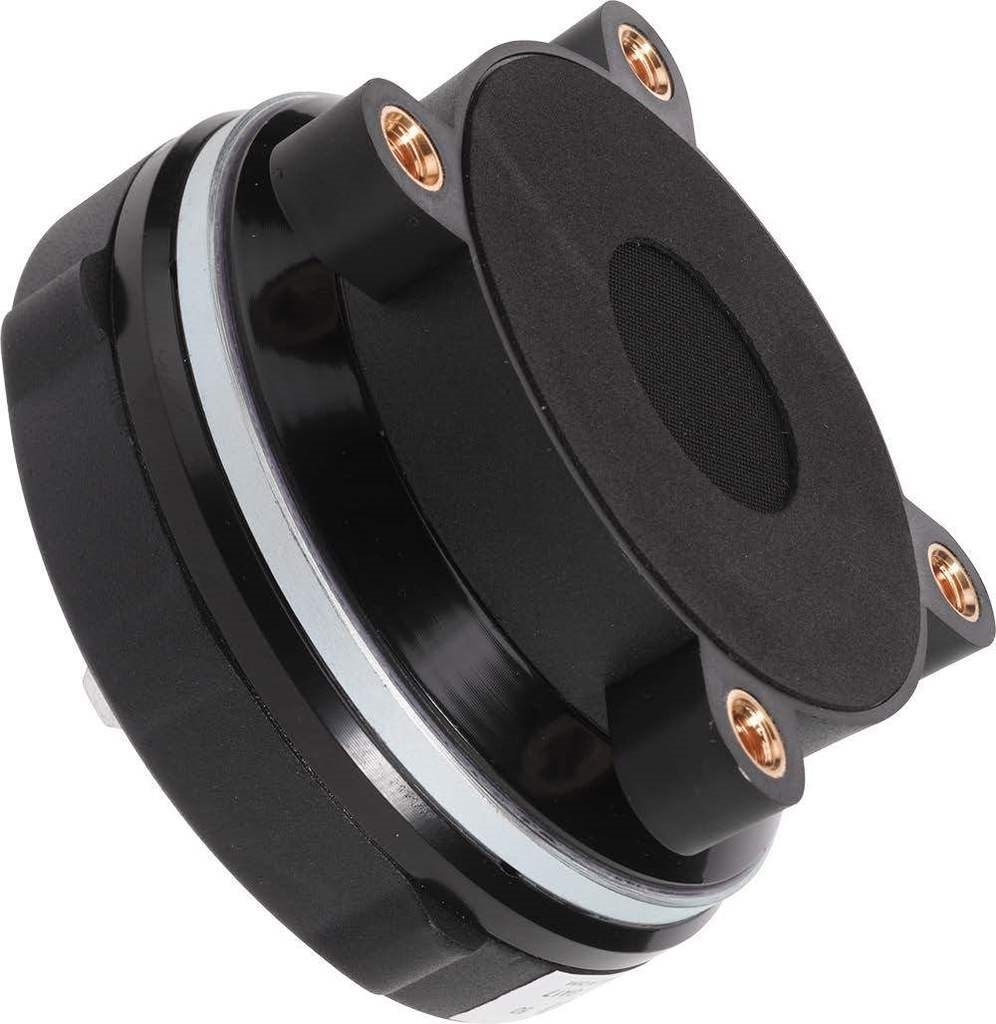

PA horn driver, 40 W, 8 Ω

High-quality 25 mm (1") compression driver with 44 mm (1.75") voice coil and neodymium magnet
One-piece PETP film cone and surround
Sound castle cone arrangement
Recommended crossover frequency: 2,200 Hz (12 dB/oct.)
25 mm sound outlet

Technical specifications CDX1-1730/8

CDX1-1730/8
Impedance (Z)	8 Ω
Transmission technology	cable

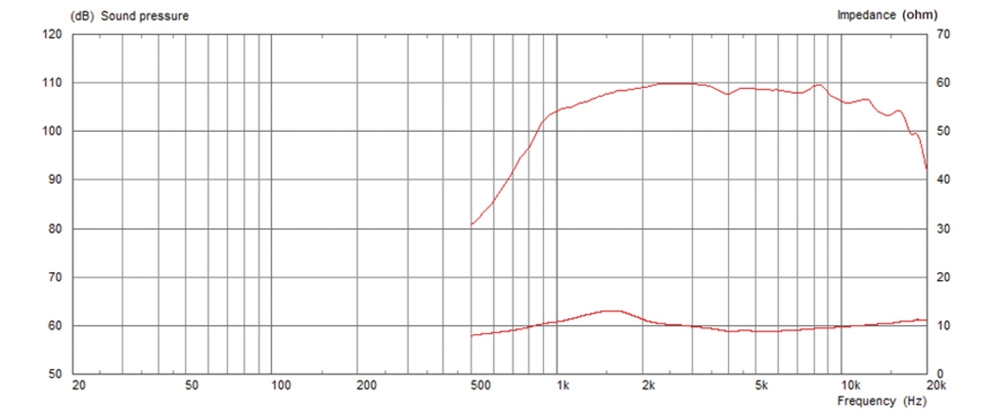

Frequency range	1,200-20,000 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	2,200 Hz
Power rating (RMS)	40 W
Peak music power output (MAX)	80 W
SPL	110 dB/W/m
Voice coil diameter	Ø 44 mm
Voice coil material	flat copper-coated aluminium wire
Outlet	Ø 2 mm
Mounting cutout	dep. on horn
Mounting depth	dep. on horn
Mounting hole diameter	Ø 76 mm (4x M6)
Dimensions	Ø 88.5 mm x 55 mm
Outside diameter	Ø 88.5 mm
Width	Ø 88.5 mm
Height	Ø 88.5 mm
Depth	55 mm
Colour	black
Admiss. ambient temp.	0-40 °C
Weight	0.64 kg
Packing unit	1
Type of speaker	1"
Packaging dimensions (W x H x L)	0.135 x 0.075 x 0.105 m
Gross weight	0.778 kg
Net weight	0.637 kg

Varenr.: 1001076
