PA horn driver, 50 W, 8 Ω - CDX1-1720/8

Ikke på lager
Kontakt os.
Bedømmelse for PA horn driver, 50 W, 8 Ω - CDX1-1720/8
Produktet er endnu ikke bedømt

Indhent tilbud.Vis uden moms

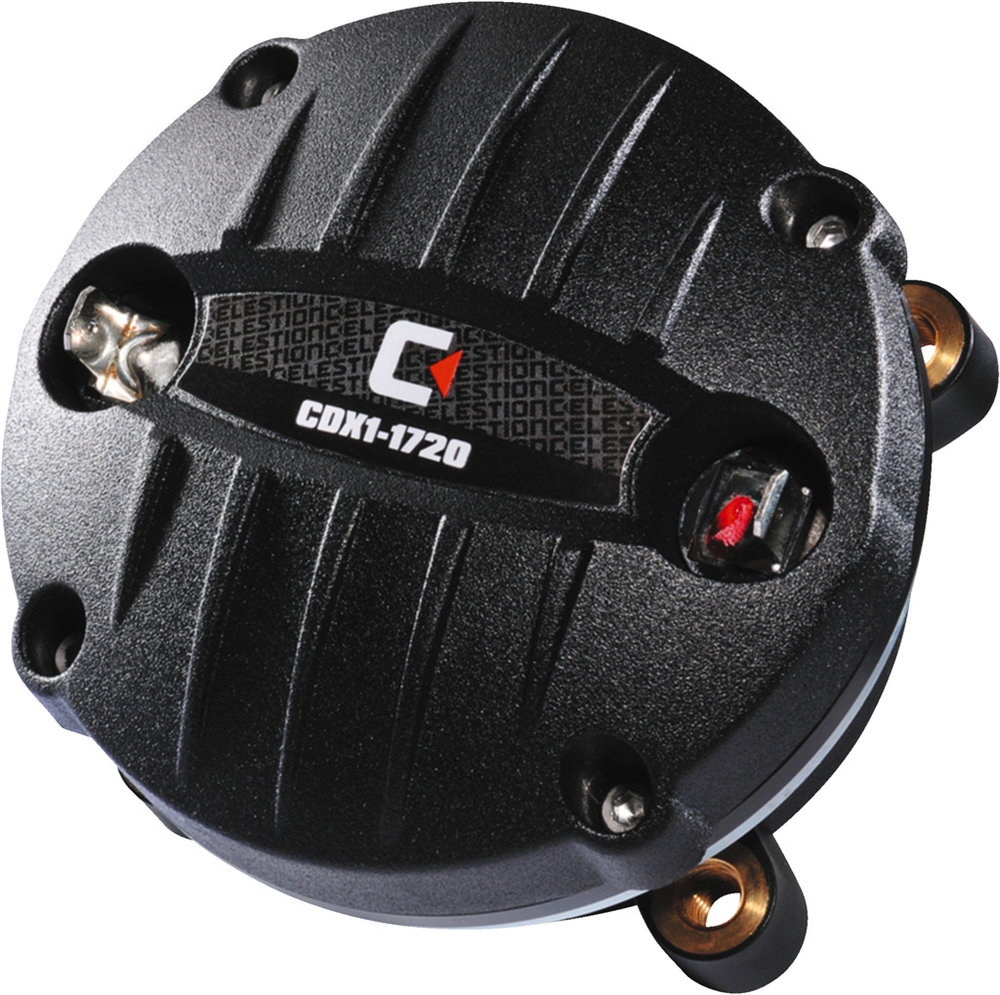

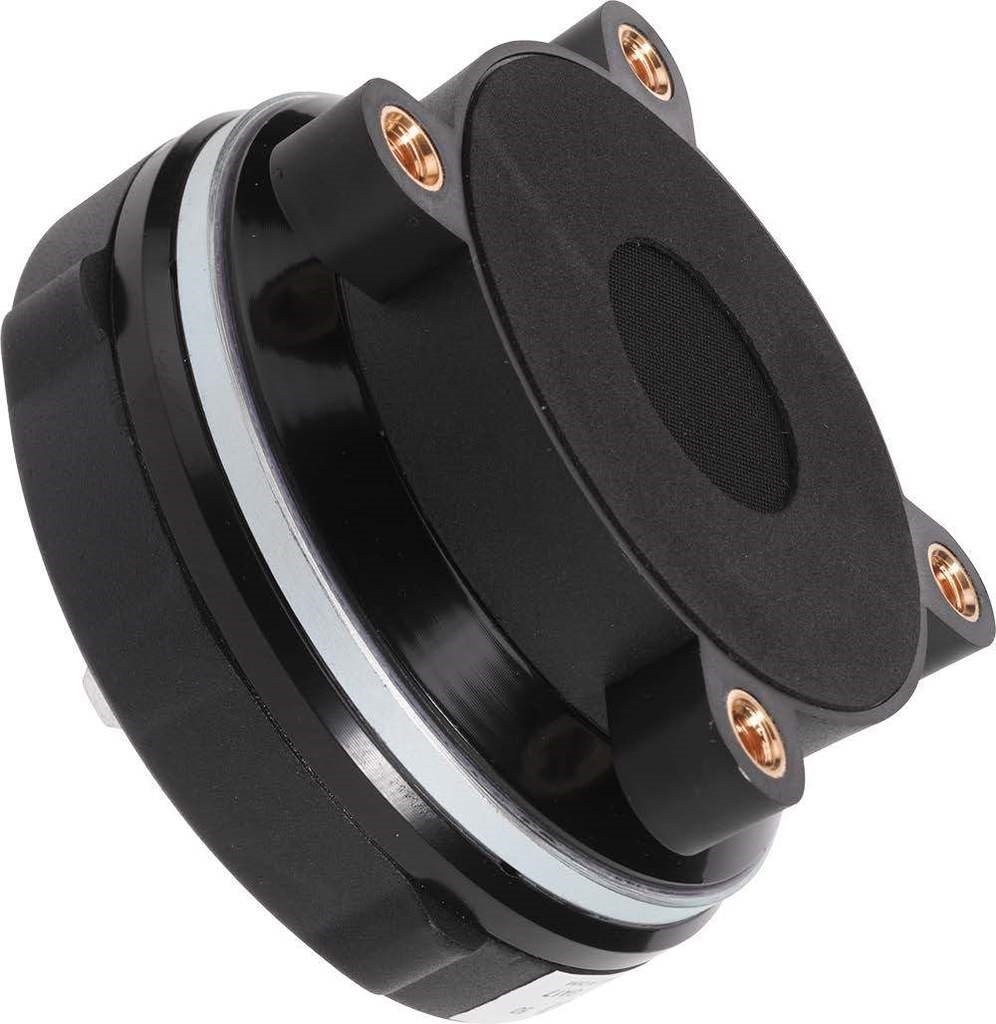

PA horn driver, 50 W, 8 Ω

High-quality 25 mm (1") compression driver with 44 mm (1.75") voice coil and ferrite magnet
Phase plug wih maximum modal suppression
Deep-drawn titanium cone with polyimide surround
Recommended crossover frequency: 1,500 Hz (12 dB/oct.)
4-hole screw mounting

Technical specifications CDX1-1720/8

CDX1-1720/8
Impedance (Z)	8 Ω
Transmission technology	cable
Frequency range	800-20,000 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	1,500 Hz
Power rating (RMS)	50 W
Peak music power output (MAX)	100 W
SPL	107 dB/W/m
Voice coil diameter	Ø 44 mm
Voice coil material	flat copper-coated aluminium wire
Outlet	Ø 25 mm
Mounting cutout	dep. on horn
Mounting depth	dep. on horn
Mounting hole diameter	Ø 76 mm (4x M6)
Dimensions	Ø 88.5 mm x 55 mm
Outside diameter	Ø 88.5 mm
Width	Ø 88.5 mm
Height	Ø 88.5 mm
Depth	55 mm
Colour	black
Admiss. ambient temp.	0-40 °C
Weight	0.62 kg
Packing unit	1
Type of speaker	1"
Packaging dimensions (W x H x L)	0.1 x 0.075 x 0.13 m
Gross weight	0.72 kg
Net weight	0.62 kg

Varenr.: 1001071
