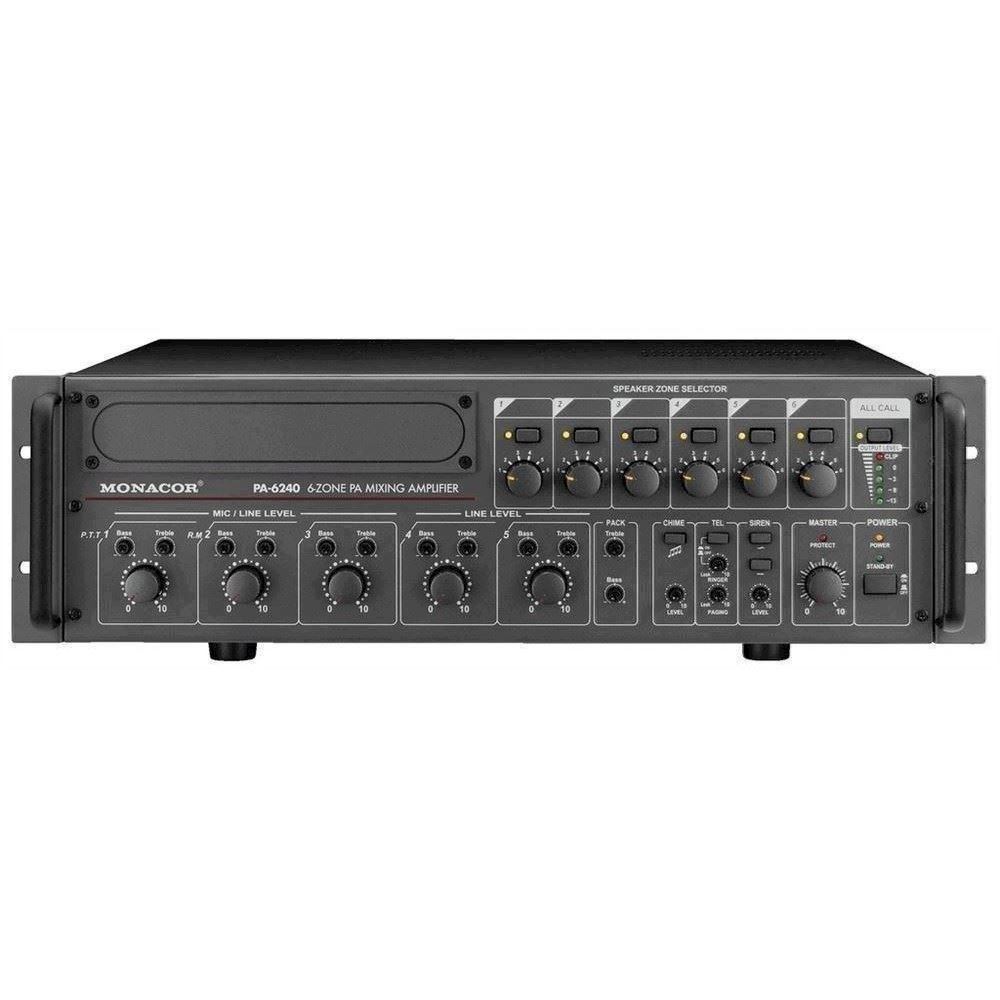

PA-forstærker - PA-6240 - MONACOR

6-zone PA mixing amplifiers, mono

1 x 240W_RMS (PA-6240)
6 zones, can be controlled individually

6-zone mono PA mixing amplifiers

1 x 240 W (PA-6240)
1 x 480 W (PA-6480)
1 x 600 W (PA-6600)
6 zones, can be controlled individually
Chime, continuous sound and wailing sound, automatic mute, 2-tone chime or 4-tone chime (selectable)
Bass, treble and master controls, level display via LEDs, regulated fan
Insertions for various functions are available at option
17 V phantom power for electret microphones
Connection for zone paging microphone PA-6000RC
1 insertion compartment at the front for automatic alarm message insertion PA-1120DMT, a tuner insertion or a CD player insertion, all available at option
3 insertion facilities on the rear panel for optional modules with the following features:
- PA-6FD: fault detection
- PA-6FM: fault monitoring
- PA-6FR: anti-feedback
Mains operation and 24 V emergency power operation
Removable mounting brackets

Channels	5
Zones	6
Power rating	240 W
Power rating at 2 Ω	-
Power rating at 4 Ω	-
Power rating at 8 Ω	-
Power rating at 100 V	-
Power rating with 4 Ω bridged operation	-
Power rating with 8 Ω bridged operation	-
Peak music power output (P_MAX)	340 W
Output impedance	-
Inputs	2.5 mV/5 kΩ, 0.3 V/5 kΩ (mic/line), 0.3 V/15 kΩ (line), 0,775 V/10 kΩ (preamplifier)
Attenuation factor	-
Frequency range	55-16,000 Hz
Crossover network	-
Crossover frequency	-
Integrated limiter	-
Equalizer bass	± 10 dB/100 Hz
Equalizer midrange	-
Equalizer treble	± 10 dB/10 kHz
S/N ratio	> 70 dBA (mix), > 80 dBA (line)
Crosstalk attenuation	-
THD	< 1%
Power supply	∼230 V/50 Hz/750 VA, DC current 24 V/20 A
Mains voltage	∼ 230 V
Mains frequency	50 Hz
Power consumption, operation	750 VA
Power consumption, standby	-
Standby current	-
Operating voltage (possible alternative)	DC current 24 V
Power supply (possible alternative)	DC current 20 A
Admiss. ambient temp.	0-40 °C
Dimensions	430 x 133 x 352 mm, 3 RS
Width	430 mm
Height	133 mm
Depth	352 mm
Rack spaces, RS	3
Weight	15 kg

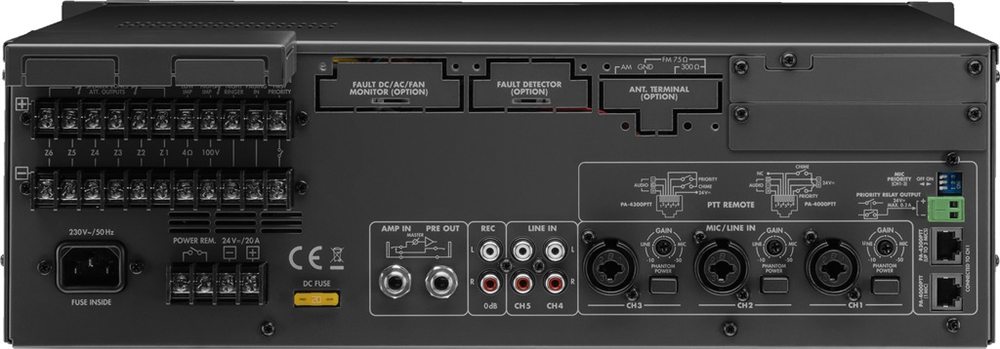

Connections	3 x combo 6.3 mm/XLR (mic/line), 2 x RCA L/R (line), 1 x 6.3 mm jack (preamplifier), 1 x RJ45 (push-to-talk mic), screw terminals (telephone system), screw terminals (speakers), 1 x 6.3 mm jack (ext. amplifier), 1 x RCA L/R (record)

Varenr.: 172180
