| Channels | 5 |
| Zones | 5 |
| Power rating | 480 W |
| Power rating at 2 Ω | - |
| Power rating at 4 Ω | - |
| Power rating at 8 Ω | 1 x 480 W |
| Power rating at 100 V | 480 W |
| Power rating with 4 Ω bridged operation | - |
| Power rating with 8 Ω bridged operation | - |
| Peak music power output (PMAX) | 680 W |
| Output impedance | - |
| Inputs | 2.5 mV/2 kΩ (mic 1),
2.5 mV/2 kΩ, 0.3 V/200 kΩ (mic/line 2-4),
0.3 V/5 kΩ (line 5-7),
0.775 V/10 kΩ (preamplifier) |
| Attenuation factor | - |
| Frequency range | 55-16,000 Hz |
| Crossover network | - |
| Crossover frequency | - |
| Integrated limiter | - |
| Equalizer bass | ± 10 dB/100 Hz |
| Equalizer midrange | - |
| Equalizer treble | ± 10 dB/10 kHz |
| S/N ratio | > 70 dB (mic),
> 80 dB (line) |
| Crosstalk attenuation | - |
| THD | < 1% |
| Power supply | ∼ 230 V/50 Hz/1,500 VA,
DC current 24 V/40 A |
| Mains voltage | ∼ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 1,500 VA |
| Power consumption, standby | - |
| Standby current | - |
| Operating voltage (possible alternative) | DC current 24 V |
| Power supply (possible alternative) | DC current 40 A |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 482 x 133 x 352 mm, 3 RS |
| Width | 482 mm |
| Height | 133 mm |
| Depth | 352 mm |
| Rack spaces, RS | 3 |
| Weight | 17 kg |

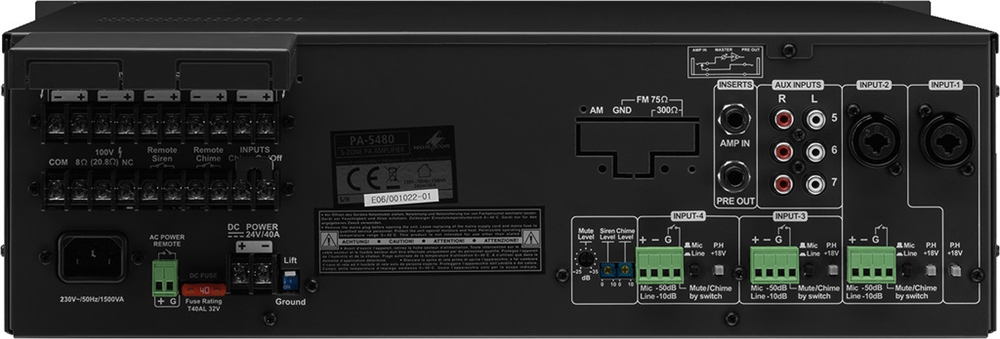

| Connections | 1 x 6.3 mm jack (mic),
2 x combo 6.3 mm/XLR (mic/line),
3 x RCA L/R (line),
Screw terminals (line),
1 x 6.3 mm jack (preamplifier input),
Screw terminal (push-to-talk mic),
Screw terminal (zone paging mic),
Screw terminals (speakers),
1 x 6.3 mm jack (preamplifier output),
Screw terminals (chime button) |
