| Channels | 5 |
| Zones | 4 |
| Power rating | 120 W |
| Power rating at 2 Ω | - |
| Power rating at 4 Ω | - |
| Power rating at 8 Ω | - |
| Power rating at 100 V | - |
| Power rating with 4 Ω bridged operation | - |
| Power rating with 8 Ω bridged operation | - |
| Peak music power output (PMAX) | 170 W |
| Output impedance | - |
| Inputs | 1.5 mV/600 Ω (mic),
150 mV/47 kΩ (line),
1 mV/47 kΩ (phono) |
| Attenuation factor | - |
| Frequency range | 80-15,000 Hz |
| Crossover network | - |
| Crossover frequency | - |
| Integrated limiter | - |
| Equalizer bass | ± 10 dB/100 Hz |
| Equalizer midrange | - |
| Equalizer treble | ± 10 dB/10 kHz |
| S/N ratio | > 60 dB (mic),
> 70 dB (line) |
| Crosstalk attenuation | - |
| THD | < 1% |
| Power supply | ∼ 230 V/50 Hz/280 VA,
DC current 24 V/11 A |
| Mains voltage | ∼ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 280 VA |
| Power consumption, standby | - |
| Standby current | - |
| Operating voltage (possible alternative) | DC current 24 V |
| Power supply (possible alternative) | DC current 11 A |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 420 x 122 x 350 mm |
| Width | 420 mm |
| Height | 122 mm |
| Depth | 350 mm |
| Rack spaces, RS | - |
| Weight | 12.2 kg |

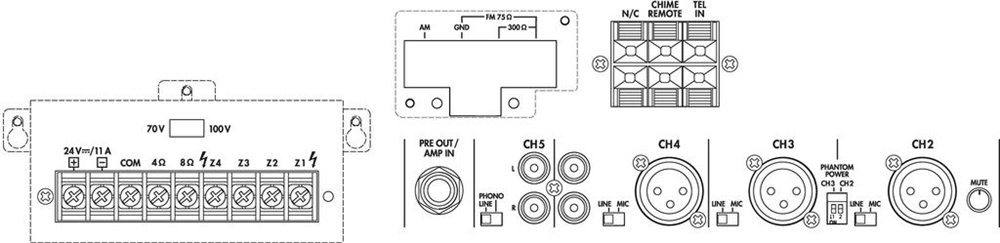

| Connections | 1 x 6.3 mm jack (mic input),
3 x XLR, bal. (mic/line inputs),
1 x RCA L + R (line input),
1 x RCA L + R (phono/line input),
1 x twin spring-loaded terminal (telephone input),
1 x twin spring-loaded terminal (tuner output),
1 x twin spring-loaded terminal (chime button),
7 x screw terminal (speakers) |
