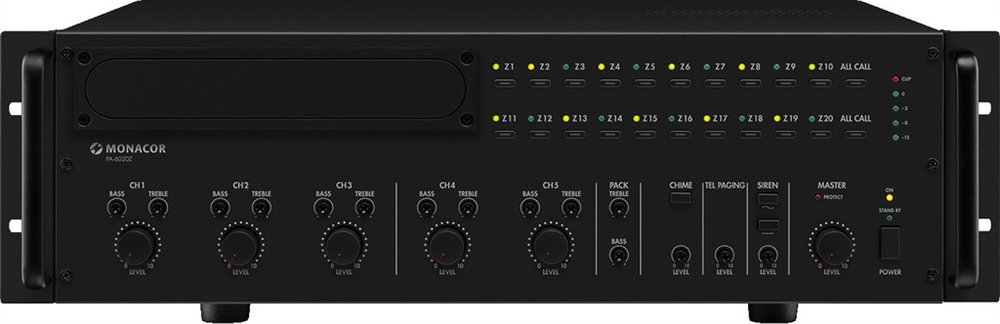

PA-forstærker 20 zoner - PA-6020Z

PA-forstærker 20 zoner - PA-6020Z
  • Ikke på lager
  • Forventes uge 16
  • Bedømmelse for PA-forstærker 20 zoner - PA-6020Z
    Produktet er endnu ikke bedømt
  •
    10.599,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner




20-zone mono PA mixing amplifier
  • 1 x 600 W
  • 20 zones, can be controlled individually
  • 3 inputs microphone/line via comb. jacks
  • 2 inputs stereo line via RCA jacks
  • Chime, continuous sound and wailing sound, automatic mute, 2-tone chime or 4-tone chime (selectable)
  • Bass, treble and master controls, LEDs for indicating signal/clip, regulated fan
  • Insertions for various functions are available at option
  • 15 V phantom power for electret microphones
  • Connection for up to 3 zone paging microphones PA-2400RC
  • Connection for up to 3 push-to-talk microphones PA-4300PTT
  • Alarm announcement with insertion PA-1120DMT (available at option)
  • Mains operation and 24 V emergency power operation
  • Removable mounting brackets



Peak output power-
Power rating600 W
Power rating at 2 Ω-
Power rating at 4 Ω-
Power rating at 8 Ω-
Power rating at 16 Ω-
Power rating at 100 V600 W
Power rating with 4 Ω bridged operation-
Power rating with 8 Ω bridged operation-
Output impedance-
Channels5
Zones20
Inputs2.5 mV/5 kΩ, 0.3 V/5 kΩ (mic/line 1-3),

0.3 V/15 kΩ (line 4-5),

0.775 V/100 kΩ (preamplifier)

Attenuation factor-
Frequency range55-16,000 Hz
Crossover network-
Crossover frequency-
Integrated limiter-
Equalizer bass±10 dB/100 Hz
Equalizer midrange-
Equalizer treble±10 dB/10 kHz
S/N ratio> 70 dB (mic),

> 80 dB (line)

Crosstalk attenuation-
THD< 1%
Phantom power15 V
Mains voltage∼ 230 V
Mains frequency50 Hz
Power consumption, operation1,700 VA
Power consumption, standby-
Standby current-
Operating voltage (possible alternative)DC 24 V
Power supply (possible alternative)DC 50 A
Admiss. ambient temp.0-40 °C
Width482 mm
Height133 mm
Depth352 mm
Rack spaces, RS3
Weight21 kg

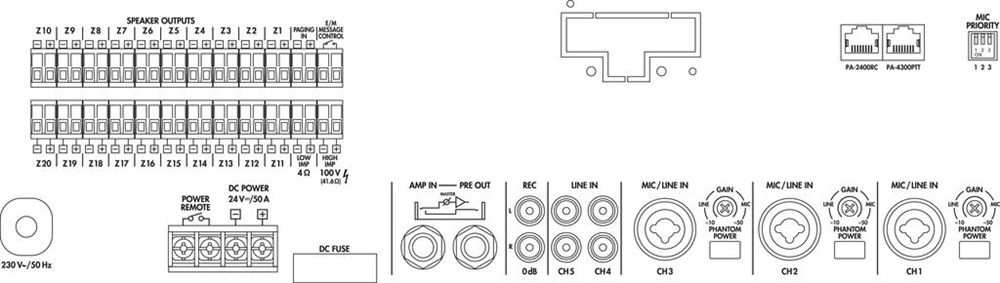

Connections3 x comb. 6.3 mm/XLR (mic/line),

2 x RCA L/R (line),

1 x 6.3 mm jack (preamplfier input),

1 x RJ45 (push-to-talk mic),

1 x RJ45 (zone paging mic),

screw terminals (speakers),

1 x RCA L/R (record output)

1 x 6.3 mm jack (preampli

Varenr.: 1000126
