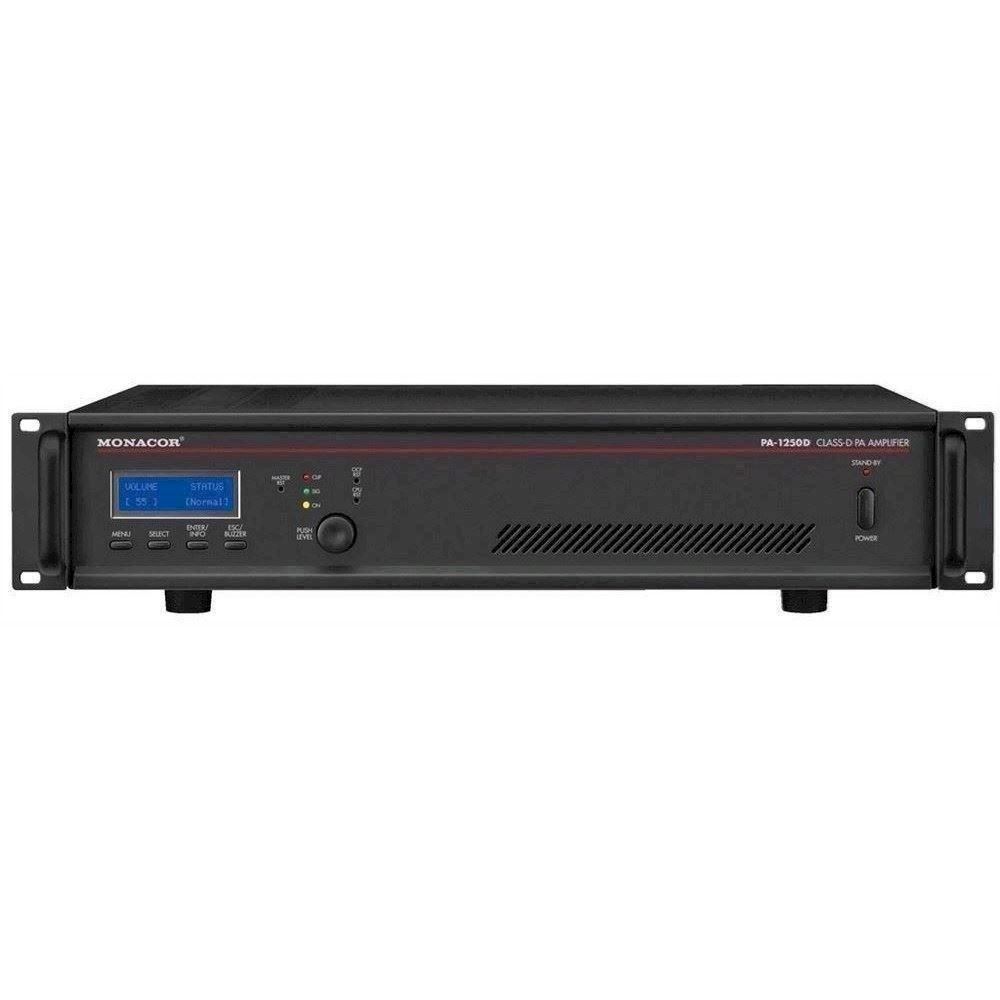

PA-forst. digital 1x250Wrms - PA-1250D

På lager
På lager, 2-4 Hverdage
Bedømmelse for PA-forst. digital 1x250Wrms - PA-1250D
Produktet er endnu ikke bedømt

6.179,00DKK ved 1 stk.

Powerful and Energy-saving
The mono class D PA power amplifier PA-1250D is part of a new generation of equipment which combines a high power capability with an efficient energy utilisation, thus making an important contribution to climate protection. Furthermore, the user also saves electricity costs. Among other things, this is due to the digital 100V power amplifier providing a considerably higher efficiency of more than 90% compared to analogue units (approx. 70%). Furthermore, the thermal loss is considerably lower. Thus, the cooling requirements will be minimised and the service life of the PA-1250D will be further increased.

Mono class D PA power amplifier, with an energy-saving effect.

1 x 250 W
Class D concept with a high efficiency of more than 90% to cut energy costs
Additional integrated energy-saving functions, e.g. device automatically goes to standby mode when no input signal is present (as soon as an input signal is detected, the amplifier is automatically switched on again)
Requires a significantly lower rechargeable battery capacity for emergency power operation than 100 V analogue amplifiers
Clearly reduced cooling requirements due to low heat dispersion
Silent operation due to fanless cooling concept, thus especially suitable for noise-sensitive areas, e.g. offices, conference rooms or churches
Special protective circuits prevent damage caused by short circuit or overheating
Extensive, menu-controlled settings
Switchable 200 Hz high-pass filter, 6 dB/oct.
Additional priority input
LCD for the operating parameters
Mains operation or 24 V emergency power operation

Channels	1
Zones	-
Power rating	250 W
Power rating at 2 Ω	-
Power rating at 4 Ω	-
Power rating at 8 Ω	-
Power rating at 100 V	1 x 250 W
Power rating with 4 Ω bridged operation	-
Power rating with 8 Ω bridged operation	-
Peak music power output (P_MAX)	350 W
Output impedance	100 V/40 Ω
Inputs	1.2 V, bal. (line)
Attenuation factor	-
Frequency range	50-18,000 Hz, ±3 dB
Crossover network	high-pass filter: 200 Hz, 6 dB/oct.
Crossover frequency	-
Integrated limiter	-
Equalizer bass	-
Equalizer midrange	-
Equalizer treble	-
S/N ratio	> 100 dB, A-weighted
Crosstalk attenuation	-
THD	< 0.5%
Power supply	∼ 230 V/50 Hz/350 VA, 8 W (standby mode), DC current 24 V/20 A, 280 mA (standby mode)
Mains voltage	∼ 230 V
Mains frequency	50 Hz
Power consumption, operation	350 VA
Power consumption, standby	-
Standby current	-
Operating voltage (possible alternative)	DC current 24 V
Power supply (possible alternative)	DC current 20 A
Admiss. ambient temp.	0-40 °C
Dimensions	482 x 88 x 410 mm, 2 RS
Width	482 mm
Height	88 mm
Depth	410 mm
Rack spaces, RS	2
Weight	7.5 kg

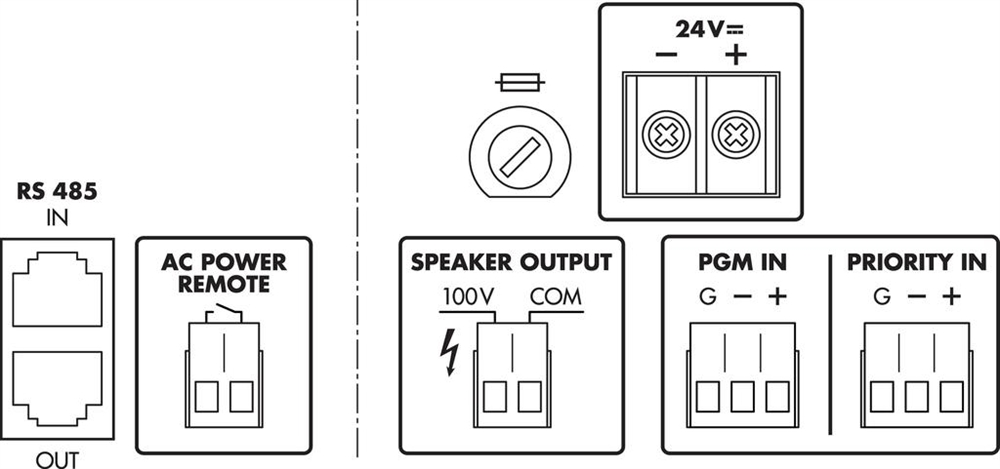

Connections	screw terminals (inputs) screw terminals (speakers)

Varenr.: 173860
