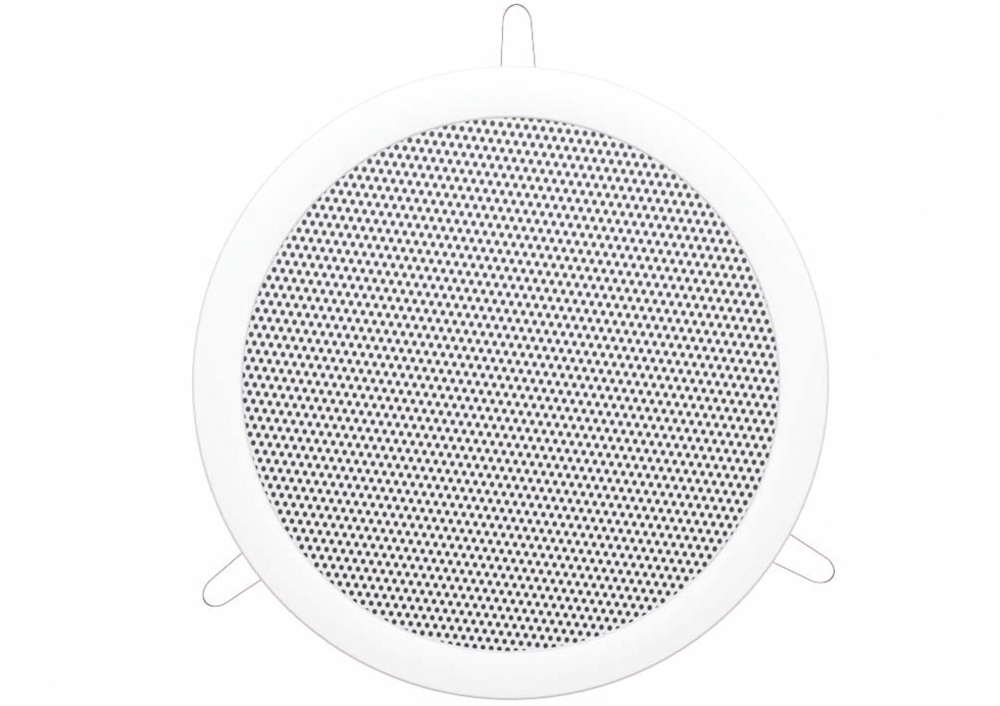

Technical specifications WDR-245-10
| WDR-245-10 |
|---|
| Transmission technology |
100 V
|
| Frequency range |
50-18,000 Hz
|
| Power rating (RMS) |
10/5/2.5 W
|
| SPL |
98 dB/W/m
|
| Max. rated SPL |
108 dB
|
| Radiation angle, horizontal |
150°
|
| Radiation angle, vertical |
150°
|
| Mounting cutout |
Ø 215-230 mm
|
| Dimensions |
Ø 252 mm x 82 mm
|
| Outside diameter |
Ø 252 mm
|
| Width |
Ø 252 mm
|
| Height |
Ø 252 mm
|
| Depth |
82 mm
|
| Colour |
white, RAL 9010
|
| Weight |
1.5 kg
|
| Packing unit |
1
|
| Type of speaker |
200
|
| Packaging dimensions (W x H x L) |
0.27 x 0.27 x 0.115 m
|
| Gross weight |
1.5 kg
|
| Net weight |
1.4 kg
|
| |
| WDR-245-10 |
|---|
| EAN code |
4007754429718
|
| Net weight |
1.4 kg
|
| |
