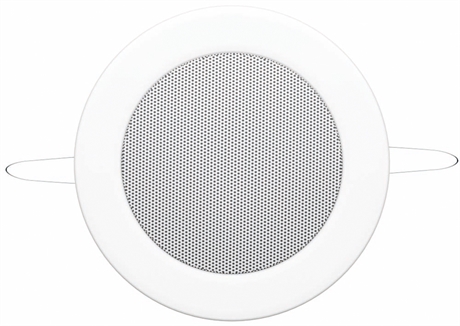

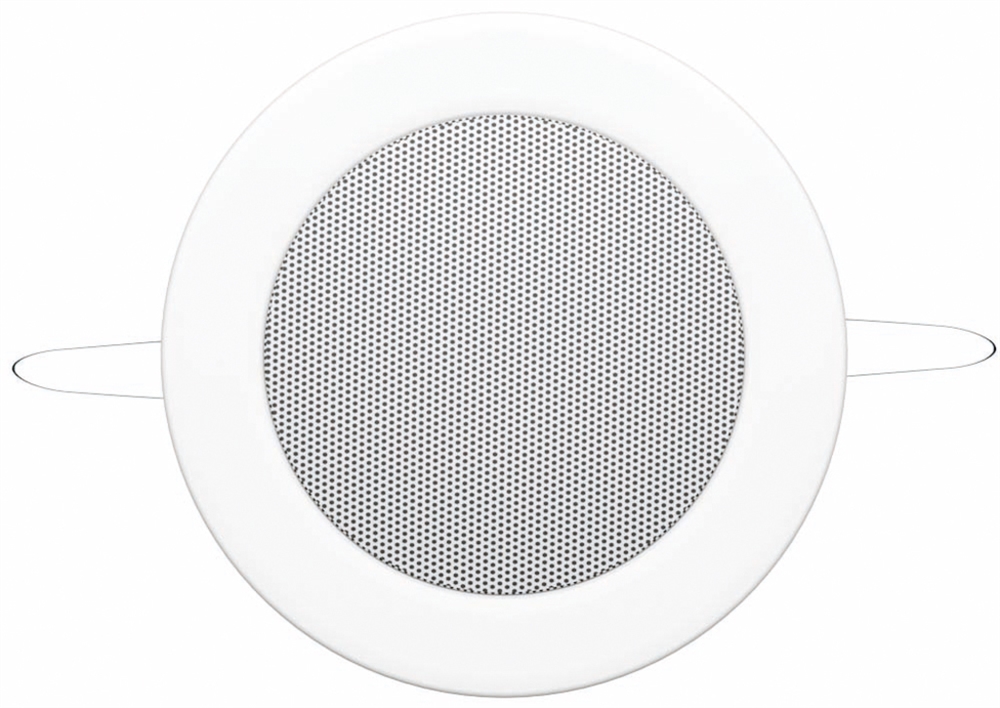

Technical specifications WDR-100-N
| WDR-100-N |
|---|
| Impedance (Z) |
4 Ω
|
| Transmission technology |
cable
|
| Frequency range |
80-18,500 Hz
|
| Power rating (RMS) |
10 W
|
| SPL |
90 dB/W/m
|
| Max. rated SPL |
99 dB
|
| Radiation angle, horizontal |
180°
|
| Radiation angle, vertical |
180°
|
| Mounting cutout |
Ø 74-85 mm
|
| Dimensions |
Ø 101 mm x 50 mm
|
| Outside diameter |
Ø 101 mm
|
| Width |
Ø 101 mm
|
| Height |
Ø 101 mm
|
| Depth |
50 mm
|
| Colour |
white, RAL 9010
|
| Weight |
0.4 kg
|
| Packing unit |
1
|
| Packaging dimensions (W x H x L) |
0.11 x 0.12 x 0.08 m
|
| Gross weight |
0.5 kg
|
| Net weight |
0.4 kg
|
| |
| WDR-100-N |
|---|
| EAN code |
4007754429749
|
| Net weight |
0.4 kg
|
| |
