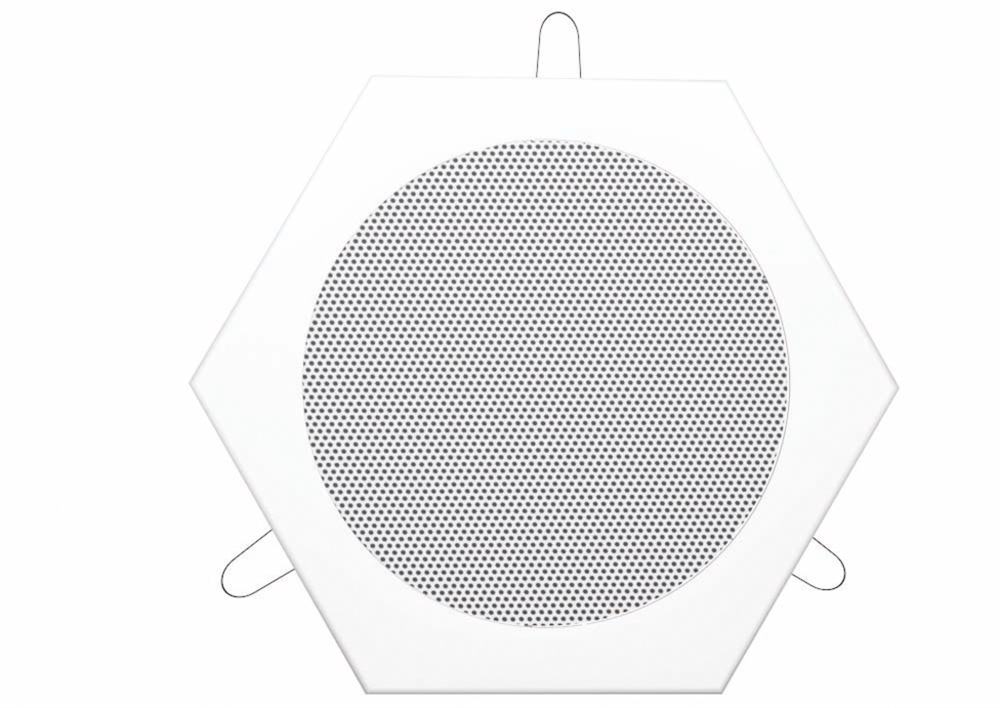

Technical specifications WDE-130-N
| WDE-130-N |
|---|
| Impedance (Z) |
4 Ω
|
| Transmission technology |
cable
|
| Frequency range |
60-20,000 Hz
|
| Power rating (RMS) |
15 W
|
| SPL |
94 dB/W/m
|
| Max. rated SPL |
105 dB
|
| Radiation angle, horizontal |
180°
|
| Radiation angle, vertical |
180°
|
| Mounting cutout |
Ø 140-150 mm
|
| Dimensions |
Ø 168 mm x 48 mm
|
| Outside diameter |
Ø 168 mm
|
| Width |
Ø 168 mm
|
| Height |
Ø 168 mm
|
| Depth |
48 mm
|
| Colour |
white, RAL 9010
|
| Protective class |
IP54
|
| Weight |
0.6 kg
|
| Packing unit |
1
|
| Packaging dimensions (W x H x L) |
0.187 x 0.187 x 0.075 m
|
| Gross weight |
0.8 kg
|
| Net weight |
0.7 kg
|
| |
| WDE-130-N |
|---|
| EAN code |
4007754429701
|
| Net weight |
0.7 kg
|
| |
