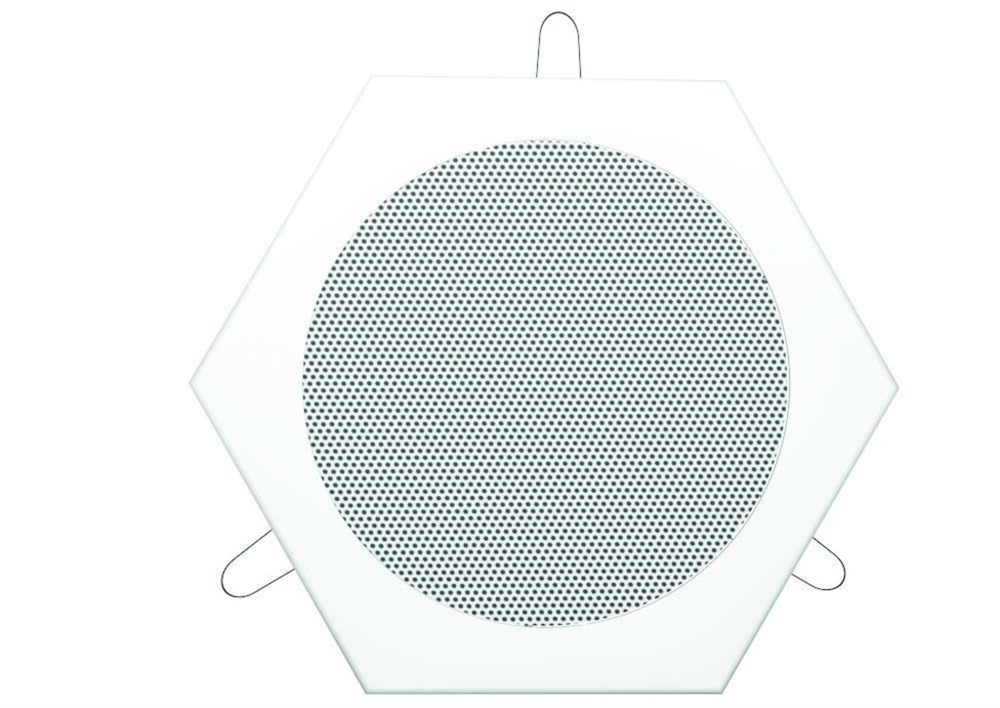

Technical specifications WDE-130-10
| WDE-130-10 |
|---|
| Transmission technology |
100 V
|
| Frequency range |
70-19,000 Hz
|
| Power rating (RMS) |
10/5/2.5 W
|
| SPL |
93 dB/W/m
|
| Max. rated SPL |
103 dB
|
| Radiation angle, horizontal |
180°
|
| Radiation angle, vertical |
180°
|
| Mounting cutout |
Ø 140-150 mm
|
| Dimensions |
Ø 168 mm x 62 mm
|
| Outside diameter |
Ø 168 mm
|
| Width |
Ø 168 mm
|
| Height |
Ø 168 mm
|
| Depth |
62 mm
|
| Colour |
white, RAL 9010
|
| Protective class |
IP54
|
| Weight |
0.95 kg
|
| Packing unit |
1
|
| Packaging dimensions (W x H x L) |
0.187 x 0.187 x 0.075 m
|
| Gross weight |
1 kg
|
| Net weight |
0.9 kg
|
| |
| WDE-130-10 |
|---|
| EAN code |
4007754429695
|
| Net weight |
0.9 kg
|
| |
