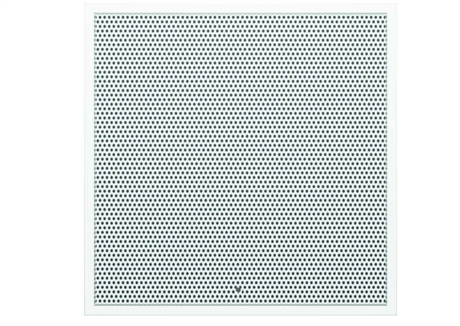

Technical specifications E-130-10
| E-130-10 |
|---|
| Transmission technology |
100 V
|
| Frequency range |
70-19,000 Hz
|
| Power rating (RMS) |
10/5/2.5 W
|
| SPL |
93 dB/W/m
|
| Max. rated SPL |
103 dB
|
| Radiation angle, horizontal |
180°
|
| Radiation angle, vertical |
180°
|
| Mounting cutout |
233 x 233 mm
|
| Dimensions |
248 x 248 x 48 mm
|
| Width |
248 mm
|
| Height |
248 mm
|
| Depth |
48 mm
|
| Colour |
White, RAL 9010
|
| Weight |
1.2 kg
|
| Packing unit |
1
|
| Type of speaker |
130
|
| Packaging dimensions (W x H x L) |
0.25 x 0.25 x 0.107 m
|
| Gross weight |
1.2 kg
|
| Net weight |
1.1 kg
|
| |
| E-130-10 |
|---|
| EAN code |
4007754429763
|
| Net weight |
1.1 kg
|
| |
