| Transmission technology |
100 V
|
| Frequency range |
90-18,000 Hz
|
| Power rating (RMS) |
8 W
|
| SPL |
90 dB/W/m
|
| Max. rated SPL |
99 dB
|
| Radiation angle, horizontal |
90°
|
| Radiation angle, vertical |
90°
|
| Voice coil diameter |
Ø 20 mm
|

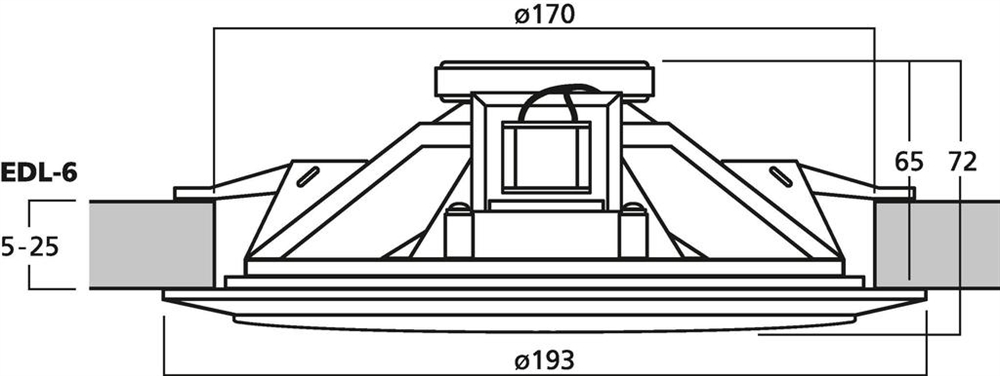

| Mounting cutout |
Ø 170 mm
|
| Mounting depth |
65 mm
|
| Dimensions |
Ø 193 mm x 72 mm
|
| Outside diameter |
Ø 193 mm
|
| Width |
Ø 193 mm
|
| Depth |
72 mm
|
| Colour |
white
|
| Admiss. ambient temp. |
0-40 °C
|
| Weight |
476 g
|
| Packing unit |
1
|
| Type of speaker |
150
|
| Packaging dimensions (W x H x L) |
0.075 x 0.19 x 0.196 m
|
| Gross weight |
0.542 kg
|
| Net weight |
0.476 kg
|
