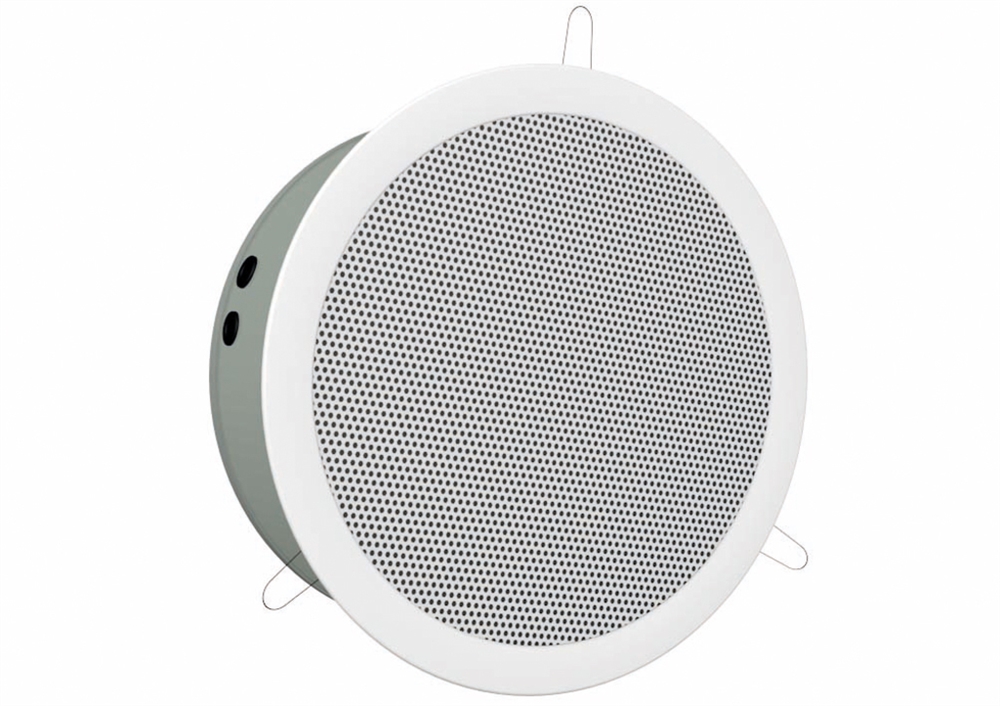

PA A/B ceiling loudspeaker - WDR-245-A/B-F-EN-10

PA A/B ceiling loudspeaker - WDR-245-A/B-F-EN-10
  • På lager
  • På lager, 2-4 dage
  • Bedømmelse for PA A/B ceiling loudspeaker - WDR-245-A/B-F-EN-10
    Produktet er endnu ikke bedømt


Indhent tilbud.Vis uden moms

Billigst på PriceRunner

Trustpilot


PA A/B ceiling loudspeaker
with EN 54-24 certification with A/B loudspeaker distribution in accordance with EN 60849 and DIN VDE 0833-4.
  • 100 V transmission technology
  • 2 independent speaker systems
  • 2 separate full-range speakers (10 cm) with very high efficiency and high maximum volume
  • Metal housing with metal protective grille
  • Fire pot
  • Quick mounting device
  • 3 power taps via WAGO terminals
  • Ball impact safety test according to DIN 18 032, part 3
Technical specifications WDR-245-A/B-F-EN-10
WDR-245-A/B-F-EN-10
Transmission technology 100 V
Frequency range 80-20,000 Hz
Power rating (RMS) 2 x 10/5/2.5 W
SPL 2 x 92 dB (1 W/1 m)

76 dB (EN, 1 W/4 m)

Max. rated SPL 2 x 102 dB (1 m)

87 dB (EN, 4 m)

Radiation angle, horizontal 180° (500 Hz)

180° (1 kHz)

160° (2 kHz)

80° (4 kHz)

Radiation angle, vertical 180° (500 Hz)

180° (1 kHz)

160° (2 kHz)

80° (4 kHz)

Mounting cutout Ø 230 mm
Dimensions Ø 252 mm x 105 mm
Outside diameter Ø 252 mm
Width Ø 252 mm
Height Ø 252 mm
Depth 105 mm
Colour White, RAL 9010
Weight 1.7 kg
Packing unit 1
Type of speaker 200
Packaging dimensions (W x H x L) 0.27 x 0.27 x 0.115 m
Gross weight 1.7 kg
Net weight 1.6 kg
WDR-245-A/B-F-EN-10
EAN code 4007754429558
Net weight 1.6 kg
Varenr.: 1001420
