| Power supply: | 230 V AC, 50 Hz |
| Power consumption: | 1440 W |
| Protection class: | Protection class I |
| Output power: | 6 x 200 W RMS (4 ohms)
6 x 150 W RMS (8 ohms) |
| Power connection: | Mains input via P-Con (blue), mounting version power supply cord with safety plug (provided) |
| Frequency range: | 20 - 20000 Hz |
| S/N ratio: | >100 dB |
| THD: | <0,05 % at 1 kHz |
| Impedance: | Input: 20 kOhm , bal.
Input: 10 kOhm , unbal. |
| Circuitry: | Class D |
| Control elements: | Power switch, level control per channel |
| Controls: | Softstart; overheat; overload; short-circuit; DC voltage |
| Status LED: | Power, signal, clip |

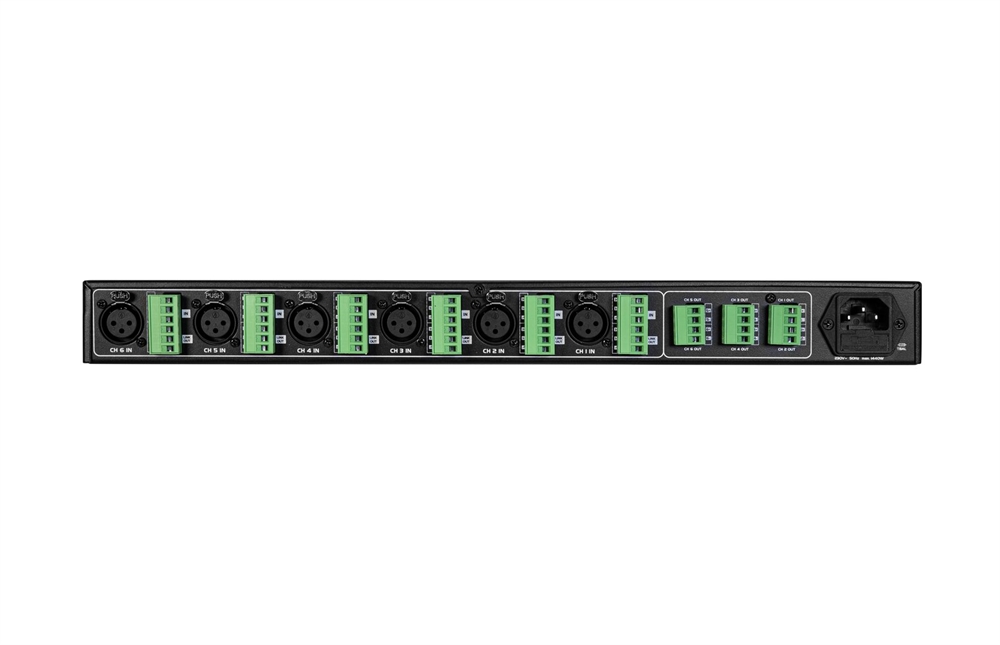

| Connections: | Input: line via 4 x 3-pin XLR
Output: line via 4 x 3-pin XLR
Output: speaker via 4 x screw plug-in terminal
Input: 4 x screw plug-in terminal |
| Housing design: | (19") 48.3 cm rack installation 1 U |
| Dimensions: | Width: 48,3 cm
Depth: 20,5 cm
Height: 4,4 cm |
| Weight: | 3,75 kg |
