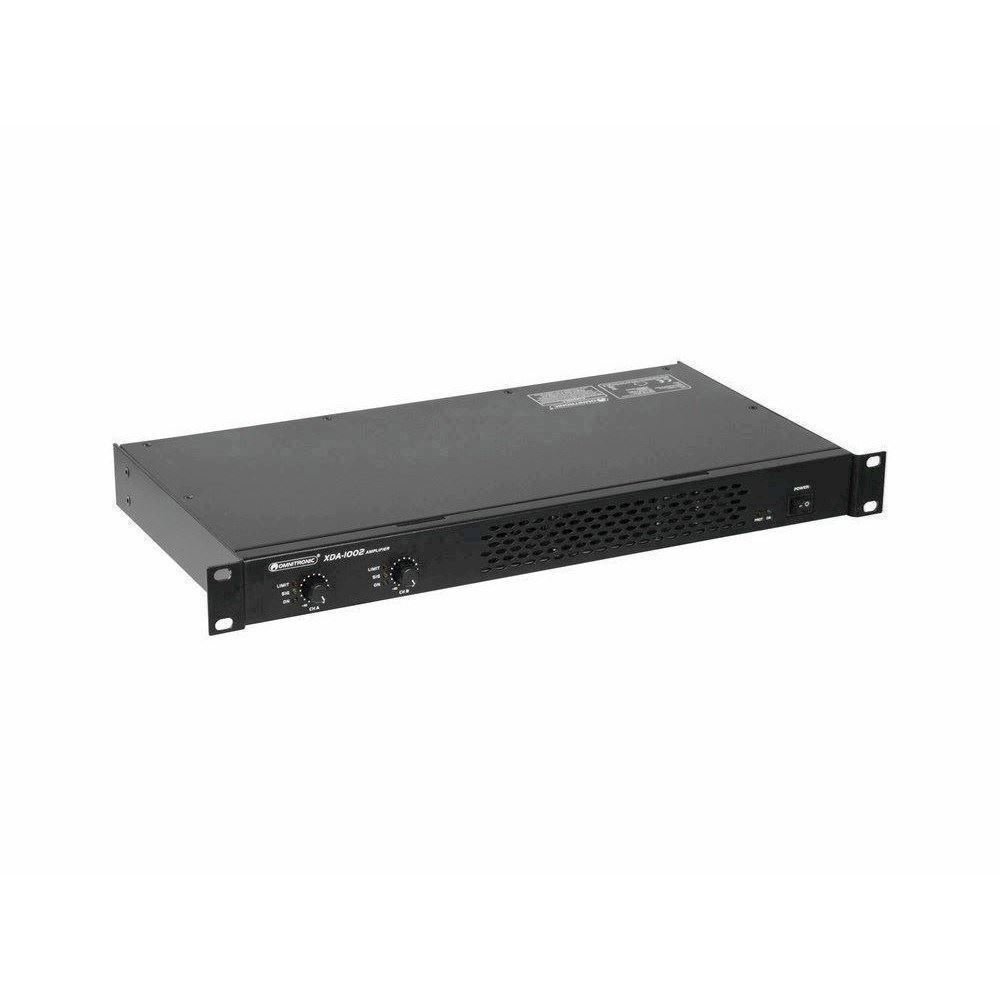

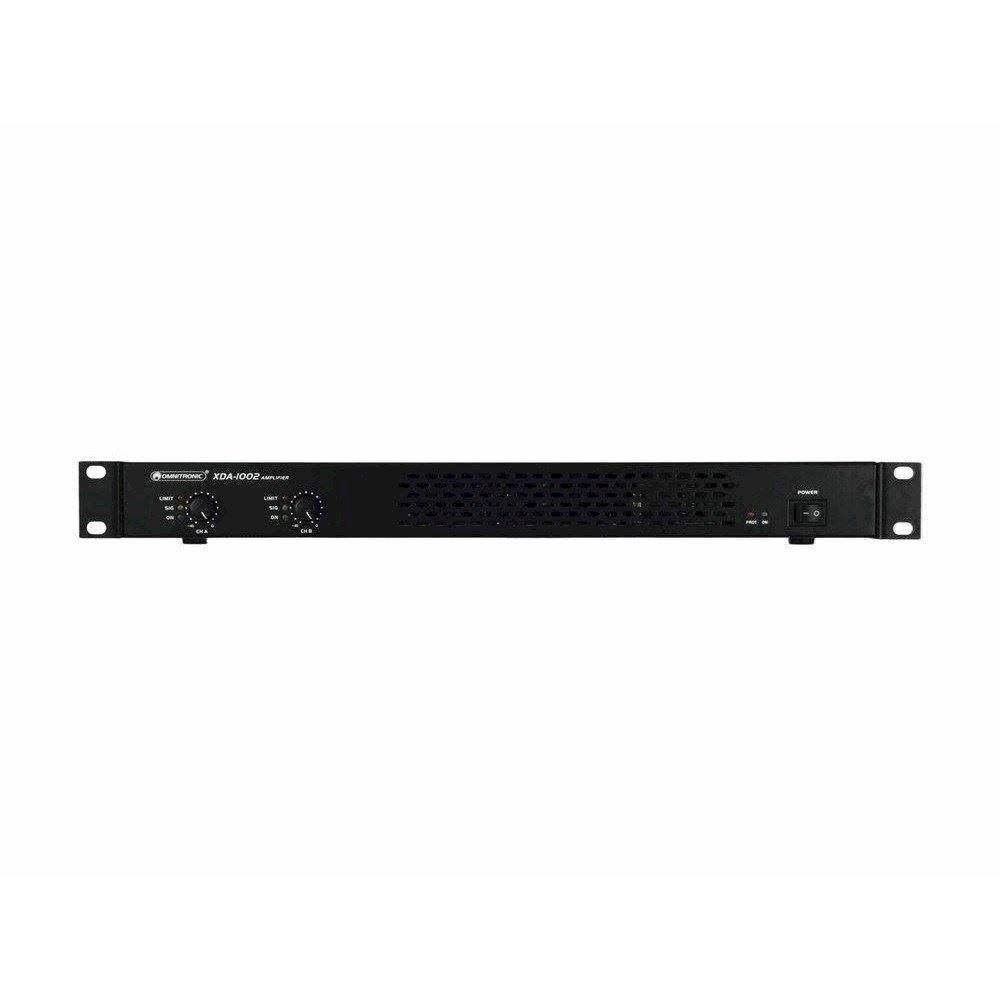

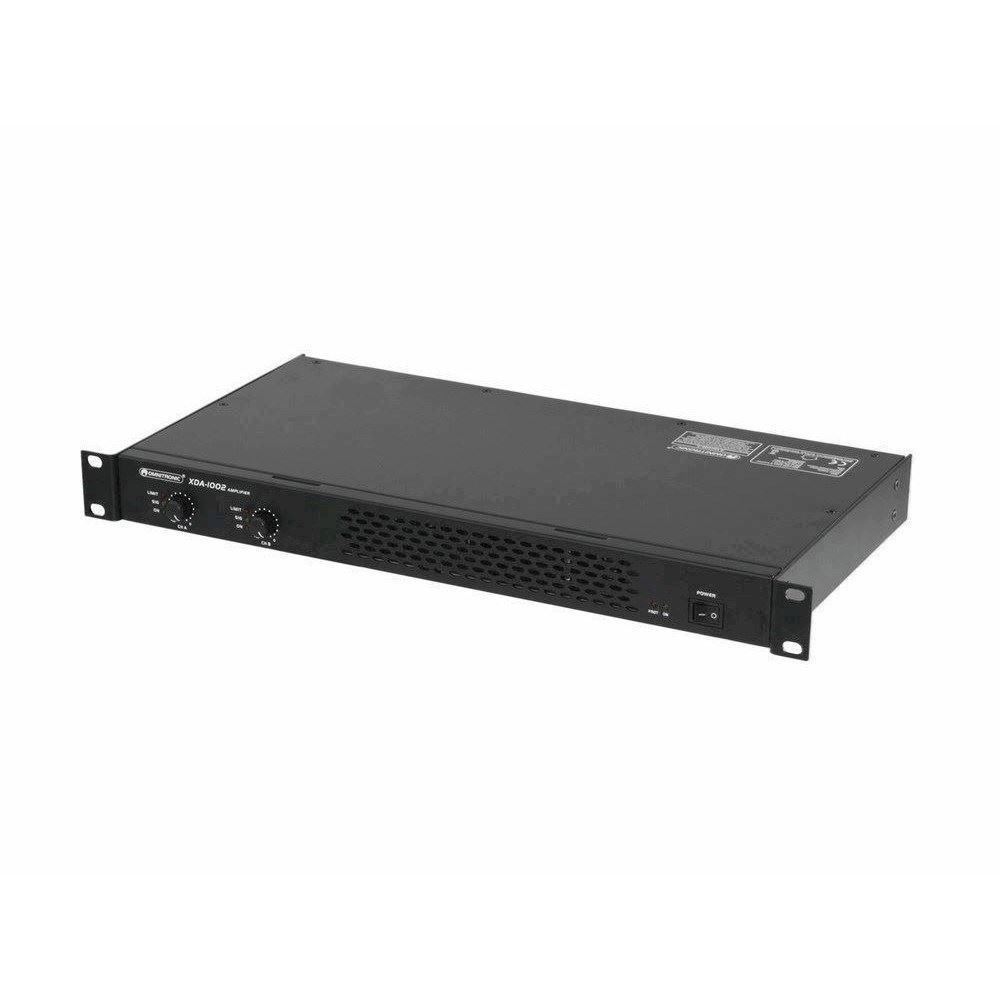

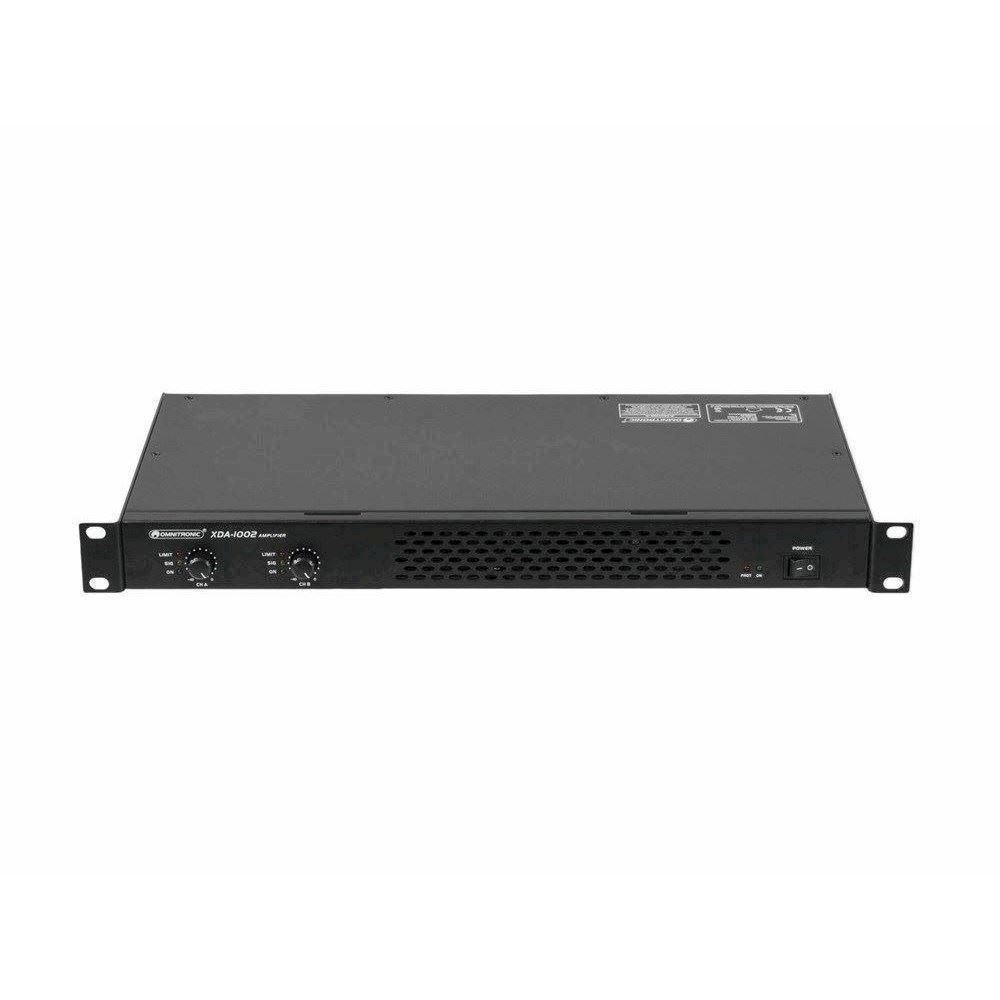

OMNITRONIC XDA-1002 Class D Amplifier with SMPS, 2 x 510 W / 4 ohms, 2 x 300 W / 8 ohms

På lager
På lager, 3-5 hverdage
Bedømmelse for OMNITRONIC XDA-1002 Class D Amplifier with SMPS, 2 x 510 W / 4 ohms, 2 x 300 W / 8 ohms
Produktet er endnu ikke bedømt

Stereo PA amplifier with SMPS, 2 x 510 W / 4 ohms, 2 x 300 W / 8 ohms

Stereo PA amplifier with class D circuitry
Low weight and height due to integrated switch mode power supply
Speaker switch-on delay and auto limiters
2 operating modes can be selected (stereo or bridged)
2 level controls
LEDs for activated protective circuit, limiter, signal, and power
Complete protection set against short-circuit, overheat, DC voltage, power on/off transients, soft start
Ground lift switch against humming
Fan cooling
Electronically balanced inputs via XLR mounting jacks with feed-through output
Speaker outputs via lockable speaker jacks
Rack installation with 1 unit

Power supply:	230 V AC, 50 Hz
Power output (RMS):
stereo 4 ohms	2 x 510 W
stereo 8 ohms	2 x 300 W
8 ohms bridged	1 x 1000 W
Distortion factor:	<0.02 %
Voltage gain:	36 dB at 8 ohms
S/N ratio:	>100 dB
Input impedance:	20 kohms (balanced), 10 kohms (unbalanced)
Input sensitivity:	1.25 V RMS

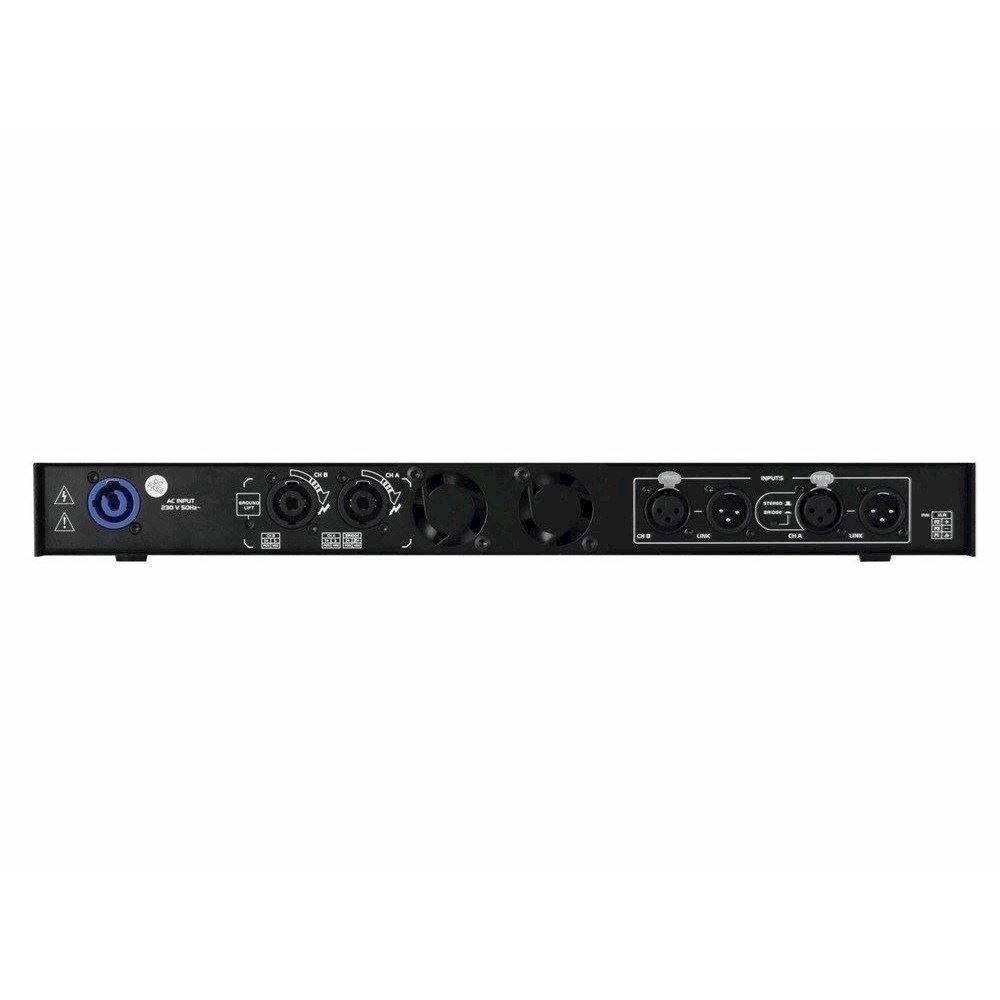

Input connectors:	2 x XLR
Output connectors:	2 x Speaker, 2 x XLR feed-through output
Circuitry:	class D
Control elements:	power switch, level control per channel, mode switch (stereo/bridged), ground lift switch
LED indicators:	Protect, limit, signal, power
Protection circuits:	Short-circuit, overheat, DC voltage, power on/off
	transients, softstart
Construction:	steel chassis
Dimensions (DxWxH):	240 x 483 x 44 mm (19", 1 U)
Weight:	4 kg
Power consumption:	210 1/8 power W
Power/channel (8 Ohm):	300
Power/channel (4 Ohm):	510
Frequency range:	30 - 20000 Hz
Height:	4,45 cm
Depths:	24 cm
Width:	48,3 cm

Varenr.: E-10451635
