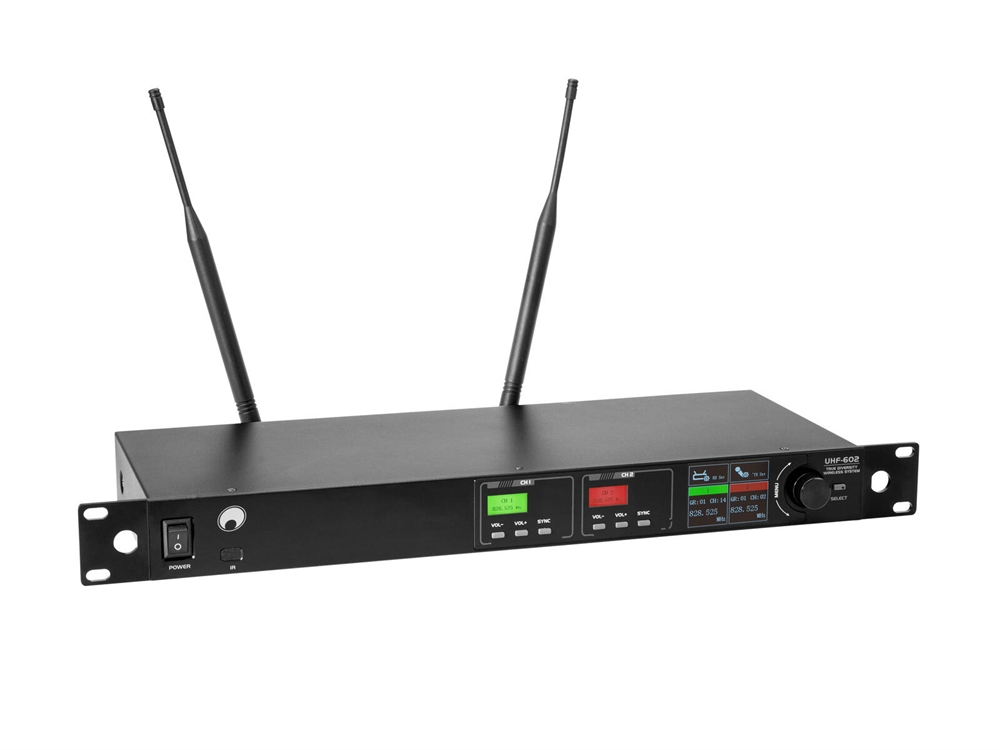

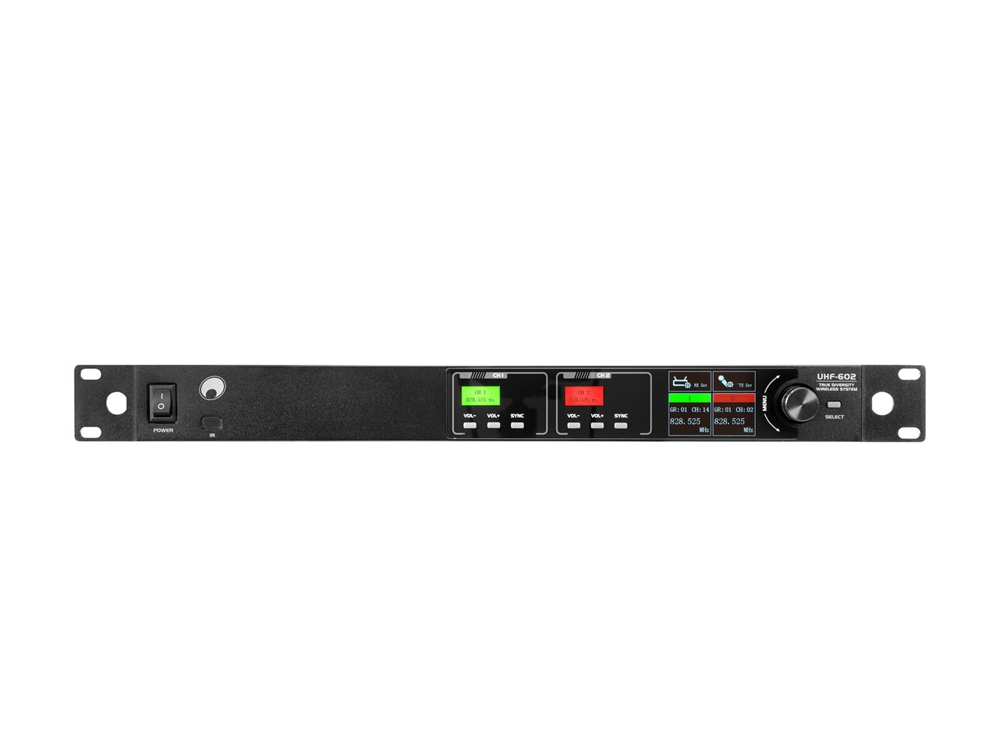

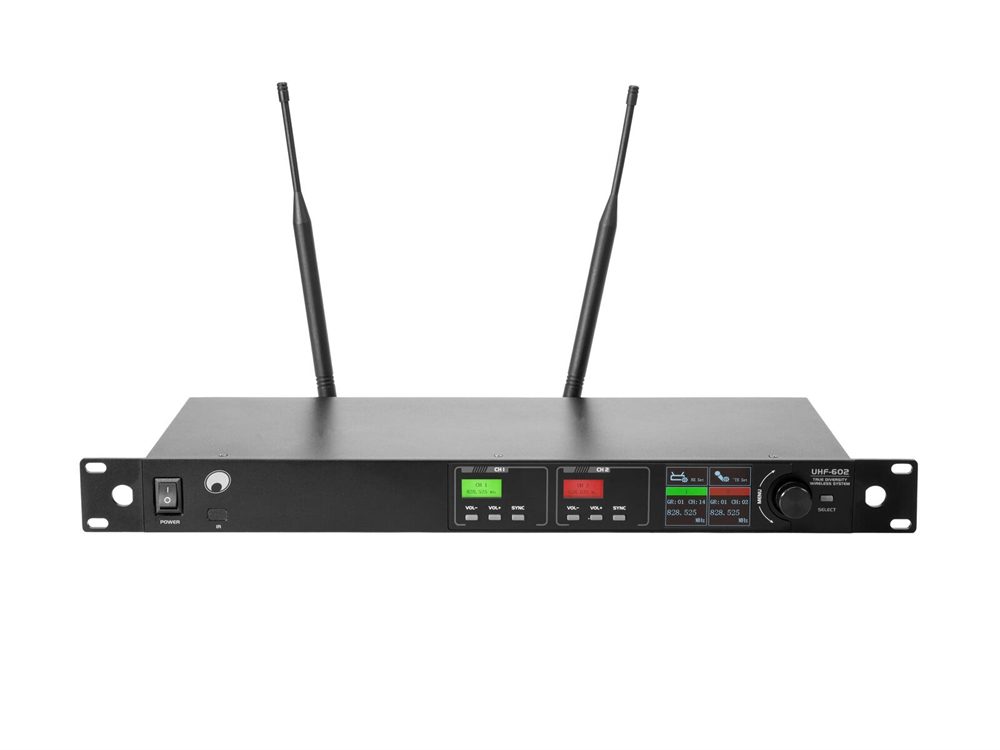

OMNITRONIC UHF-602 2-channel Wireless Mic System 823-832/863-865 MHz

På lager
På lager, 3-5 hverdage
Bedømmelse for OMNITRONIC UHF-602 2-channel Wireless Mic System 823-832/863-865 MHz
Produktet er endnu ikke bedømt

2.349,00DKK ved 1 stk.

Vis uden moms

True diversity wireless system with auto scan, 7-band EQ and TFT color displays

OMNITRONIC UHF-602 2-channel Wireless Mic System 823-832/863-865 MHz

True diversity wireless system with auto scan, 7-band EQ and TFT color displays

Multifrequency wireless receiver with high-quality true diversity reception
Ideal for large multi-channel systems
Operating range up to 60m with line-of-sight
UHF 823 - 832 MHz License-free and approved in large parts of Europe
UHF 863 - 865 MHz License-free and approved in Europe
Up to 24 transmitters in 2 bands can be operated in parallel without interference

receiver

Automatic frequency setup
ID transmitter verification prevents incorrect use and interference from external radio transmitters
Different user colors selectable for easy differentiation
7-band equalizer for sound tuning
Lock function for prevents undesired changes to settings
Multifunctional jogdial for menu settings
(19") 48.3 cm rack installation 1 U
Ultra-low latency
Multicolor TFT display

microphone

Polar pattern: Cardioid
Multicolor LCD display
Charge status indicator

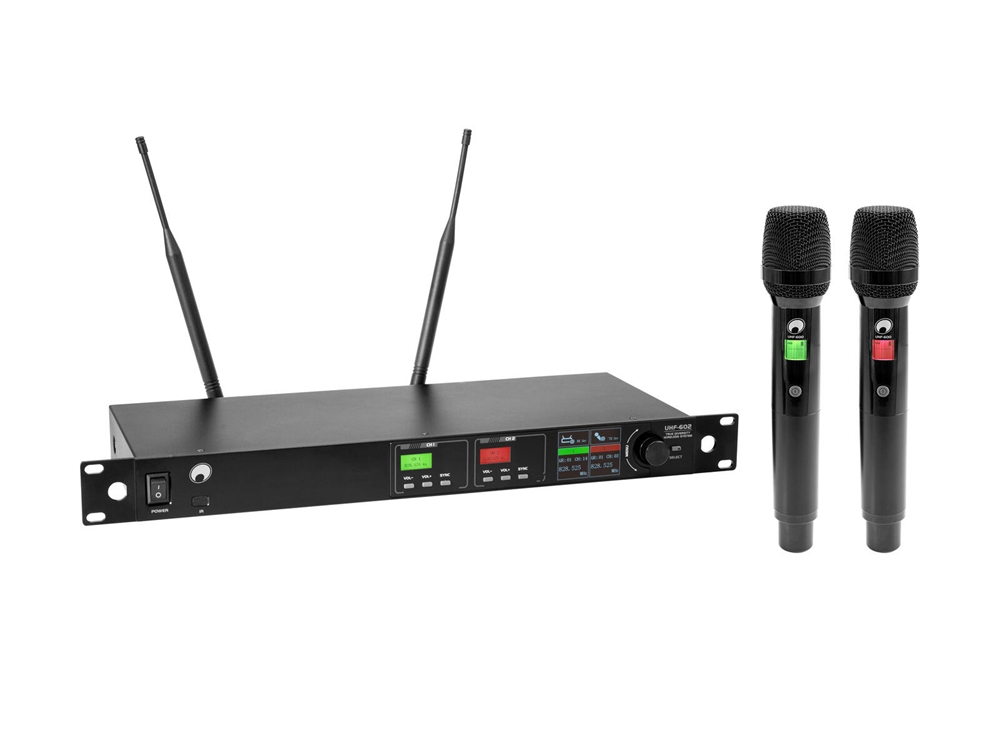

Package contents

1 x receiver, 2 x antenna, 1 x external mains adapter, 1 x jack cable, 2 x microphone, 2 x holder

Type:	Wireless set
Range:	Range up to 60m with line-of-sight
Frequency band:	UHF 823 - 832 MHz; UHF 863 - 865 MHz
Switching bandwidth:	13 MHz
Parallel mode:	Max. 24 transmitter in 2 bands
Frequency selection:	Frequencies automatically scannable
Weight:	2,20 kg
Receiver
Power supply:	100-240 V AC, 50/60 Hz 12V DC 1000 mA
Power consumption:	6 W
Protection class:	Protection class III
Power connection:	Mains input via coaxial power connector (M) mounting version power supply cord with AC adapter included
Number of channels:	2
Frequency range:	50 - 16000 Hz
S/N ratio:	>80 dB
THD:	<0,5 % at 1 kHz
Diversity:	True diversity
Latency:	< 3 ms
Modulation:	FM
Housing color:	Black
Display type:	3 x multicolor TFT display
Display:	Frequency , goup , channel , AF audio level
Control elements:	Level control per channel, power switch, encoder, menu

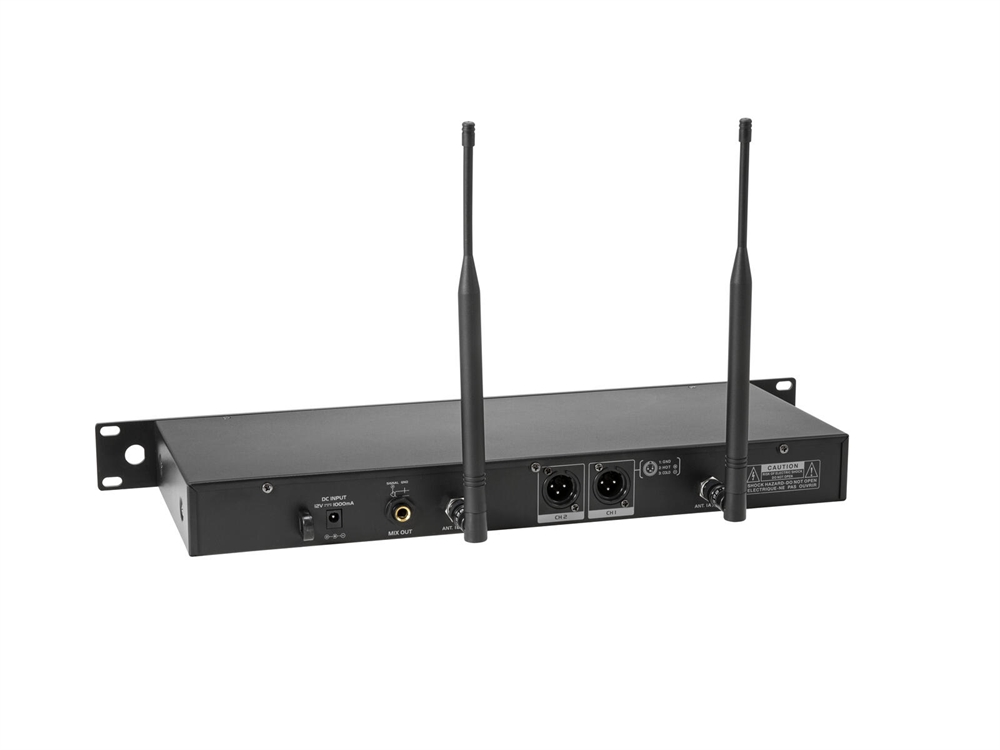

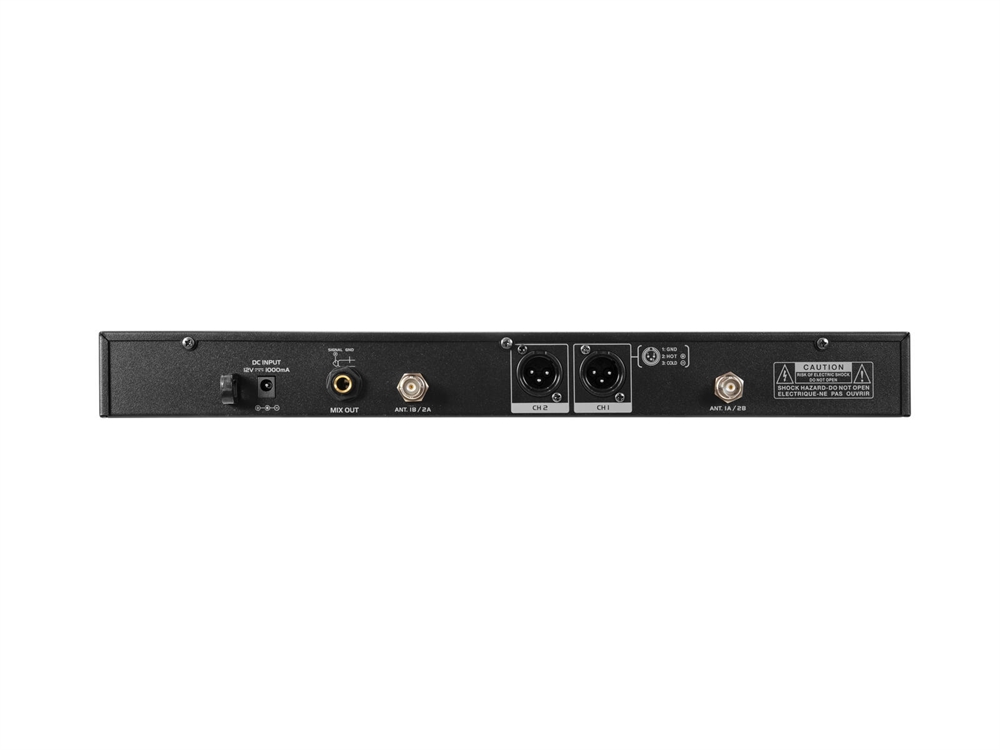

Connections:	Input: antenna via 2 x BNC (F) Output: microphone via 2 x 3-pin XLR (M) mounting version Output: microphone via 1 x 6.3 mm plug (unbal.)
Equalizer:	Graphic equalizer 7-band
Material:	Metal
Housing design:	(19") 48.3 cm rack installation 1 U
Mounting depth:	21 cm
Dimensions:	Width: 48,5 cm Depth: 21 cm Height: 4,4 cm
Weight:	1,5 kg

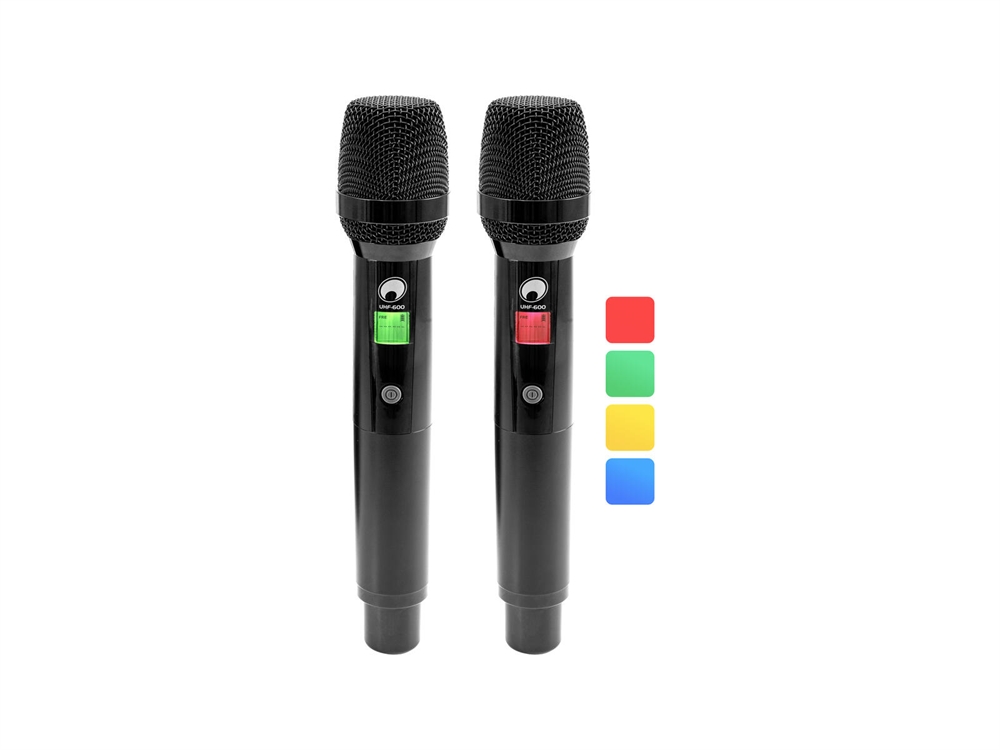

Microphone
Power supply:	3V DC 118 mA
Capsule type:	Dynamic Size: Ã˜ 2,54 mm
Polar pattern:	Cardioid
Battery:	2 x Mignon (AA) (not included)
RF power output:	10 mW (HI); 5 mW (LO)
Housing color:	Black
Display type:	Multicolor LCD display
Display:	Frequency , charge status indicator , Mute , RF signal level
Switch:	On/off/mute switch
Material:	Metal
Dimensions:	Length: 25,9 cm Diameter: Ã˜ 4,95 cm
Weight:	0,351 kg

Varenr.: E-13063602
