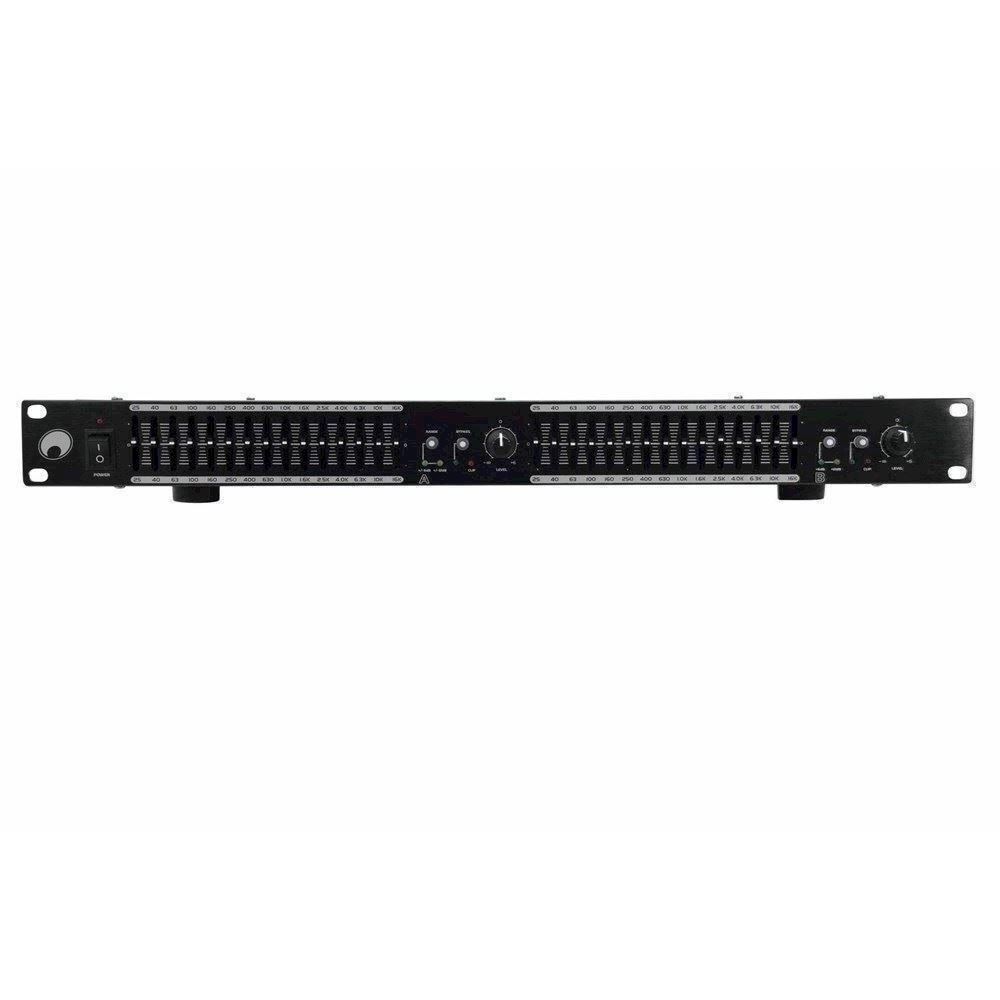

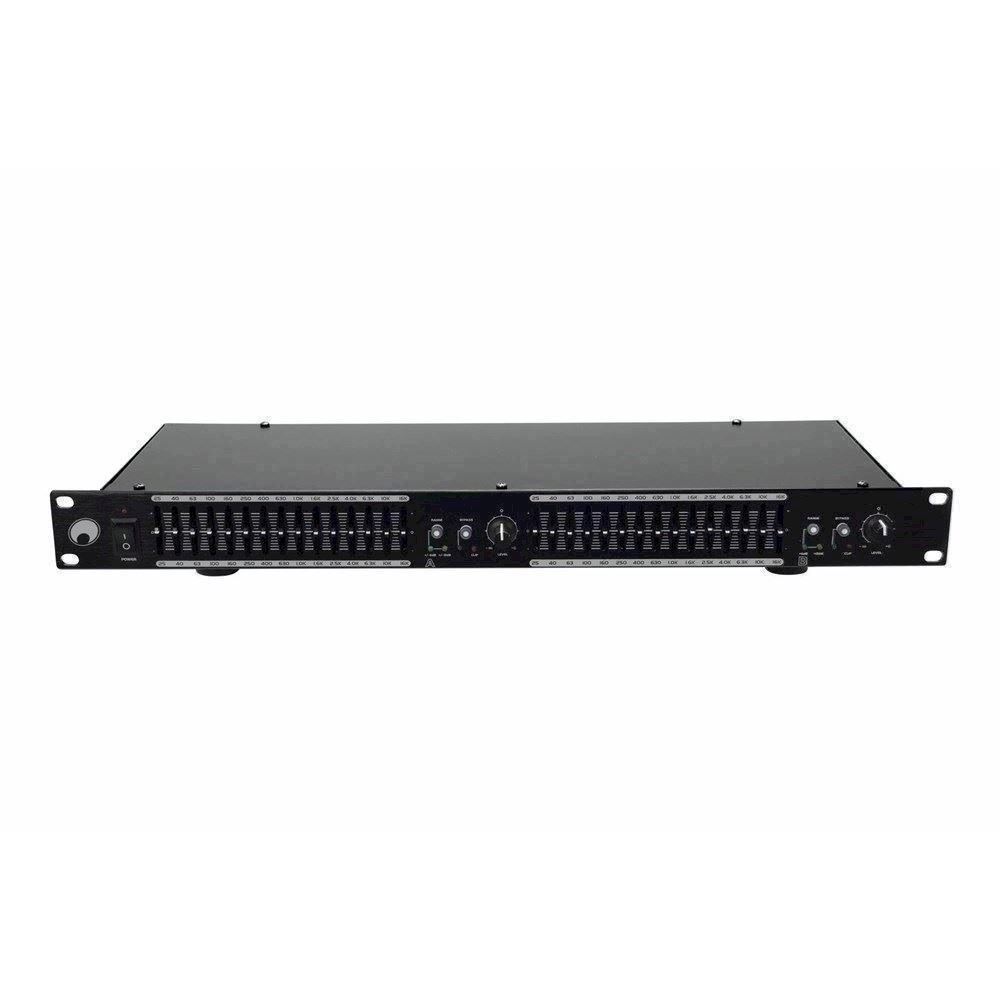

OMNITRONIC GEQ-2150 Equalizer 2x15-Band

OMNITRONIC GEQ-2150 Equalizer 2x15-Band
  • På lager
  • På lager, 3-5 dage
  • Bedømmelse for OMNITRONIC GEQ-2150 Equalizer 2x15-Band
    Produktet er endnu ikke bedømt
  •
    739,00DKK ved 1 stk.
Vis uden moms

2 x 15-band equalizer





2 x 15-band equalizer

  • 2-channel version, 2 x 15 frequency controls with 2/3 octave steps
  • Short sliding frequency controls with center click
  • EQ gain switchable ±6 dB to ±12 dB
  • Separate level control per channel
  • Bypass switch allows instant comparison of the original sound with the equalized sound
  • Clip indicator

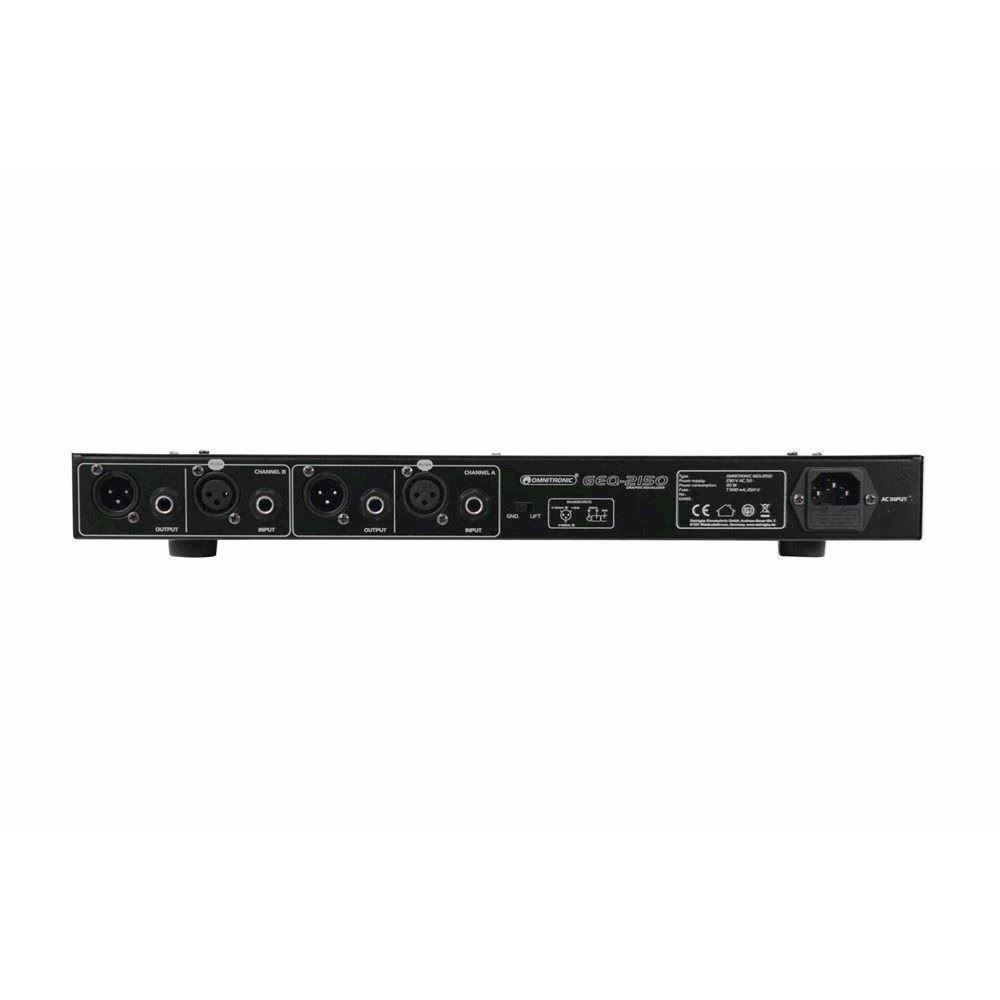

  • Inputs and outputs via 6.3 mm jack sockets and XLR sockets
  • Groundlift switch
  • Rack installation, 1 U
  • Master Equalizer: 2 x Graphic equalizer 15-band


Power supply:230 V AC, 50 Hz
Connectors:XLR, 6.3 mm jack
Input impedance:20 kohms/15 kohms (bal./unbal.)
Max. input level:+24 dBu/+18 dBu (bal./unbal.)
Output impedance:120/60 kohms (bal./unbal.)
Max. output level:+24 dBu/+18 dBu (bal./unbal.)/2 kohms,
+18 dBu/+12 dBu (bal./unbal.)/600 kohms
S/N ratio:96 dB
Distortion:<0.05 %
Frequency range:20-20000 Hz, ±0.5 dB
Output level:- ~ to +6 dB
Control range:±6 dB or ±12 dB
Frequencies:2 x 25/40/63/100/160/250/400/630 Hz, 1/1.6/2.5/4/6.3/10/16 kHz
Dimensions (W x D x H):483 x 220 x 54 mm
Weight:2,3 kg
Power consumption:20 W
Height:4,45 cm
Depths:22 cm
Width:48,3 cm
Varenr.: E-10355522
