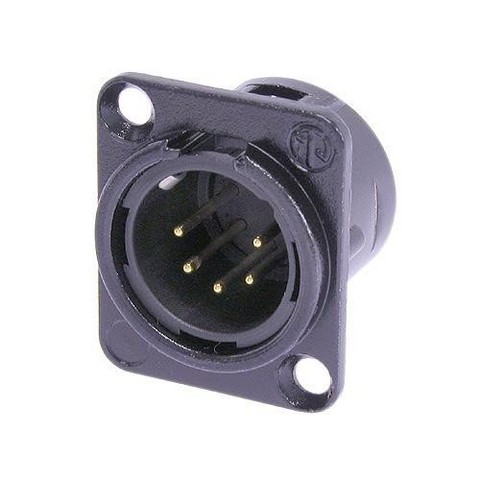

5 pole male receptacle, solder cups, Nickel housing, gold contacts Universal D-size metal body XLR panel mount series. UL recognized component.
Teknisk specifikationer
Capacitance between contacts= 7 pF
Contact resistance= 5 mO (inner)
Dielectric strength1,5 kVdc
Insulation resistance> 2 GO (initial)
Rated current per contact7,5 ARated voltage50 V
Insertion force= 20 N
Withdrawal force= 20 N
Lifetime> 1000 mating cycles
Wiresize max. 1.0 mm²
Wiresize max. 18 AWG
Wiring Solder contacts
Locking device Latch lock
Mounting direction front & rearChassis shape D
Contact plating2 µm Ag over 2 µm Ni
Contacts Brass (CuZn39Pb3)
Insert Polyamide (PA 6.6 30 % GR)
Locking elementSteel Ck67
Shell Zinc diecast (ZnAl4Cu1)
Shell plating Black chromium
ApprovalsUL
FlammabilityUL 94 HB
Standard compliance IEC 61076-2-103
Protection class IP 40
Solderability Complies with IEC 68-2-20
Temperature range-30 °C to +80 °C
