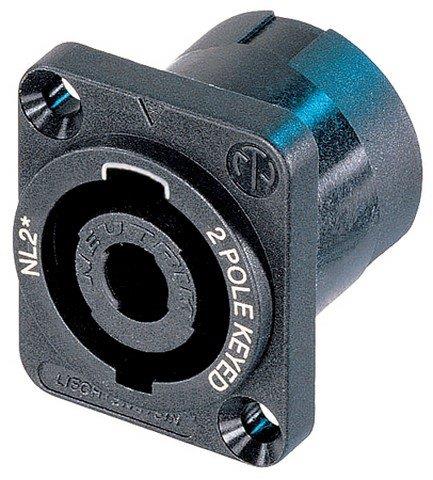

NL2MP SpeakON han chassis stik
2-Polet chassisstik, sort D-størrelse flange, forsænkede gennemføringshuller, 3/16" flade faner. Passer ikke til 4-polet kabelstik.
SpeakON panelmonterede stik er standard chassisstik til højttaler-/forstærkerforbindelser. De har et unikt metallåsesystem, der kun skaber kontakt, når de er helt låst. SpeakON-stikkontakterne er robuste, alsidige og nemme at terminere.
Product
Title NL2MP
Gender male
Electrical
Contact resistance <= 3 mOhm (after lifetime)
Dielectric strength 4 kVdc (peak)
Insulation resistance > 1 GOhm (after dampheat)
Rated current per contact 30 A rms continuous
Rated current per contact 40 A audiosignal, duty cycle 50 %
Rated voltage 250 V ac
Attention speakON is NOT to be used as an AC mains or power supply connector!
Mechanical
Lifetime > 5000 mating cycles
Wiresize
Locking device Quick Lock
Chassis shape D
Layout standard hole position, thru holes
Material
Contact plating 4 µm Ag
Contacts Bronze (CuSn6)
Shell Polyamide (PA 6 30 % GR) black
Environmental
Temperature range -30 °C to +80 °C
