Motor til spejlkugle op til 10 kg. (Max. 50 cm) 1 omdrejning/min

Motor til spejlkugle op til 10 kg. (Max. 50 cm) 1 omdrejning/min
  • På lager
  • På lager, 3-5 hverdage
  • Bedømmelse for Motor til spejlkugle op til 10 kg. (Max. 50 cm) 1 omdrejning/min
    Produktet er endnu ikke bedømt
  •
    399,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner


Standard motor til spejlkugler, med tilslutning til 230V. kan bruges til 40 & 50 cm spejlkugler.

Safety features
?   Rugged construction with steel housing for long operation
?   High stability due to massive motor axle
?   Mechanic fall safety against axle loosening inside the motor
?   Approved load with 12-fold testing weight
?   Additional attechment eyelet for secondary attachment of the load
?   EUROLITE safety rotary motors comply with the safety norm EN 292 and safety regulation BGV C1 (Germany)
?   Quality management for testing every production charge

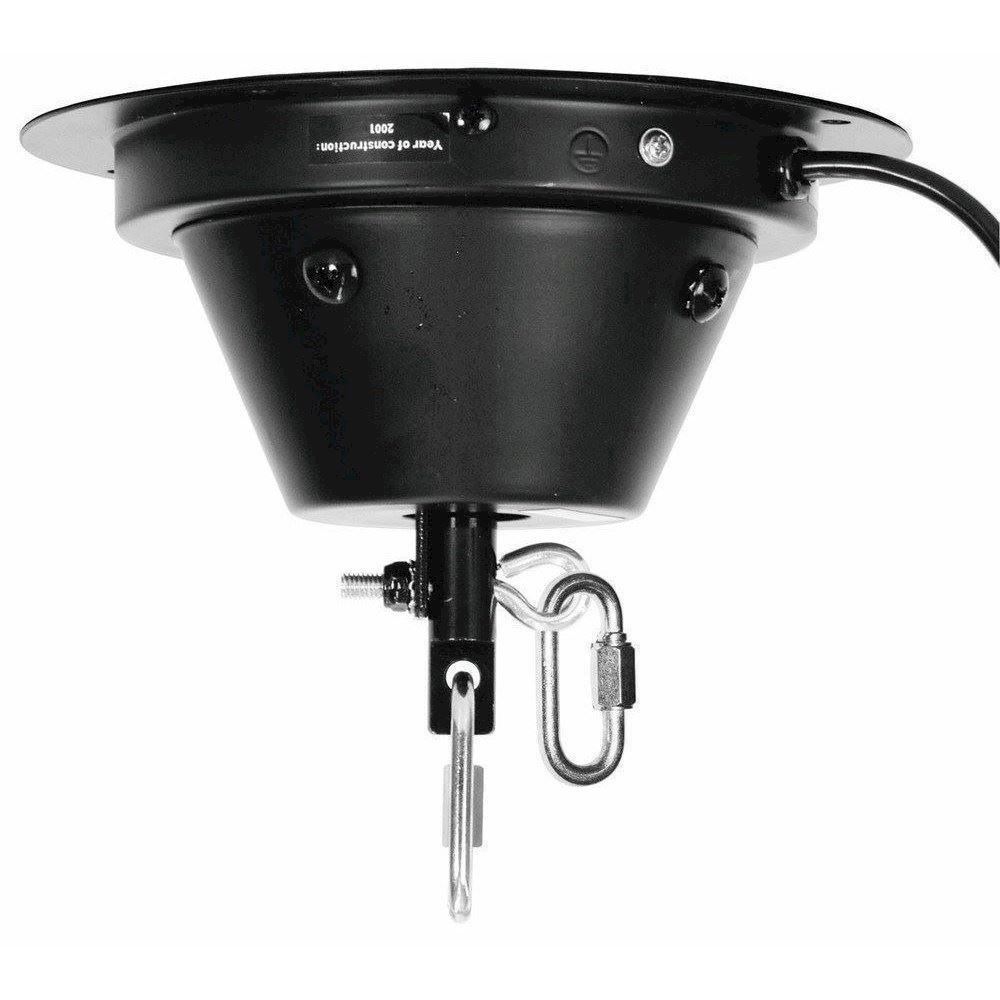

Mirror ball motor for up to 50 cm diameter

  • Suitable for driving mirror balls up to a maximum weight of 10 kg
  • This weight corresponds with a diameter of 50 cm for the EUROLITE mirror balls
  • The maximum load always means the mirror ball weight including the mirror ball chain, the safety chain and the fixation material
  • 2 chains and 4 quick links must be ordered separately
  • 1 rotation per minute
  • Delivered with open cable-ends
  • For professional use, e.g. in discotheques and in public places, the EN DIN 15560 norms have to be considered
  • The motor always has to be installed with a secondary safety attachment
  • Before taking into operation for the first time, the installation has to be approved by an expert




Power supply:230 V AC, 50 Hz
Maximum load BGV C1 (8-fold):15 kg
Maximum load BGV C1 (10-fold):12 kg
Maximum load BGV C1 (12-fold):10 kg
Max. diameter of mirror ball:50 cm (EUROLITE)
Rotation-speed:approx. 1 RPM
Diameter of base plate:190 mm
Height:130 mm
Weight:1 kg
Power consumption:3.5 W
Maximum load:10 kg
Varenr.: E-50301500
