| Peak output power |
480 W
|
| Power rating |
480 W
|
| Power rating at 8 Ω |
480 W
|
| Power rating at 100 V |
480 W
|
| Power rating at 70 V |
480 W
|
| Output impedance |
62 V/8 Ω, 70 V/10 Ω, 100 V/21 Ω
|
| Channels |
1
|
| Inputs |
1.2 V, bal.
|
| Frequency range |
35-20,000 Hz
|
| S/N ratio |
> 100 dB(A)
|
| THD |
< 1%
|
| Power supply |
˜ 230 V/50 Hz/1,400 VA, DC 24 V/40 A
|
| Mains voltage |
~ 230 V
|
| Mains frequency |
50 Hz
|
| Power consumption, operation |
1,400 VA
|
| Operating voltage (possible alternative) |
DC 24 V
|
| Power supply (possible alternative) |
DC 40 A
|
| Admiss. ambient temp. |
0-40 °C
|
| Width |
483 mm
|
| Height |
88 mm
|
| Depth |
374 mm
|
| Rack units, RU |
2
|
| Weight |
15.2 kg
|

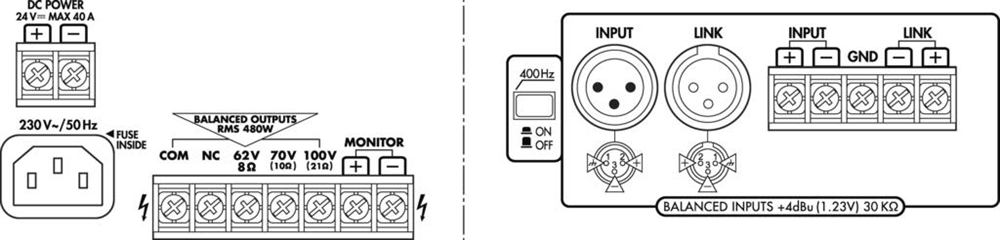

| Connections |
XLR/screw contacts (inputs) screw contacts (speakers)
|
| Packaging dimensions (W x H x L) |
0.54 x 0.18 x 0.48 m
|
| Gross weight |
17.24 kg
|
| Net weight |
15.22 kg
|
