Modtager - TXA-802SR

• Fjernlager
• På lager, 2-4 Hverdage
• Bedømmelse for Modtager - TXA-802SR

  Produktet er endnu ikke bedømt

•
  2.609,00DKK ved 1 stk.

Vis uden moms

Professional 16-channel Mono PLL Audio Transmission System, 863-865 MHz

• Compatible with portable amplifier systems of the TXA-800 and TXA-1000 series
• Can be combined with the TXA-800 and TXA-1000 series, but also suitable as a tour guide system and for any other application in which a certain audio source or voice source is to be distributed to one or more receivers
• Licence-free in the EU.

Professional 16-channel Mono PLL Audio Transmission System, 863-865 MHz, with Extensive Accessories

• Compatible with portable amplifier systems of the TXA-800 and TXA-1000 series
• Can be combined with the TXA-800 and TXA-1000 series, but also suitable as a tour guide system and for any other application in which a certain audio source or voice source is to be distributed to one or more receivers
• Can be combined with transmitters and receivers of the ATS-16 series
• Simultaneous operation of up to 8 transmitters with different frequencies (dep. on distance of transmitters, stationary RF sources of interference and other local conditions)
• Licence-free in the EU

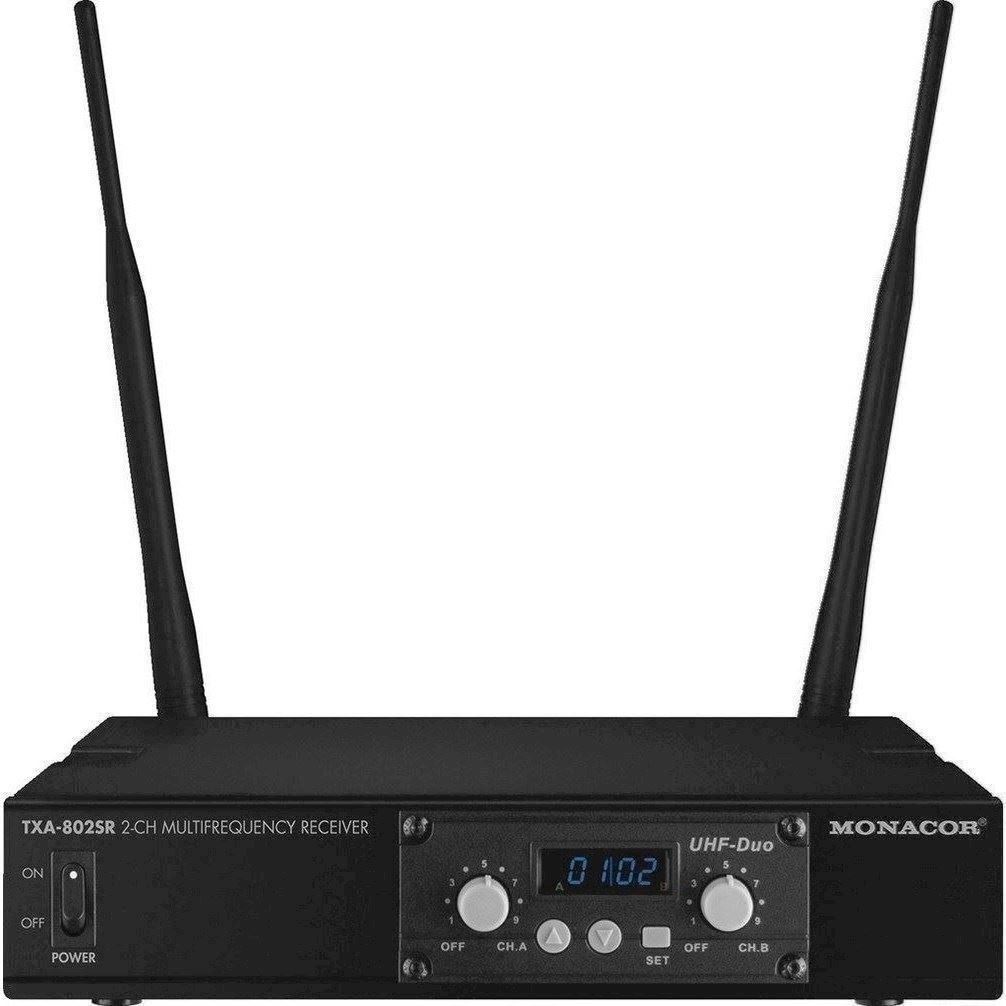

2-channel multifrequency receiver, with UHF PLL technology.

• Matching the transmitters TXA-800HT, TXA-800HSE, TXA-802ST and ATS-12HT
• 2 x 16 selectable UHF frequencies (863.1-864.9 MHz) with diversity system
• Scan function for free channel
• Volume control
• LCD for indicating selected channel and carrier signal
• Balanced XLR output and 6.3 mm jack output
• 482 mm (19") rack installation of 2 devices is possible with supplied mounting brackets
• Power is provided via enclosed plug-in power supply
• Dimensions: 215 x 50 x 210 mm
• Weight: 1.2 kg


Licence-free in the EU.



Type	receiver unit
Carrier frequency range	863.1-864.9 MHz
Audio frequency range	-
Channels	2
THD	-
Dynamic range	-
RF S/N ratio	-
Operating time	-
Admiss. ambient temp.	0-40 °C
Power supply	-
Dimensions	-
Total weight	-
Connections	-
Specifications transmitter	-
Transmitting power	-
Operating range	-
Power supply transmitter	-
Width transmitter	-
Height transmitter	-
Depth transmitter	-
Weight transmitter	-
Connections transmitter	-
Audio signal receiver	30 mV (XLR), 730 mV (6.3 mm jack, high), 80 mV (6.3 mm jack, low)
Power supply receiver	via encl. plug-in power supply
Width receiver	215 mm
Height receiver	50 mm
Depth receiver	210 mm
Weight receiver	1.2 kg
Connections receiver	1 x XLR, bal., 1 x 6.3 mm jack, unbal.

Varenr.: 172990
