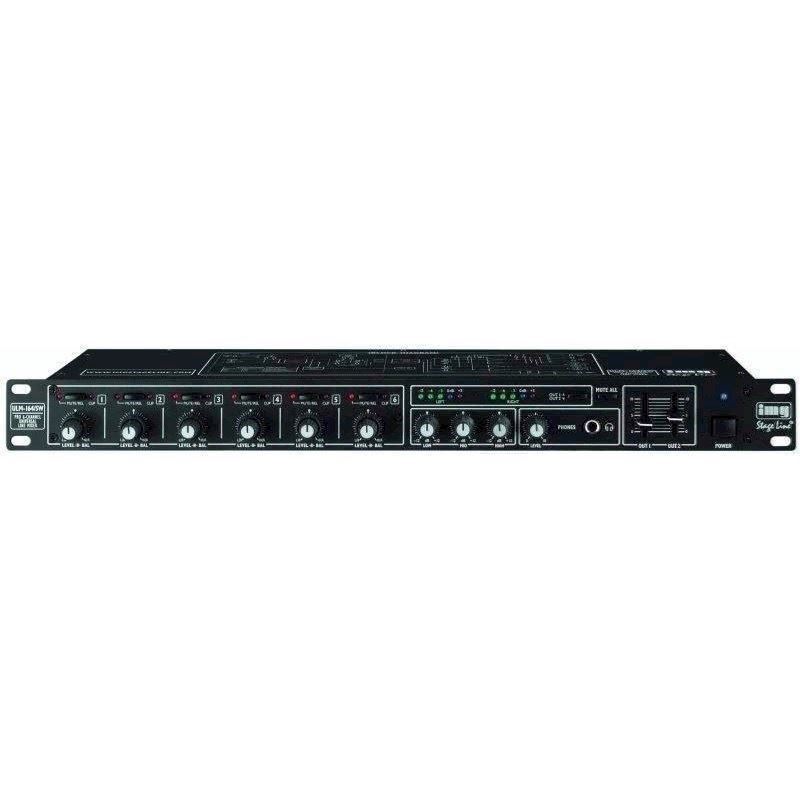

Mixer 6-kanals - ULM-164/SW - IMG STAGE LINE

Fjernlager
På lager, 2-4 Hverdage
Bedømmelse for Mixer 6-kanals - ULM-164/SW - IMG STAGE LINE
Produktet er endnu ikke bedømt

Universal line mixer med 6 stereo indgange / mono input, 2 stereo udgange, uafhængigt af hinanden og 3-vejs equalizer.

Universal line-mixer, 6 kanals.

No. of channels	6
No. of inputs	12
Mic input	-
Line input	150 mV/50 kΩ (stereo), 6 x RCA L/R 150 mV/25 kΩ (mono), 6 x 6.3 mm jack, unbal.
CD input	-
Phono input	-
Tape (play)	-
Aux input	-
Insert input	-
Effect return	-
Master output	1 V/600 Ω (stereo), 2 x RCA (1 x 6.3 mm) L/R 2 V/600 Ω (mono), 1 x 6.3 mm jack
Record output	-
Monitor output	-
Booth output	-
Aux output	-
Insert output	-
Effect send	-
Control room	-
Tape (rec)	-
Headphones	≥ 8 Ω, 1 x 6.3 mm jack
Gooseneck lamp	-
WiFi	-
USB	-
Frequency range	20-20,000 Hz
THD	0.05%
S/N ratio	69 dB, unweighted
Crosstalk	-
Equalizer bass	±12 dB/80 Hz
Equalizer midrange	±12 dB/1 kHz
Equalizer treble	±12 dB/10 kHz
equalizer	-
Talkover	-
Phantom power	-
Crossfader	-
Media player	-
Amplifier	-
Power supply	∼ 230 V/50 Hz/10 VA
Mains voltage	∼ 230 V
Mains frequency	50 Hz
Power consumption, operation	10 VA
Operating voltage (possible alternative)	-
Power supply (possible alternative)	-
Admiss. ambient temp.	0-40 °C
Width	482 mm
Height	48 mm
Depth	175 mm
Rack spaces, RS	1
Weight	2.3 kg

Varenr.: 202240
