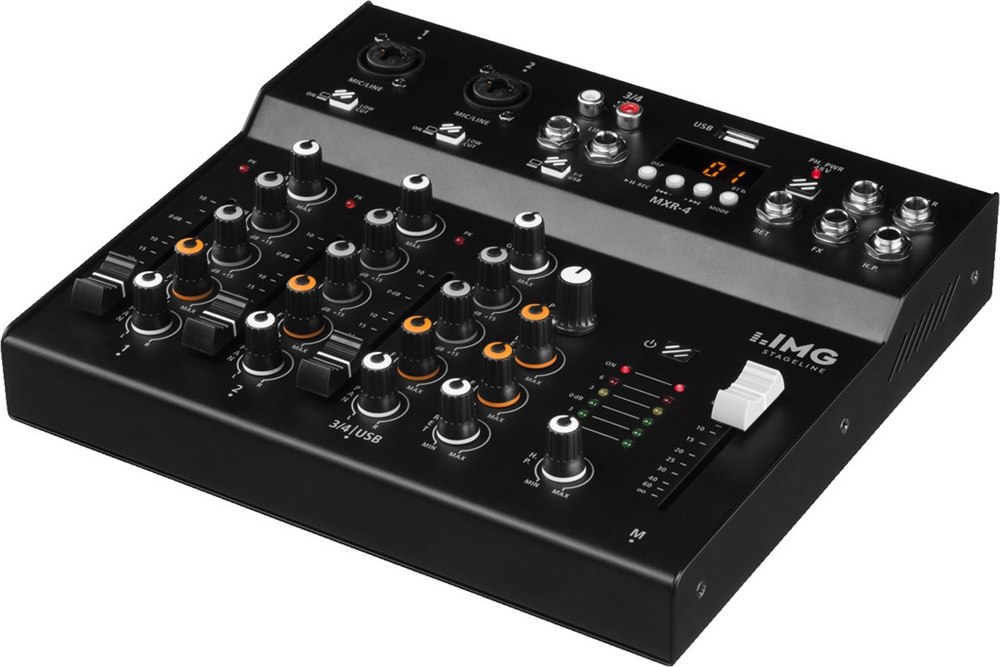

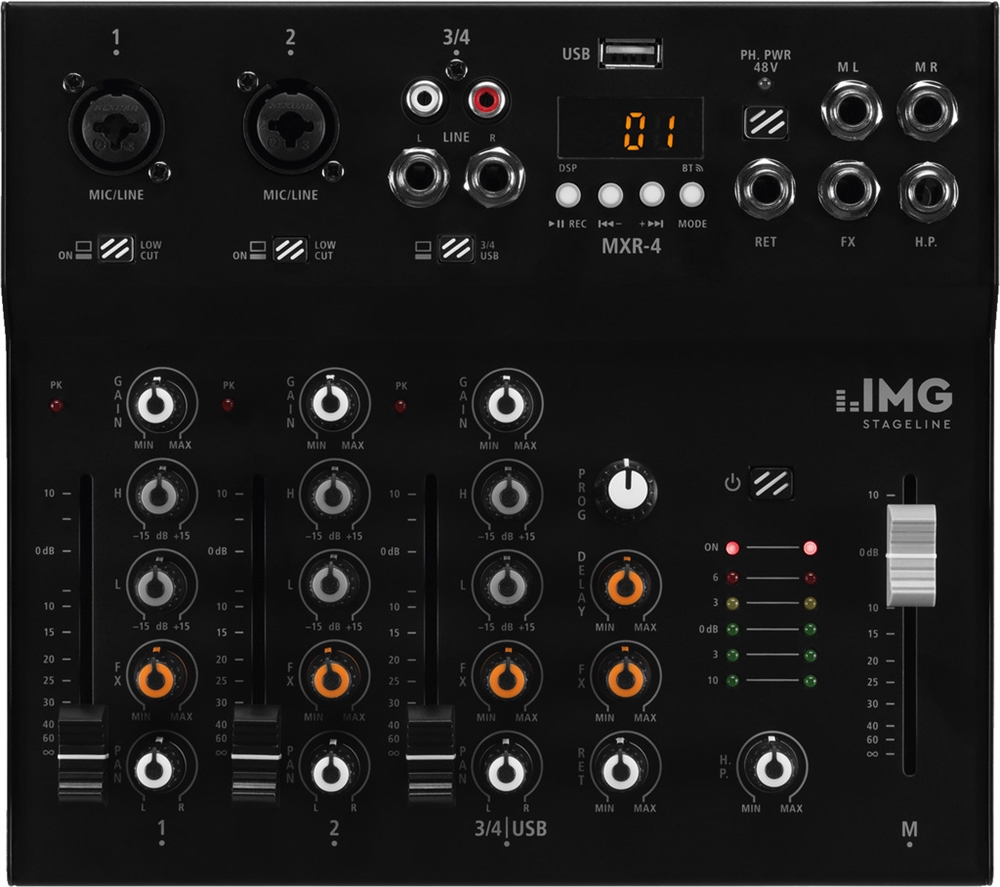

Mixer 4 kanal - MXR-4

4-channel audio mixer,
with DSP effect unit, integrated MP3 player and Bluetooth receiver.

Integrated USB audio interface (will be identified and addressed as an external sound card)
Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC and for recording mixings onto a PC
2 mono input channels with gain control, 2-way equalizer and pan pot
1 stereo input channel with 2-way equalizer and balance control
MP3 player
USB interface
Bluetooth receiver
16 different DSP effects
Adjustable aux return input and FX send output
+48 V phantom power, can be activated as required
Adjustable headphone output
Stereo LED level display
Power is provided via USB or supplied power supply

Input channels	4
Number of mix/mono	2
No. of channels	-
No. of inputs	-
Mic input	2 mV, bal. 2 x XLR
Line input	100 mV (stereo), 2 x 6.3 mm jack L/R 60 mV (mono), 2 x 6.3 mm jack
CD input	-
Phono input	-
Tape (play)	-
Aux input	400 mV, 1 x 6.3 mm jack L/R
Insert input	-
Effect return	-
Master output	500 mV, 1 x 6.3 mm jack L/R
Record output	-
Monitor output	-
Booth output	-
Aux output	-
Insert output	-
Effect send	4.4 V, 1 x 6.3 mm jack
Control room	-
Tape (rec)	-
Headphones	? 8 Ω, 1 x 6.3 mm jack
Gooseneck lamp	-
WiFi	-
USB	yes
Bluetooth	yes
Frequency range	20-20,000 Hz
THD	< 0.03%
S/N ratio	> 83 dBA
Crosstalk	-
Equalizer bass	±15 dB/80 Hz
Equalizer midrange	-
Equalizer treble	±15 dB/12 kHz
equalizer	-
Talkover	-
Phantom power	+48 V
Crossfader	-
Media player	-
Amplifier	-
Power supply	USB or encl. power supply
Mains voltage	-
Mains frequency	-
Power consumption, operation	-
Operating voltage (possible alternative)	-
Power supply (possible alternative)	-
Admiss. ambient temp.	0-40 °C
Width	228 mm
Height	53 mm
Depth	205 mm
Rack spaces, RS	-
Weight	1.4 kg

Varenr.: 200250
