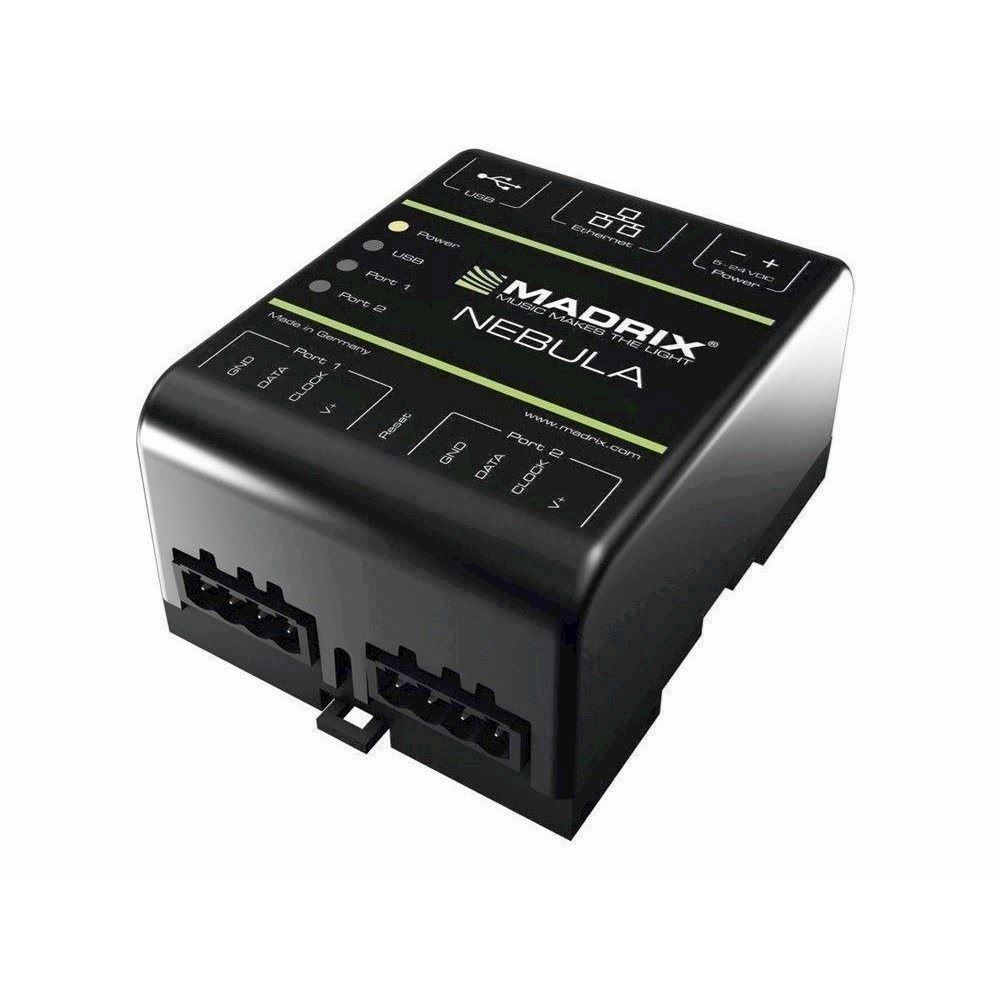

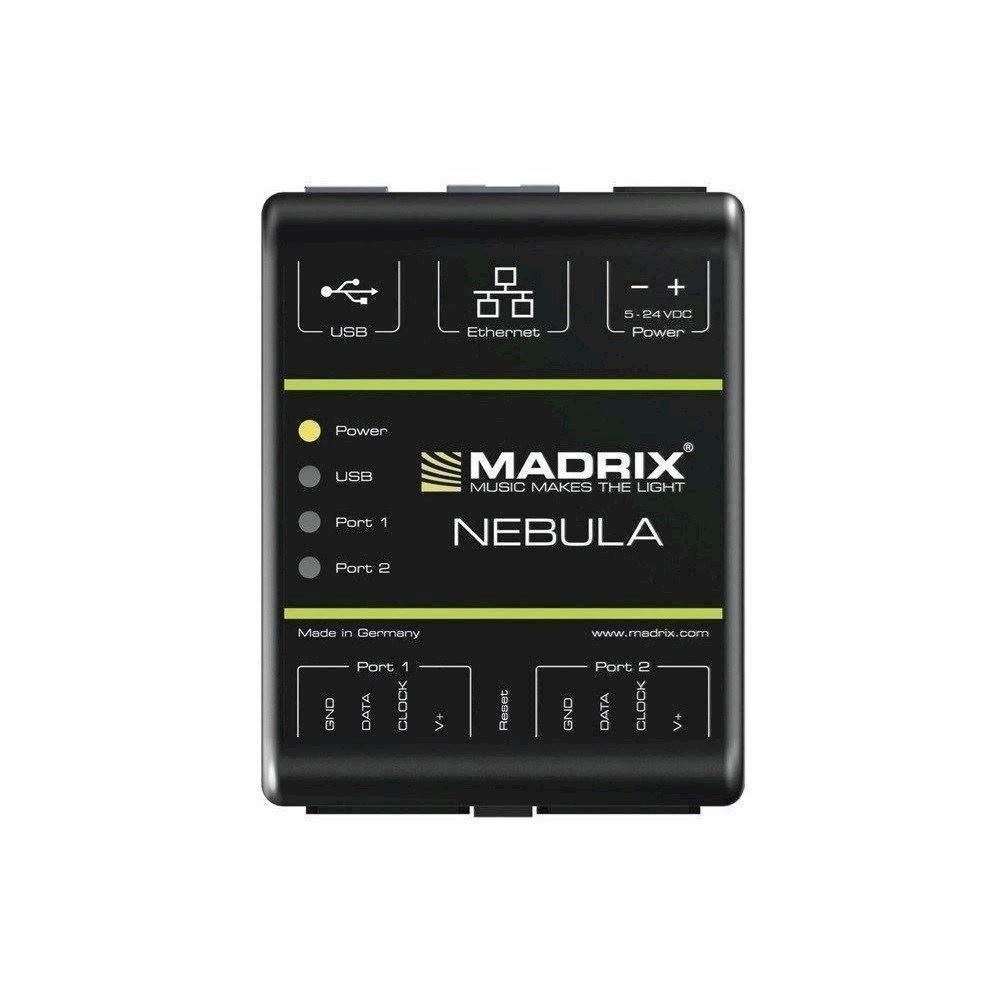

MADRIX NEBULA

MADRIX NEBULA
  • På lager
  • På lager, 3-5 hverdage
  • Bedømmelse for MADRIX NEBULA
    Produktet er endnu ikke bedømt
  •
    2.759,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner






USB and Artnet interface to control pixels of LED strips, LED stripes, and LED tape

  • Supports a wide range of LEDs: APA101, APA102, APA104, APA106, LPD6803, LPD8806, SM16703, SM16716, TLS3001, TLS3008, TM1804, TM1809, TM1812, TM1829, UCS1903, WS2801, WS2803, WS2811, WS2812, WS2812B (As of June 2016)
  • Additional LED types will be supported with future firmware updates
  • Drives up to 1360 RGB pixels (8 DMX universes / 4096 DMX Channels / 4096 single-color pixels / 1024 RGBW pixels) distributed equally over 2 ports
  • Supports a signal frequency of up to 24 MHz
  • The output protocol can be set separately for each of the 2 ports
  • Directly connects to the LEDs via 4-pin screw terminals
  • Provides flexible power options: over USB (5 V) or via screw terminal (5 V to 24 V / 12 A) as well as routing through to LEDs with up to 6 A maximum load per port with various options on how to connect LEDs, power, and MADRIX NEBULA
  • Receives data over Ethernet network (Art-Net)
  • Can also be used as MADRIX USB interface
  • Works great with the MADRIX software with quick and easy installation (sold separately)
  • MADRIX Sync Mode: Only MADRIX software and hardware allow you to synchronize Art-Net data for all output ports and even across multiple devices to get an optimal image on the LEDs without visual interruptions
  • Complies with the official Art-Net specifications and can be used as regular Art-Net unit with other consoles, controllers, or software solutions
  • Automatic HTP merging for two Art-Net sources
  • 6 status LEDs, which can be turned off
  • Built-in web tool for on-device configuration
  • Can be mounted on 35-mm DIN rails or walls via the provided wall-mount brackets
  • Non-conductive enclosure with IP20 and UL94 V-O flammability rating
  • Fanless, low-energy design
  • Ready within seconds after startup
  • Recommended for any small or large installation
  • Multiple devices can be used together without problems
  • The firmware is upgradable for future features
  • MADRIX 3.X minimum system requirements: 2.0 GHz dual-core CPU, OpenGL 2.1 graphics card (NVIDIA recommended), 2 GB RAM, 1 GB free harddisk space, 1280 x 768 screen resolution, network card, sound card, USB 2.0
  • MADRIX 3.X supported operating systems: Microsoft Windows Vista 7 8 8.1 10 (compatible with 32 bit and 64 bit)
  • Installation instructions and MADRIX software available in English, German, Spanish, French, and Simplified Chinese
  • Software user manual available in English
  • Quick start guide / technical manual available in English and German
  • Made in Germany
  • Package Contents: 1x MADRIX NEBULA, 1x Set of screw terminals (2x 4-pin and 1x 2-pin), 1x USB 2.0 cable (certified), 2x Wall-mount brackets, 1x Quick start guide / technical manual, 1x CD-ROM incl. MADRIX software and USB drivers (software license not included)
  • User manuals also available at help.madrix.com
  • Free software demo version and more information available at www.madrix.com
  • Made in Germany




Power supply:DC 5 V - 24 V, A) via 2-pin screw terminal (12 A max.), B) via 5 V USB, C) via Port 1 or 2 from LEDs; max. 6 A load per port when supplying through to LEDs
Power consumption:<1.5 W during normal operation (300 mA max.)
Data output:8 x 512 channels SPI TTL (maximum output per port: 680 RGB LEDs / 512 RGBW LEDs / 2048 1-channel LEDs)
Ports:2 x ports (via 2 x 4-pin screw terminals)
Supported LEDs:APA101, APA102, APA104, APA106, GW6201, LPD6803, LPD8806, MBI6120, P9883, SK6812, SK6822, SM16703, SM16716, TLS3001, TLS3008, TM1804, TM1809, TM1812, TM1814, TM1829, UCS1903, UCS512B3, WS2801, WS2803, WS2811, WS2812, WS2812B, WS2813, WS2818, WS2822S, WS2822S addressing (as of February 2017 - see www.madrix.com for the latest information)
Ethernet (Art-Net):RJ45, 10/100 MBit/s (compatible with 1 GBit/s)
USB port:USB 2.0, type B plug
Case:Non-conductive, IP20, UL94 V-0 flammability rating, designed for 35 mm DIN-rails or wall mounting
Dimensions:92 mm x 70 mm x 45 mm (length x width x height)
Temperature range:-10 °C to 70 °C (Operating) -20 °C to 85 °C (Storage)
Relative humidity:5 % to 80 %, non-condensing (Operating / Storage)
Weight:0.130 kg
Height:4,5 cm
Depths:9,2 cm
Width:7 cm
Varenr.: E-51860360
