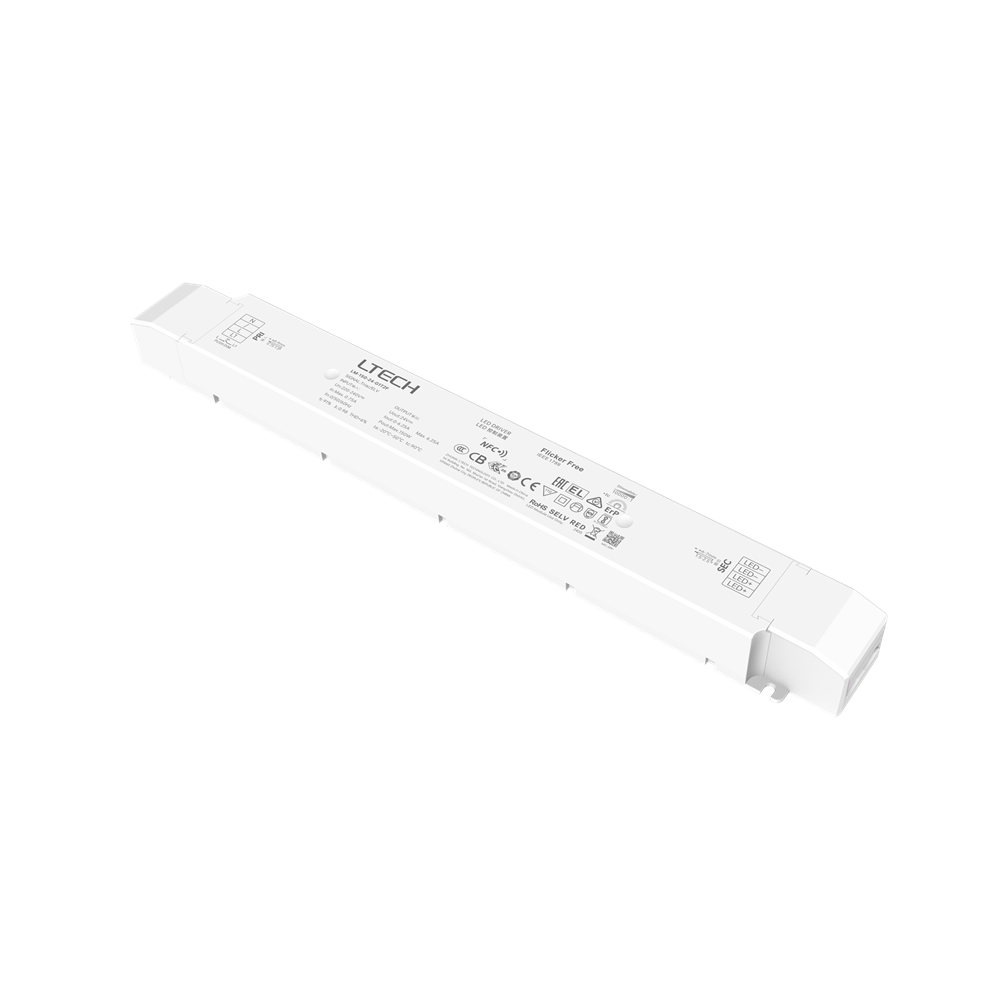

LTECH LED Driver TRIAC 150 W - 24 V - NFC

This 150 W, 24 V LED Driver TRIAC has a soft-on and fade-in dimming function to enhance visual comfort. It offers flicker-free dimming from 0 to 100%. In addition to support for TRIAC (leading edge), it supports ELV (trailing edge) and Push DIM. As well as thermal management technology that protects the life of the LED driver, it has built-in safety features including overheat, over voltage, overload and short circuit protection with automatic recovery. It is also NFC capable, meaning that parameters like lighting voltage, PWM frequency and power translation time can be adjusted with a mobile app. Thanks to a dismountable end cap, the length of the V0 flame-retardant housing is adjustable.

Control Mode: Push-dim / Triac (Phase cut dimming)
Power Supply: 220-240 V AC 50/60 Hz
Output voltage: 24 V DC
Maximum Output Current (A): 6.25 A
Length (mm): 352 mm
Height (mm): 30 mm
Width (mm): 43 mm
IP Rating: IP20 (indoor use only)
