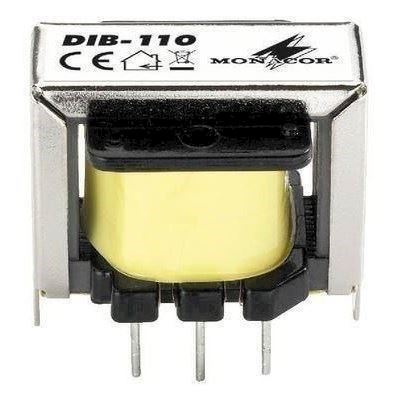

Linietransformator - DIB-110 - MONACOR

• Fjernlager
• På lager, 2-4 Hverdage
• Bedømmelse for Linietransformator - DIB-110 - MONACOR

  Produktet er endnu ikke bedømt

•
  89,00DKK ved 1 stk.

Vis uden moms

Transformer,
for microphone signals.

• Wideband version
• Change from unbalanced to balanced and vice versa
• DC separation to prevent hum loops
• Max. input voltage: 5V (1% THD/40Hz)

DI transformer 10:1

• Unshielded version with PCB connections
• Wideband version
• Change from unbalanced to balanced and vice versa
• Galvanic isolation to avoid/eliminate hum loops
• Max. input voltage: 5 V (1% THD/40 Hz)

When installing unshielded transformers into units with interference fields (e.g. power transformers), attention has to be paid to respective shielding measures.



Type	DI box
Frequency range	15-30,000 Hz
Control range	-
Control frequencies	-
Input signal	-
Input sensitivity	-

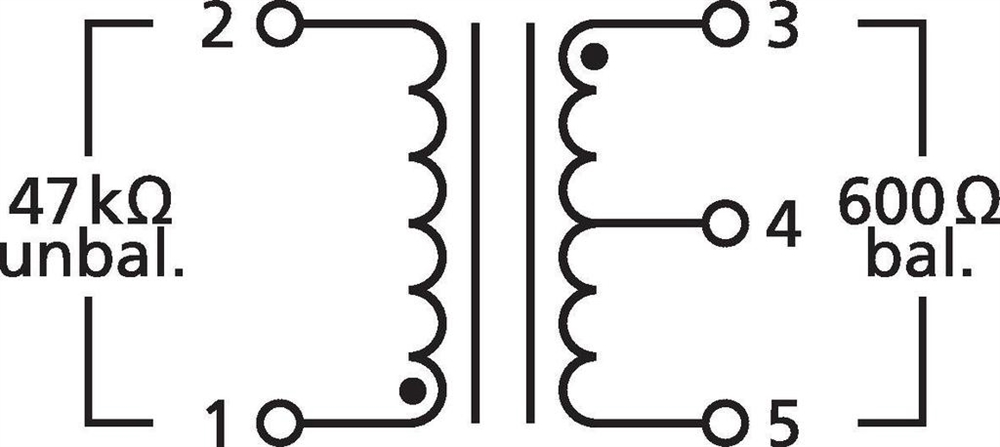

Input impedance	47 kΩ, unbal.
Output signal	-
Output impedance	600 Ω, bal.
Gain	-
Phantom power	-
Compression	-
Gate ratio	-
Crossover frequency	-
High-pass filter	-
Low cut	-
Transmission ratio	10:1
S/N ratio	-
Channel separation	-
THD	-
Admiss. ambient temp.	0-40 °C
Power supply	-
Dimensions	25 x 24 x 21 mm
Weight	28 g
Inputs	PCB connections
Outputs	PCB connections
Other features	-

Varenr.: 212140
