Line-splitter - PA-24AD - MONACOR

• Fjernlager
• På lager, 2-4 Hverdage
• Bedømmelse for Line-splitter - PA-24AD - MONACOR

  Produktet er endnu ikke bedømt

•
  2.229,00DKK ved 1 stk.

Vis uden moms

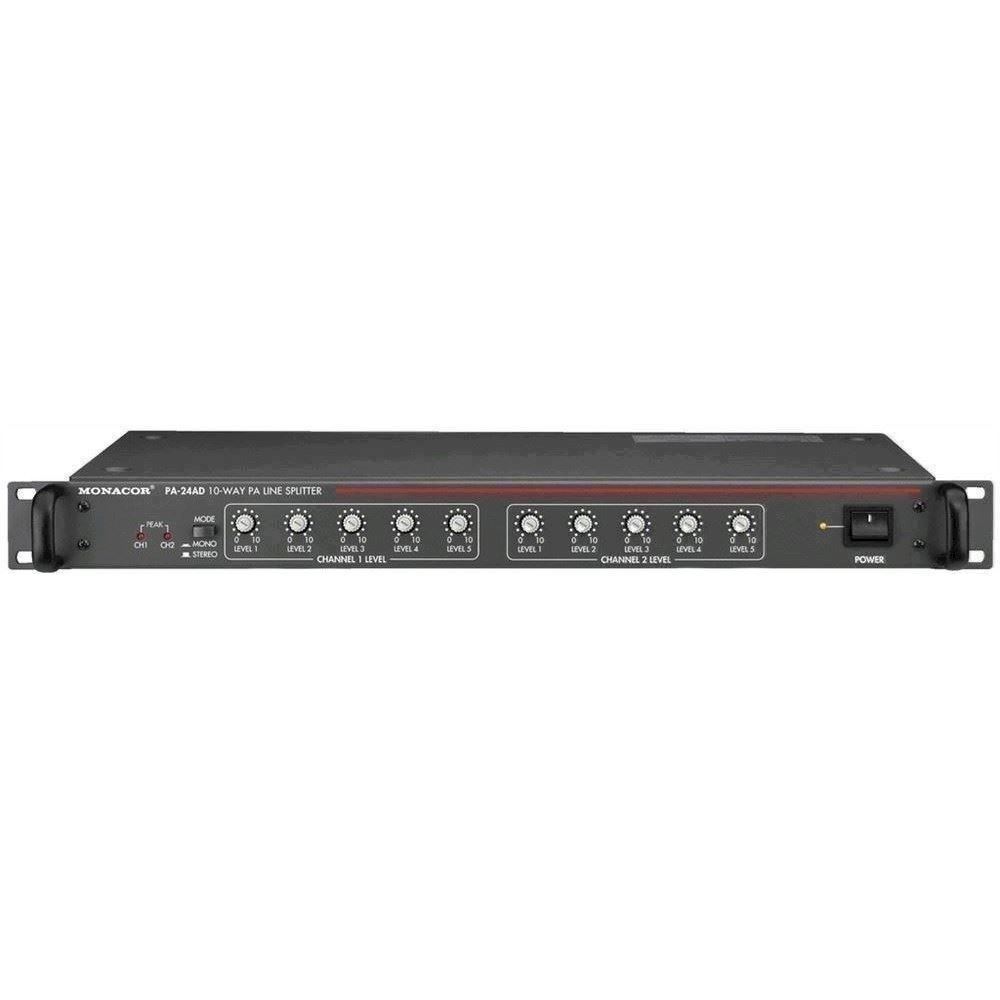

10-way PA line splitter

• 2 separate inputs
• Stereo operation or mono operation
• Balanced XLR connection for each input and output
• Gain control for each output
• Peak indication for each input
• Mains operation and 24 V emergency power operation



Type	splitter
Frequency range	20-20,000 Hz
Control range	-
Control frequencies	-
Input signal	0.775 V
Input sensitivity	-
Input impedance	15 kΩ
Output signal	0.775 V
Output impedance	600 Ω
Gain	-
Compression	-
Gate ratio	-
Crossover frequency	-
High-pass filter	-
Low cut	-
Transmission ratio	-
S/N ratio	> 68 dB
Channel separation	-
THD	< 0.05%
Admiss. ambient temp.	0-40 °C
Power supply	∼ 230 V/50 Hz/10 VA DC current  24 V/0.2 A
Dimensions	482 x 45 x 235 mm, 1 RS
Weight	2.9 kg

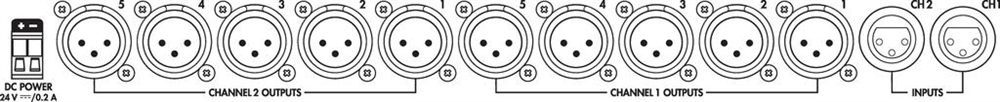

Inputs	2 x XLR
Outputs	10 x XLR
Other features	-

Varenr.: 171890
