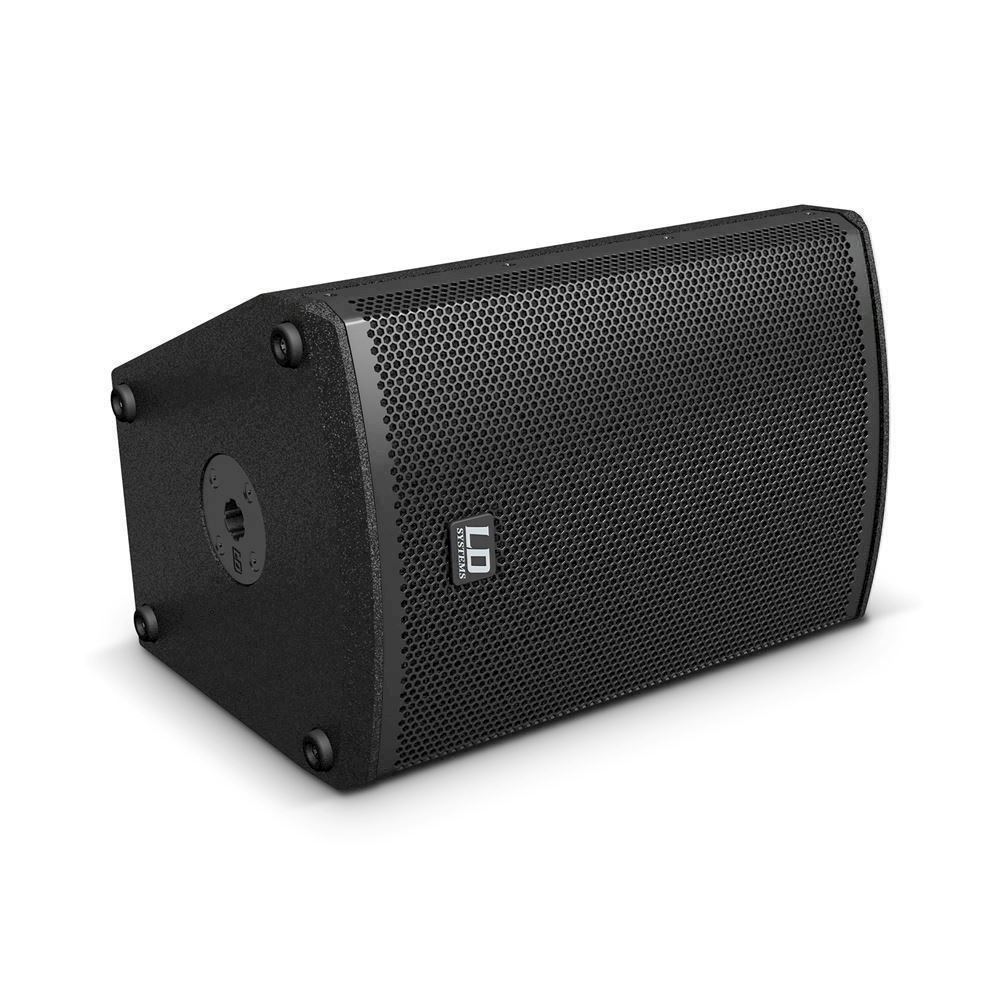

LD Active 2-Way Loudspeaker with Integrated 4-Channel Mixer - MIX 6 A G3

LD Active 2-Way Loudspeaker with Integrated 4-Channel Mixer - MIX 6 A G3
  • Fjernlager
  • På lager, 3-8 Hverdage
  • Bedømmelse for LD Active 2-Way Loudspeaker with Integrated 4-Channel Mixer - MIX 6 A G3
    Produktet er endnu ikke bedømt
  •
    2.649,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner

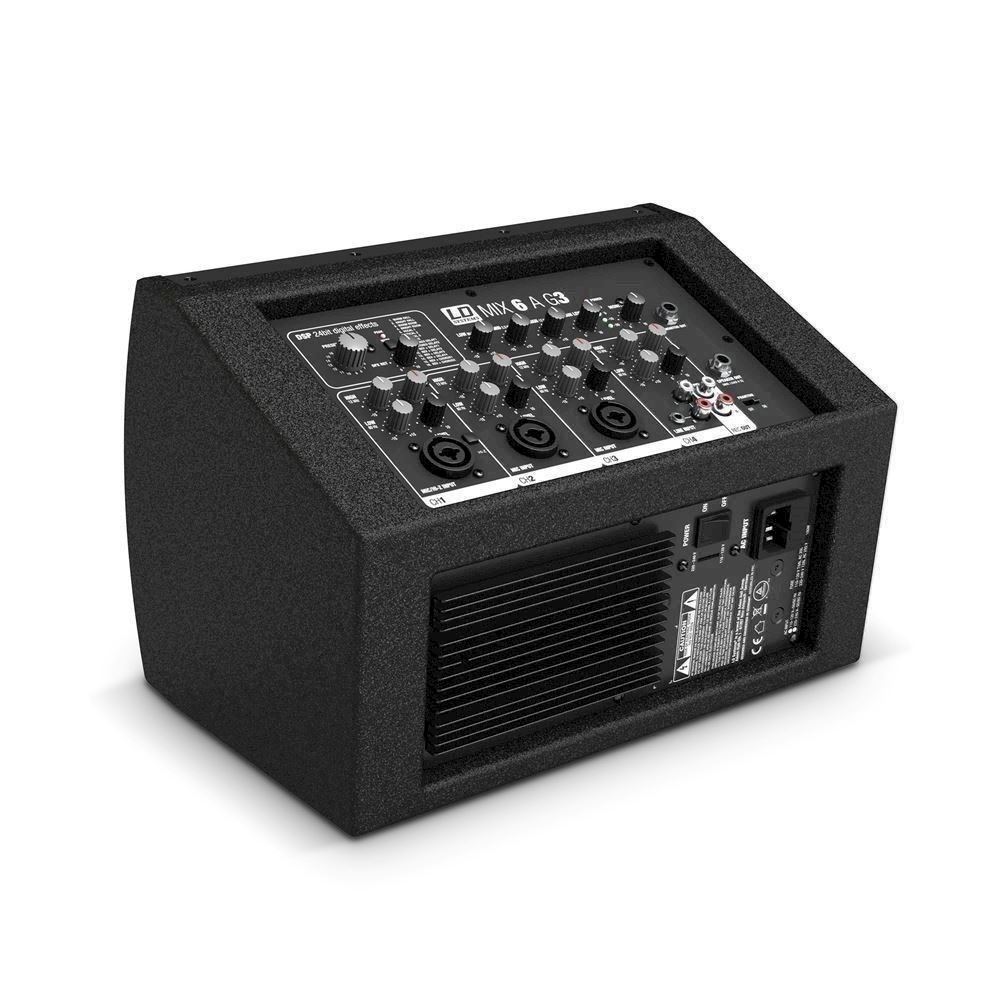

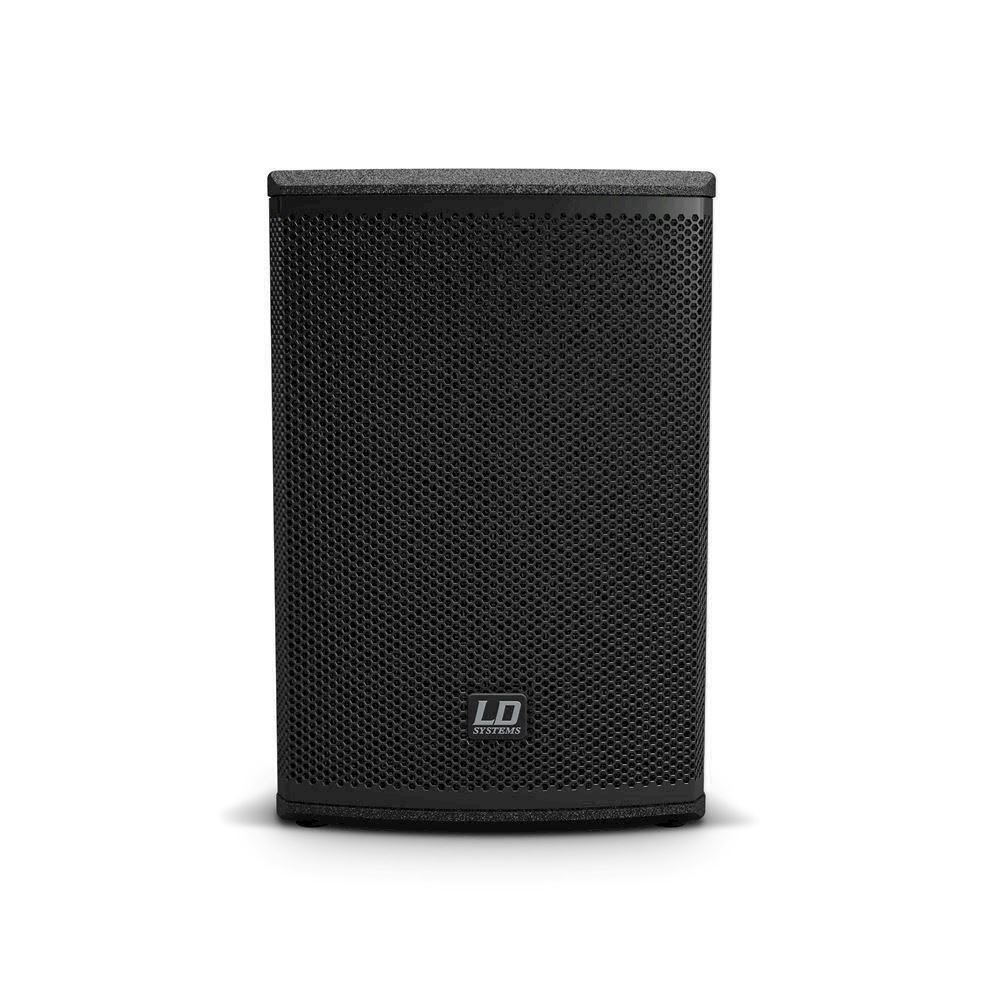

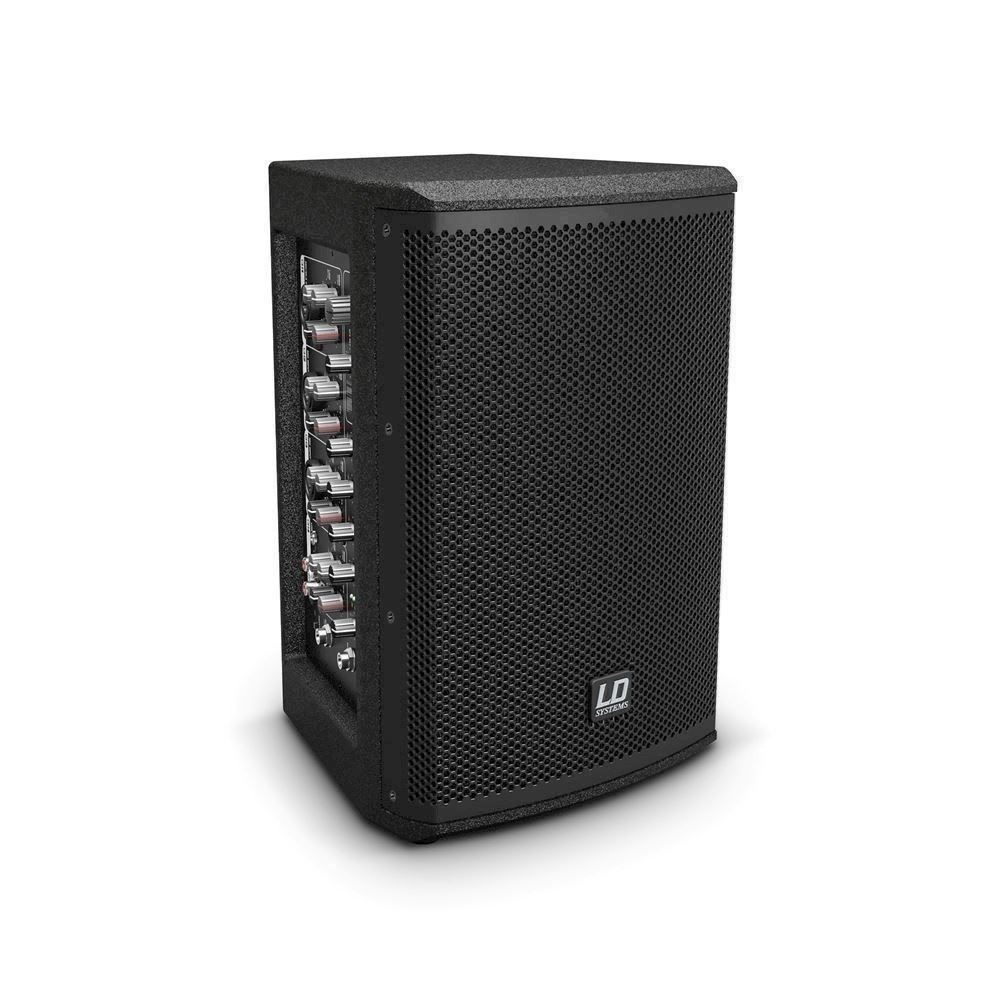

The ideal choice for small-scale PA and personal monitoring applications, the active LD MIX 6 A G3 integrates a 4-channel mixer and Class D amplification with 2 x 280 watts peak power. The compact bass reflex loudspeaker features a 6.5" custom woofer and 1" HF driver complement, 80 Hz to 20 kHz frequency response and 80° x 70° dispersion delivering crystal clear sound with punch and detail.

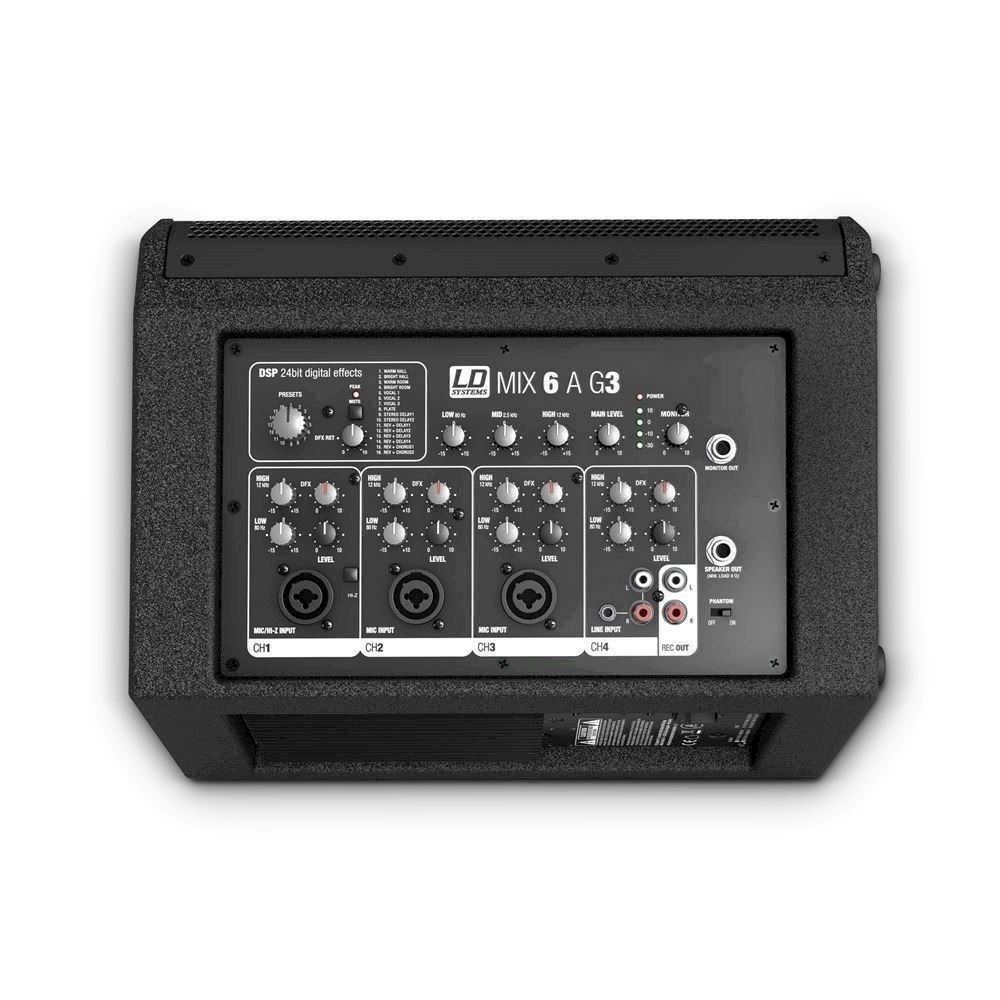

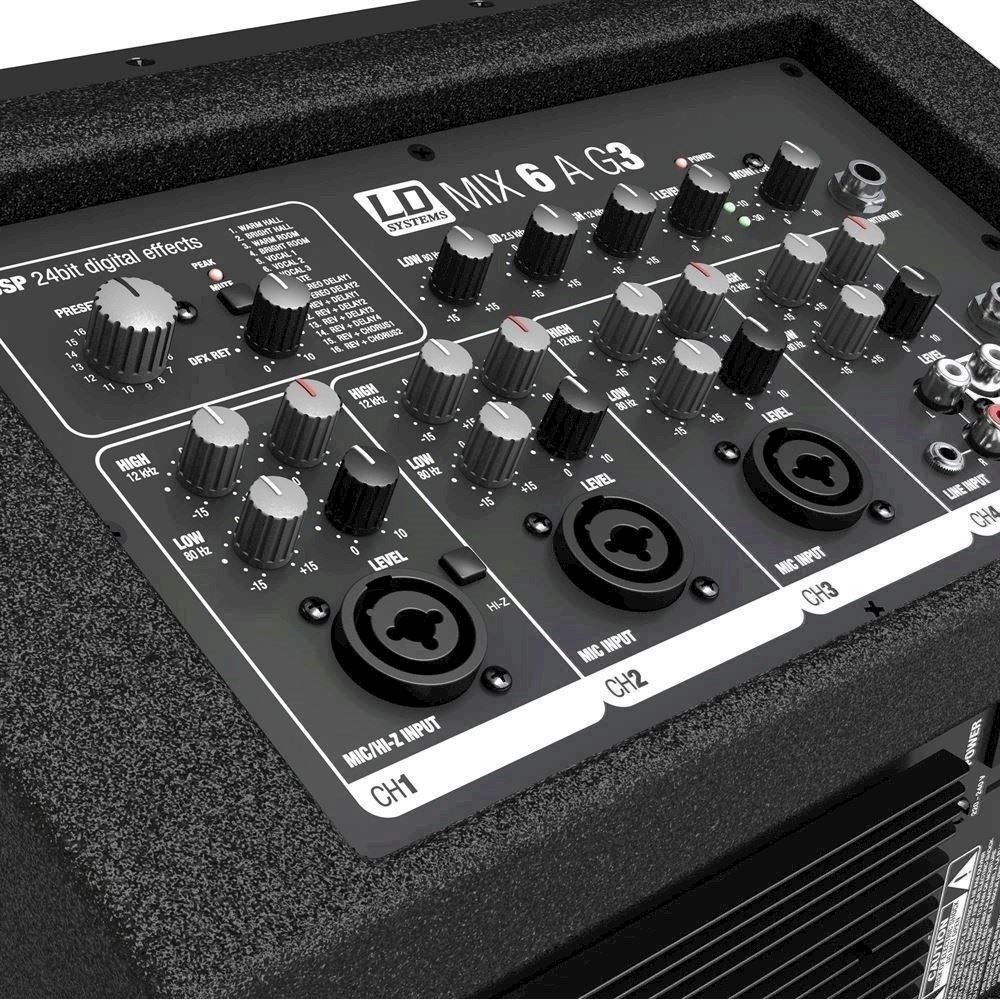

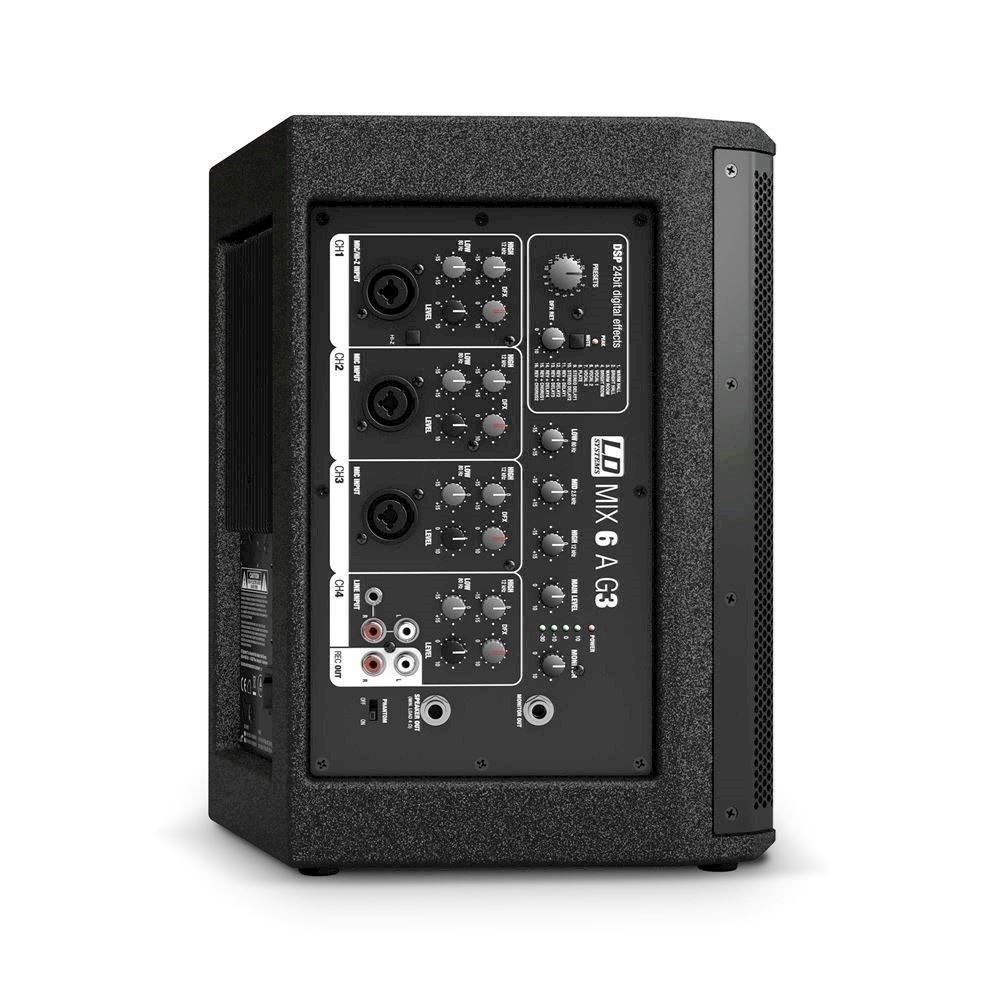

Accomodating a wide variety of input sources including electric instruments, smartphones, tablets, MP3 and CD players, the built-in mixer provides 3 microphone channels and a stereo line channel with 2-band EQ each plus switchable hi-Z input and 15 V phantom power. The output section includes a 3-band master EQ for overall tone shaping, 4-segment LED metering, an adjustable monitor and RCA recording outputs. In addition, the LD MIX 62 A G3 sports a DSP with 16 effect presets, limiter and overcurrent, overload, short circuit and thermal protection. A 4 ohm slave output allows powering the passive LD MIX 6 G3 for a dual speaker setup.

The rigid MDF enclosure features two 16 mm pole mounts for horizontal or vertical orientation. On its own or in tandem with the passive unit, the LD MIX 62 A G3 provides amazing performance and versatility in a lightweight, easily portable package.





  • Class D amplification with 2 x 280 watts peak power
  • 6.5” custom woofer and 1” HF driver
  • Integrated 4-channel mixer
  • 24-bit DSP with 16 FX Presets
  • Slave output for combination with LD MIX 6 G3 passive loudspeaker
  • Bass reflex enclosure for powerful, punchy bass

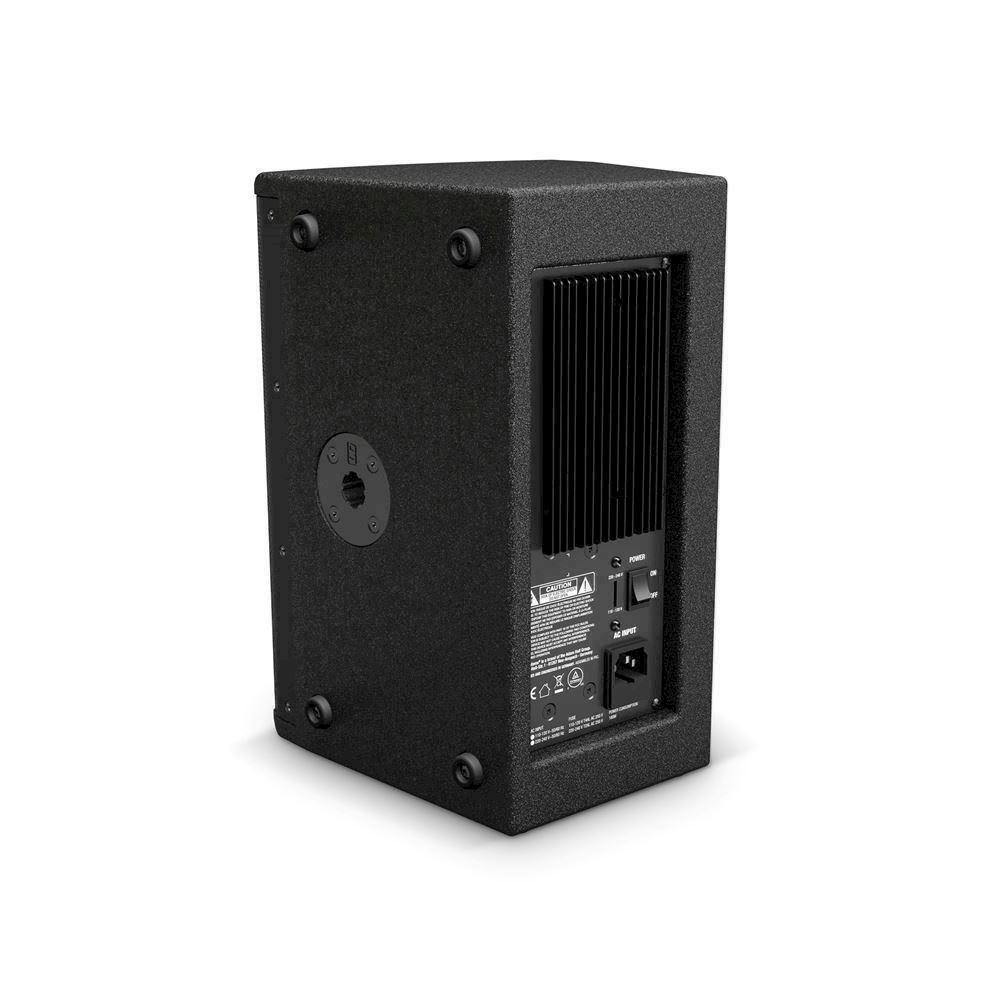

  • Dual 16 mm pole mounts for horizontal or vertical orientation

Product typePA loudspeaker
Typeactive
Woofer dimensions6.5 "
Woofer size165.1 mm
Woofer brandCustom-made
Tweeter dimensions1 "
Tweeter dimensions (mm)25.4 mm
Tweeter brandCustom-made
Dispersion (H x V)80 x 70 °
Frequency response80 - 20.000 Hz
AmplifierClass D
Amplifier output (RMS)2x70 W
Amplifier output (peak)2x280 W
Max. SPL122 dB
Protection circuitsICL (Intelligent Clip Limiting), over-current, overload, short circuit, thermal overload

Mixer

Channels4
Mic inputs3, 6.3 mm jack, XLR
Controls for Mic InputsDFX Send, EQ Hi, EQ Low, Hi-Z Switch (channel 1 only), level
Input Impedance Mic Inputs14 kOhm
Input Sensitivity Mic Input70 mV
Line inputs1
Line input connectors2 x RCA
Controls Line InputsEQ Hi, level, DFX Send, EQ Low
Input Impedance Line Inputs4.4 kOhm
Input Sensitivity Line Inputs- 5 dBu
Hi-Z inputs1
Hi-Z input connectors6.3 mm jack
Input Impedance Hi-Z Input Connectors100 kOhm
Monitor Line Outputs1
Connector Type Monitor Line Output2 x RCA
Controls for Monitor Line OutputMonitor Volume
Max Output Level Line Output Monitor28 dBu
Record Outputs1
Connector Type Record Output2 x RCA
Increased power main output (at 4 ohm)70 W

DSP Digital Effects Unit

DSP Number of Programs16
DSP ControlsDFX Return, Mute switch
DSP Display ElementsPeak LED

Main Section:

Main section controlsEQ Mid, Phantom Power, EQ Hi, EQ Low, Master Volume, voltage selector switch
Main section indicators4-segment Level Meter, power LED
Phantom power15 V

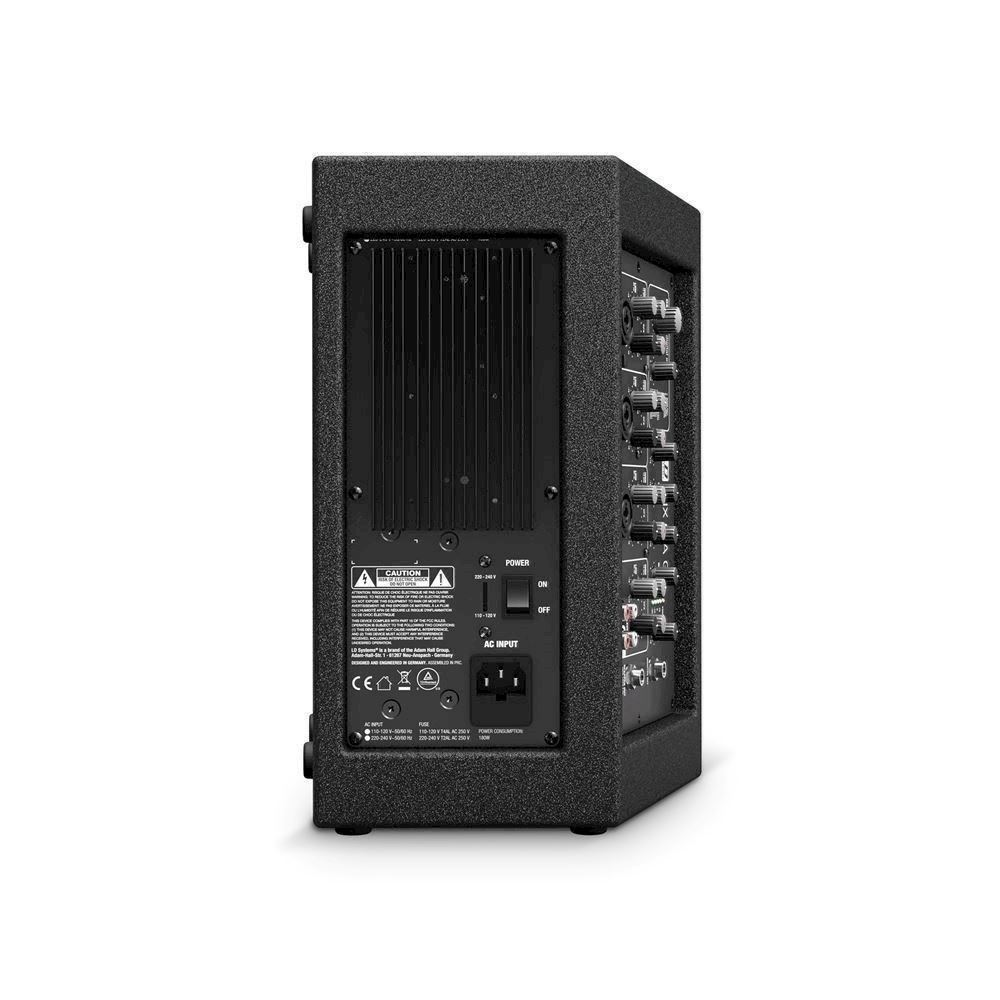

Mains connectorIEC socket
Operating voltagetransformer, 110 - 120 V ~ 50/60 Hz or 220 - 240 V ~ 50/60 Hz, switchable
Power consumption180 W

Cabinet

Cabinet constructionvented
Cabinet materialMDF
Cabinet surfacetexture paint
Cabinet colourBlack
Width214 mm
Height323 mm
Depth221 mm
Weight7 kg
Other features2 x 16 mm pole mount socket, rubber feet


Varenr.: A-LDMIX62AG3
