LD Active 2-Way Loudspeaker with Integrated 7-Channel Mixer - MIX 10 A G3

LD Active 2-Way Loudspeaker with Integrated 7-Channel Mixer - MIX 10 A G3
  • På lager
  • På lager, 3-8 dage
  • Bedømmelse for LD Active 2-Way Loudspeaker with Integrated 7-Channel Mixer - MIX 10 A G3
    Produktet er endnu ikke bedømt
  •
    3.352,50DKK ved 1 stk.
Vis uden moms

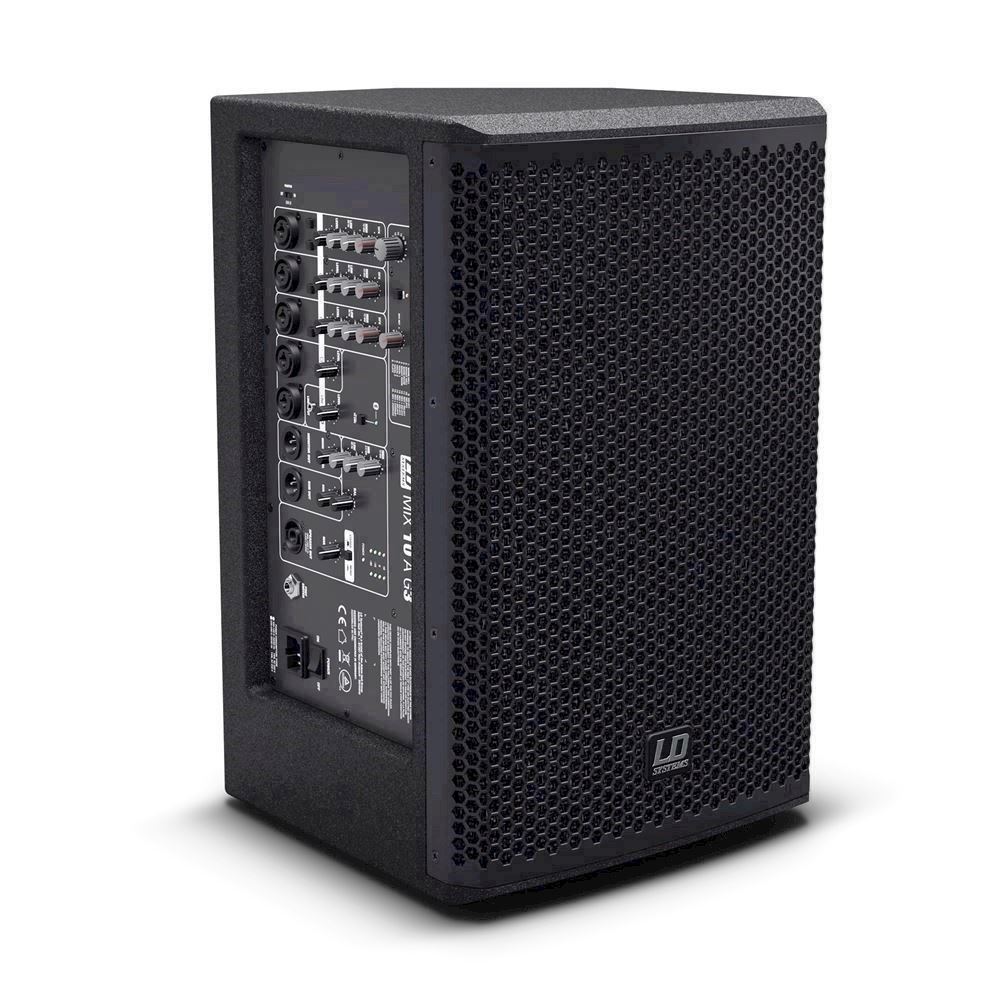

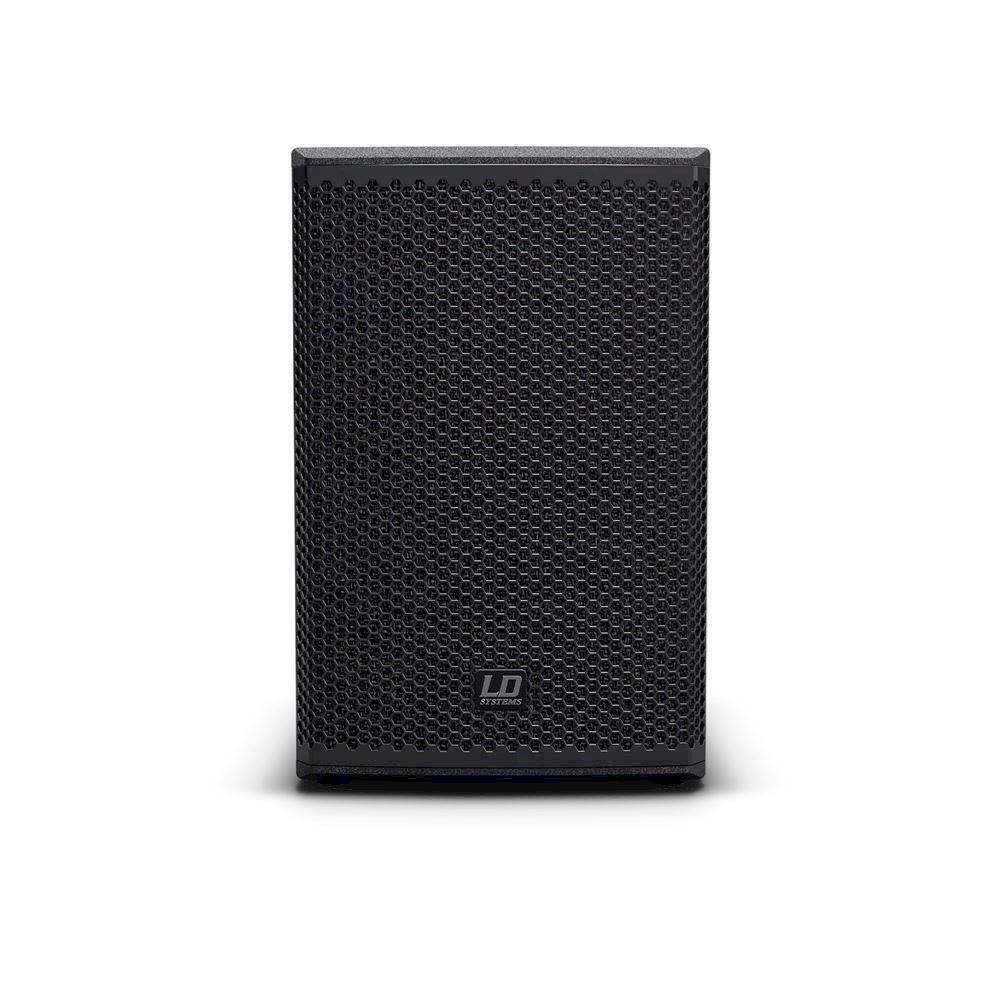

The ideal choice for small-scale PA and personal monitoring applications, the active LD MIX 10 A G3 integrates a 7-channel mixer and Class D amplification with 2 x 400 watts peak power. The compact bass reflex loudspeaker features a 10" custom woofer and 1" Celestion HF driver complement, 65 Hz to 20 kHz frequency response and 90° x 60° dispersion delivering crystal clear sound with punch and detail.

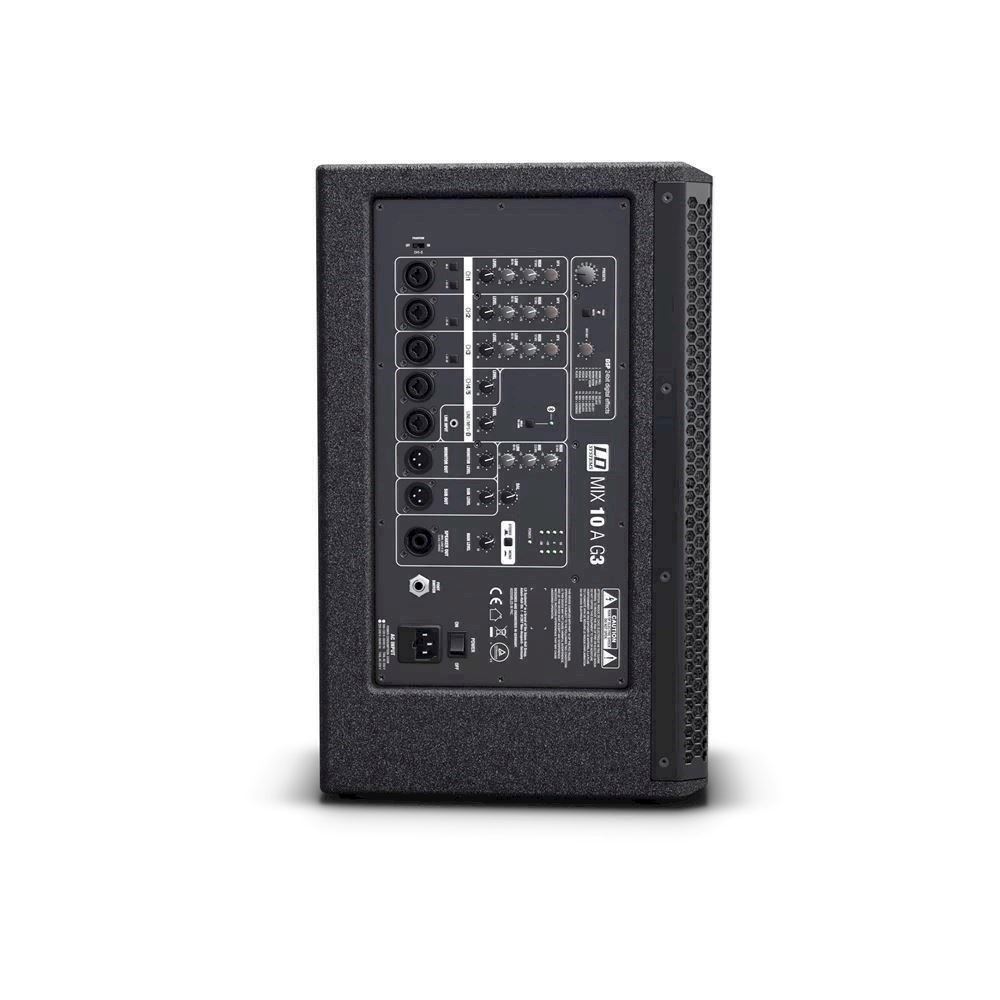

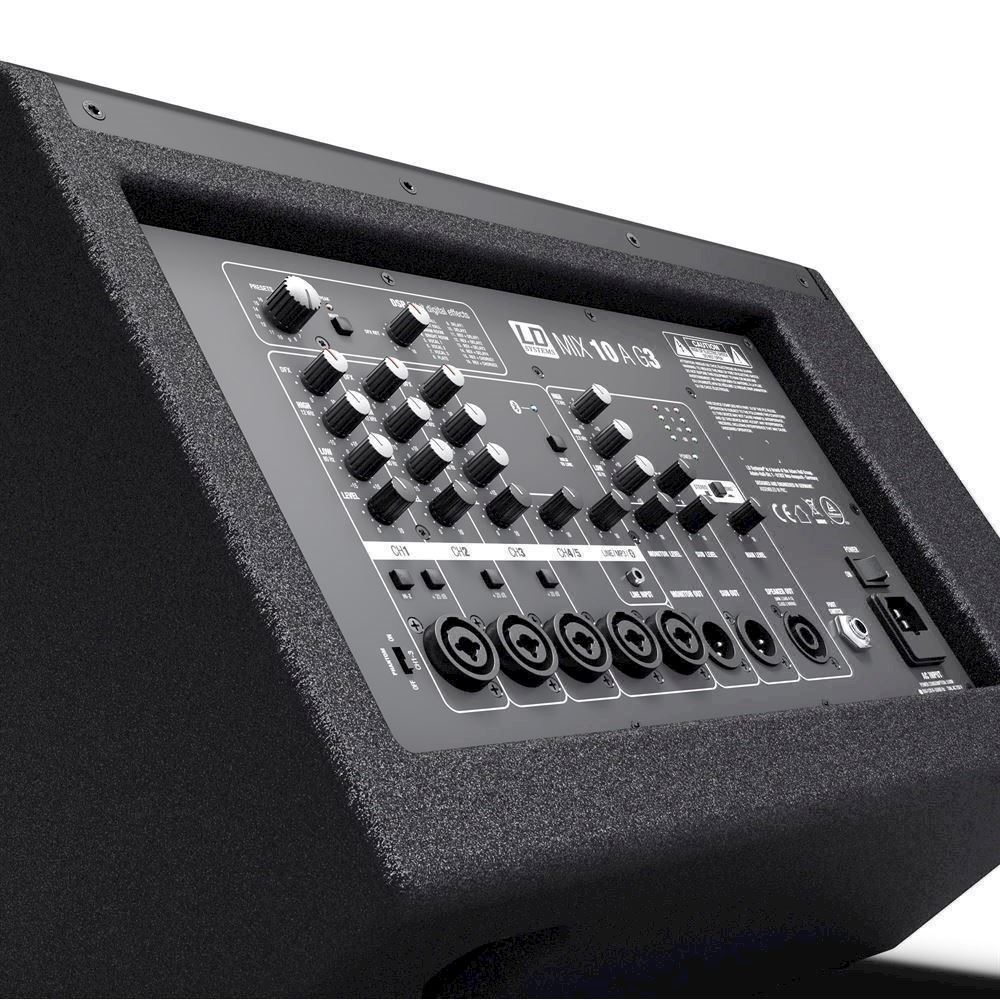

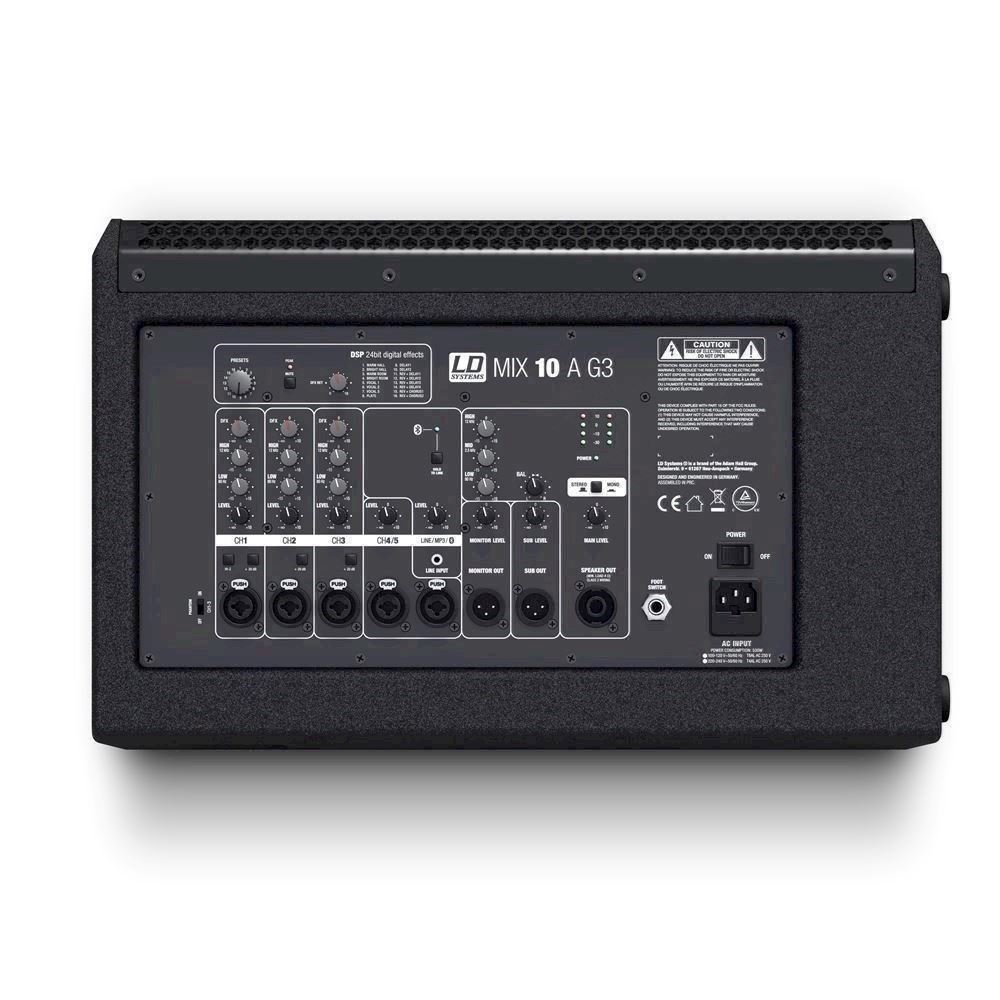

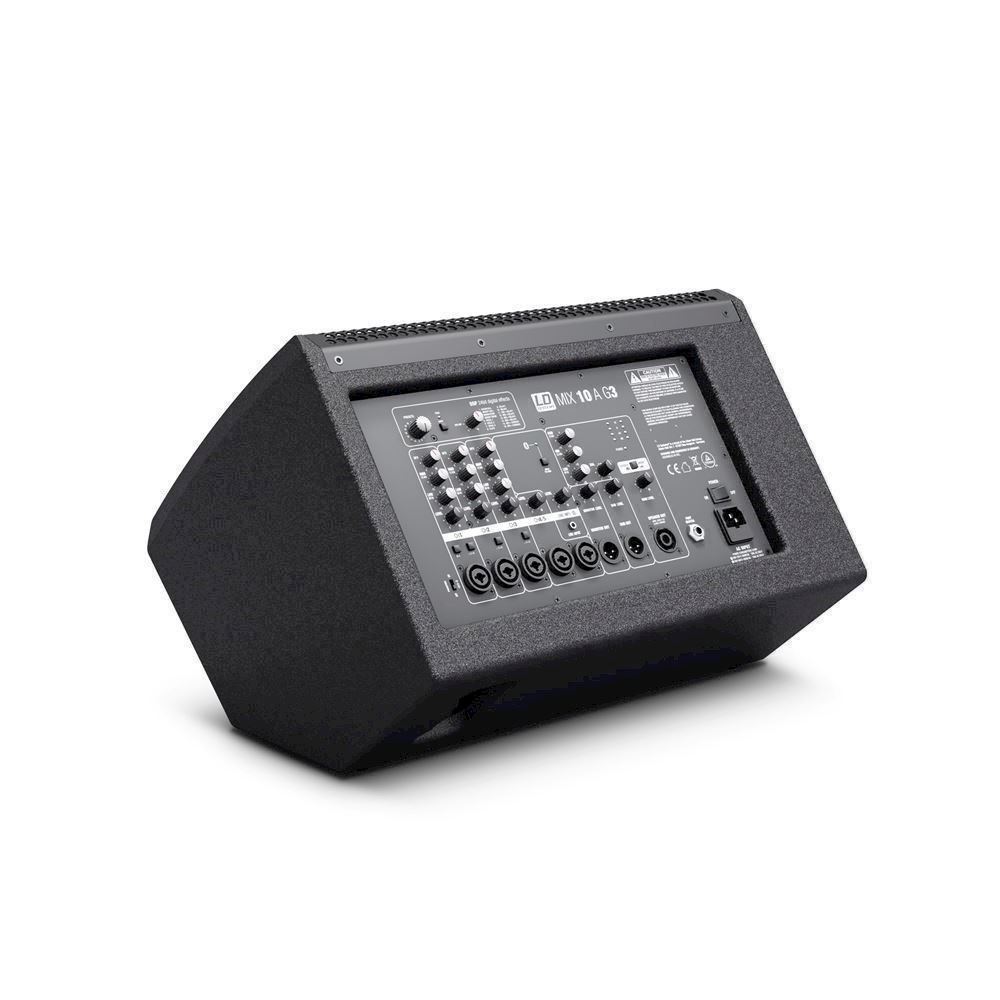

Accomodating a wide variety of input sources including electric instruments, smartphones, tablets, MP3 and CD players, the built-in mixer provides 3 microphone channels with 2-band EQ, 48 V phantom power plus switchable hi-Z input (CH1) and stereo line channel. The output section includes a 3-band master EQ for overall tone shaping, 4-segment LED metering and XLR monitor and subwoofer outputs. In addition, the LD MIX 10 A G3 sports a DSP with 16 effect presets, limiter and overcurrent, overload, short circuit and thermal protection. A speakON output allows powering the passive LD MIX 10 G3 to easily create a stereo setup.

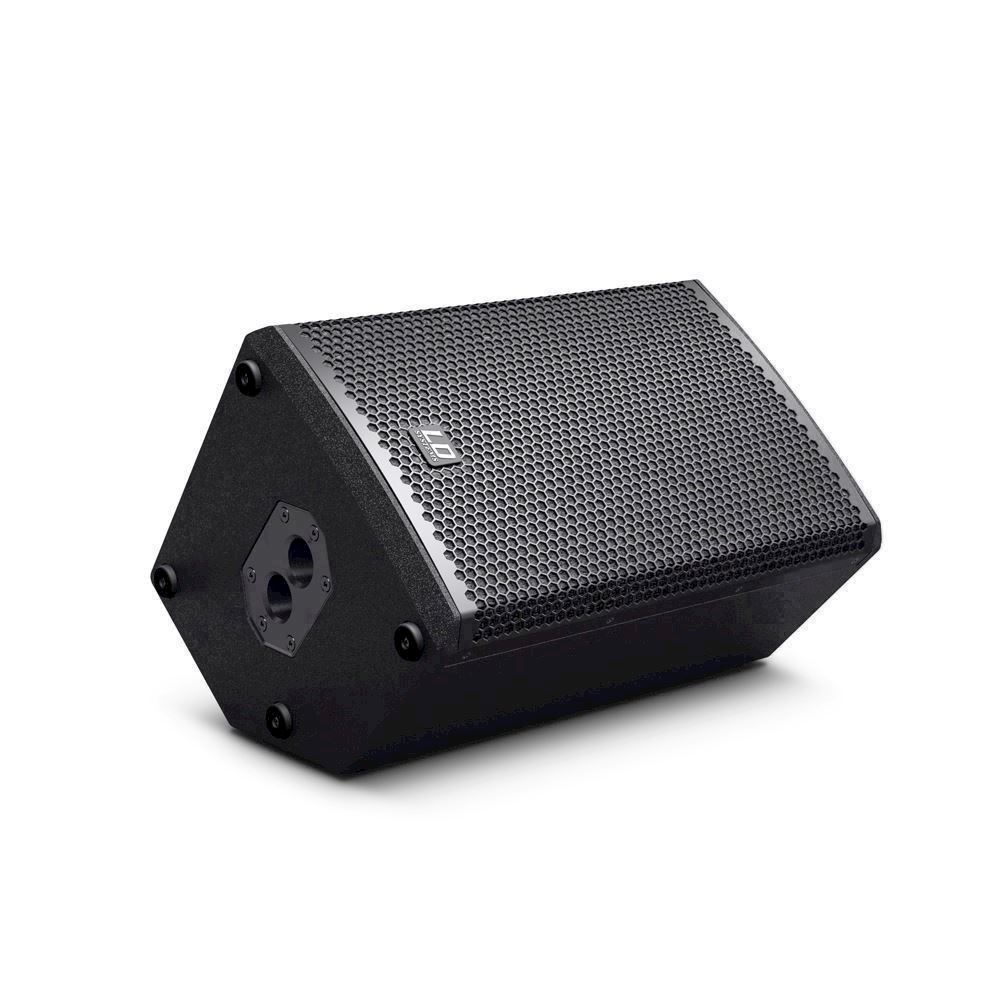

The rigid enclosure is constructed with tough plywood featuring a 50° monitor angle and Dual-Tilt pole receptacle for 0° or 5° mounting angles. On its own or in tandem with the passive unit, the LD MIX 10 A G3 provides amazing performance and versatility in a lightweight, easily portable package.



  • 2 x 200 watts RMS class D amplification
  • 10” custom woofer and 1” Celestion HF driver
  • Integrated 7-channel mixer
  • DSP with 16 FX Presets
  • Bluetooth® audio streaming
  • Standalone mono or stereo applications with LD MIX 10 G3
  • Subwoofer and monitor outputs
  • Rigid plywood enclosure
  • Dual-Tilt pole mount for 0° or 5° orientation

Product typePA loudspeaker
Typeactive
Woofer dimensions10 "
Woofer size254 mm
Woofer brandCustom-made
Tweeter dimensions1 "
Tweeter dimensions (mm)25.4 mm
Tweeter brandCelestion
Dispersion (H x V)80 x 70 °
Frequency response65 - 20.000 Hz
AmplifierClass D
Amplifier output (RMS)2 x 200 W
Amplifier output (peak)2 x 400 W
Max. SPL124 dB
Protection circuitsover-current, thermal overload, limiter, overload, short circuit

Mixer

Channels7
Mic inputs3, 6.3 mm jack, XLR
Controls for Mic InputsDFX Send, EQ Low, + 10 dB switch, EQ Hi, Hi-Z Switch (channel 1 only), level
Line inputs2
Line input connectors3.5mm TRS, 2 x XLR
Controls Line Inputslevel
Hi-Z inputs1
Hi-Z input connectors6.3 mm jack
Input Impedance Hi-Z Input Connectors1000 kOhm
Monitor Line Outputs2
Connector Type Monitor Line OutputXLR
Controls for Monitor Line OutputMonitor Volume, Sub level
Max Output Level Line Output Monitor17 dBu
Record Outputs1
Increased power main output (at 4 ohm)200 W

DSP Digital Effects Unit

DSP Number of Programs16
DSP Controlspresets, DFX Return, footswitch, Mute switch
DSP Display ElementsPeak LED

Main Section

Main section controlsBalance, EQ Low, EQ Mid, Master Volume, mono/stereo, switch operating voltage, EQ Hi, Phantom Power, Power On/Off
Main section indicatorspower LED, 4-segment Level Meter
Phantom power48 V
Mains connectorIEC socket
Operating voltageSMPS, 110 - 120 V ~ 50/60 Hz or 220 - 240 V ~ 50/60 Hz, automatic switching
Power consumption500 W

Cabinet

Cabinet constructionvented
Cabinet material16 mm Plywood
Cabinet surfacetexture paint
Cabinet colourBlack
Width315 mm
Height489 mm
Depth307 mm
Weight12,3 kg
Other featuresdual-tilt flange (0°/5°), Ergonomic handle, Bluetooth




Varenr.: A-LDMIX102AG3
