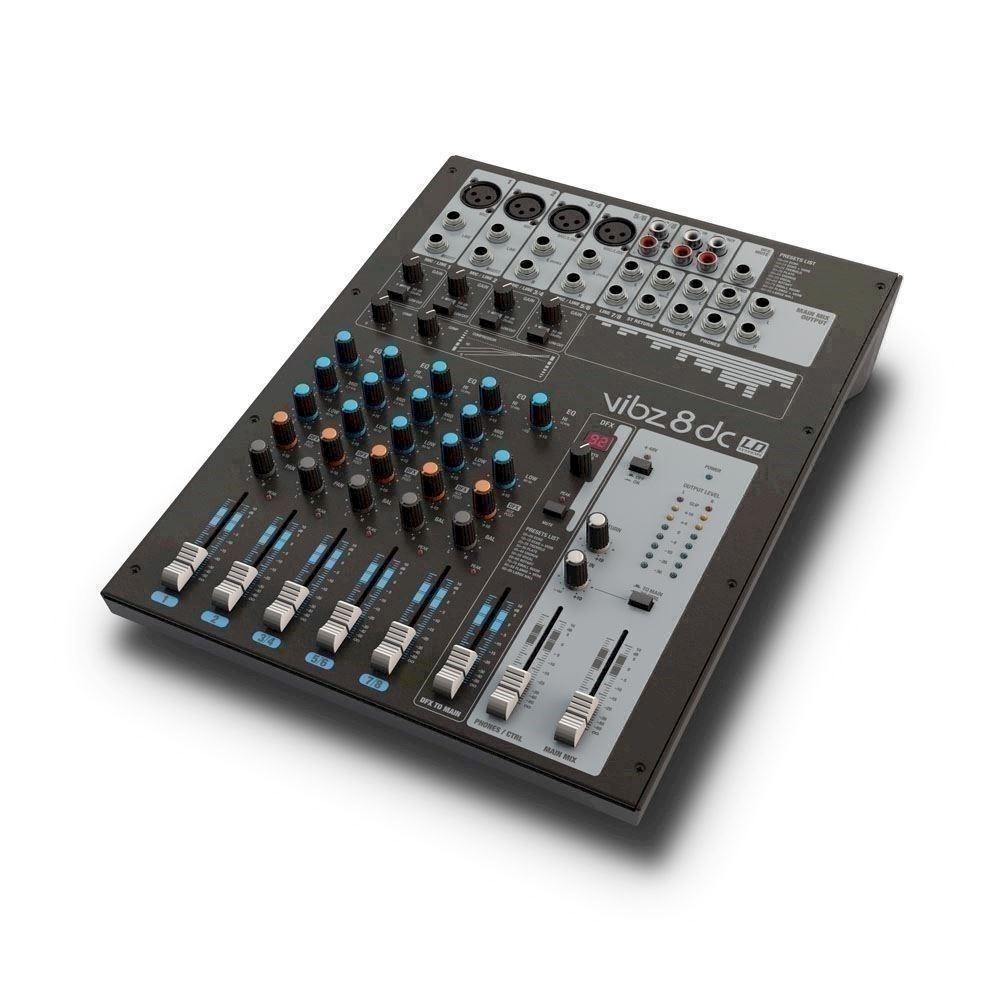

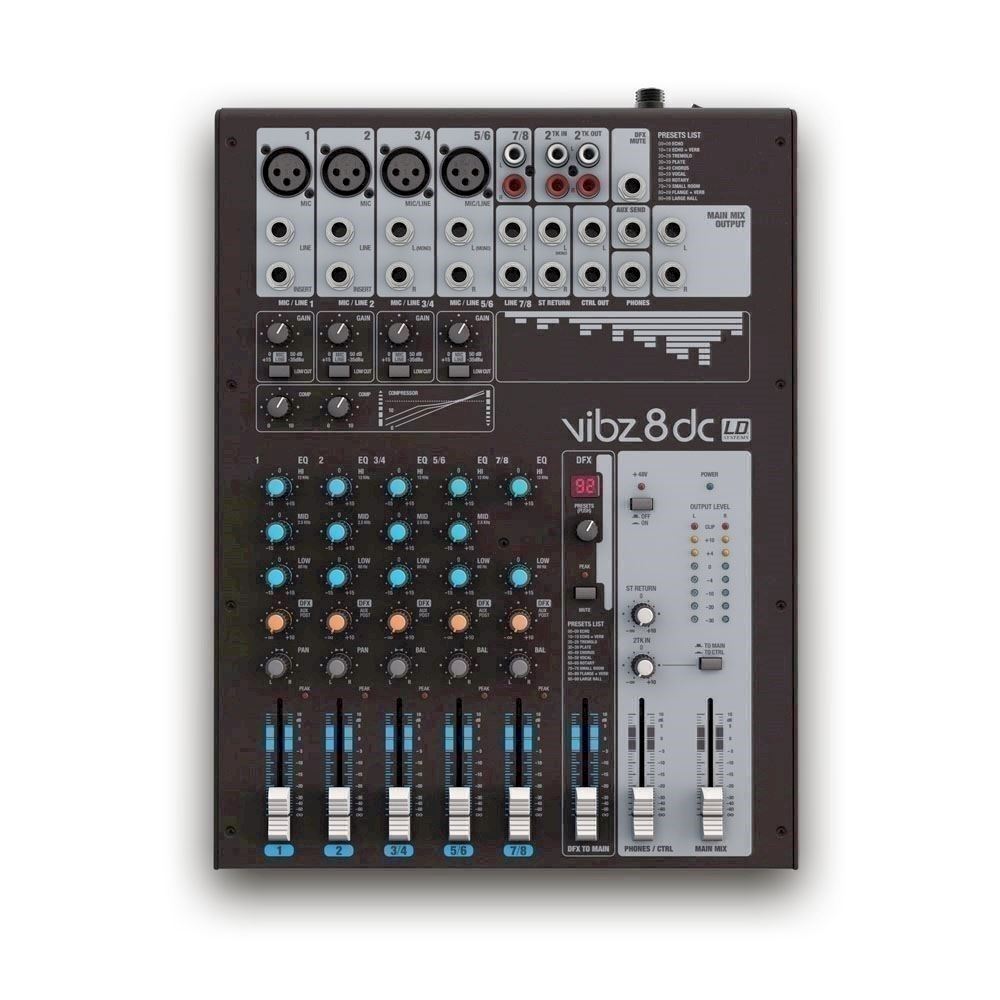

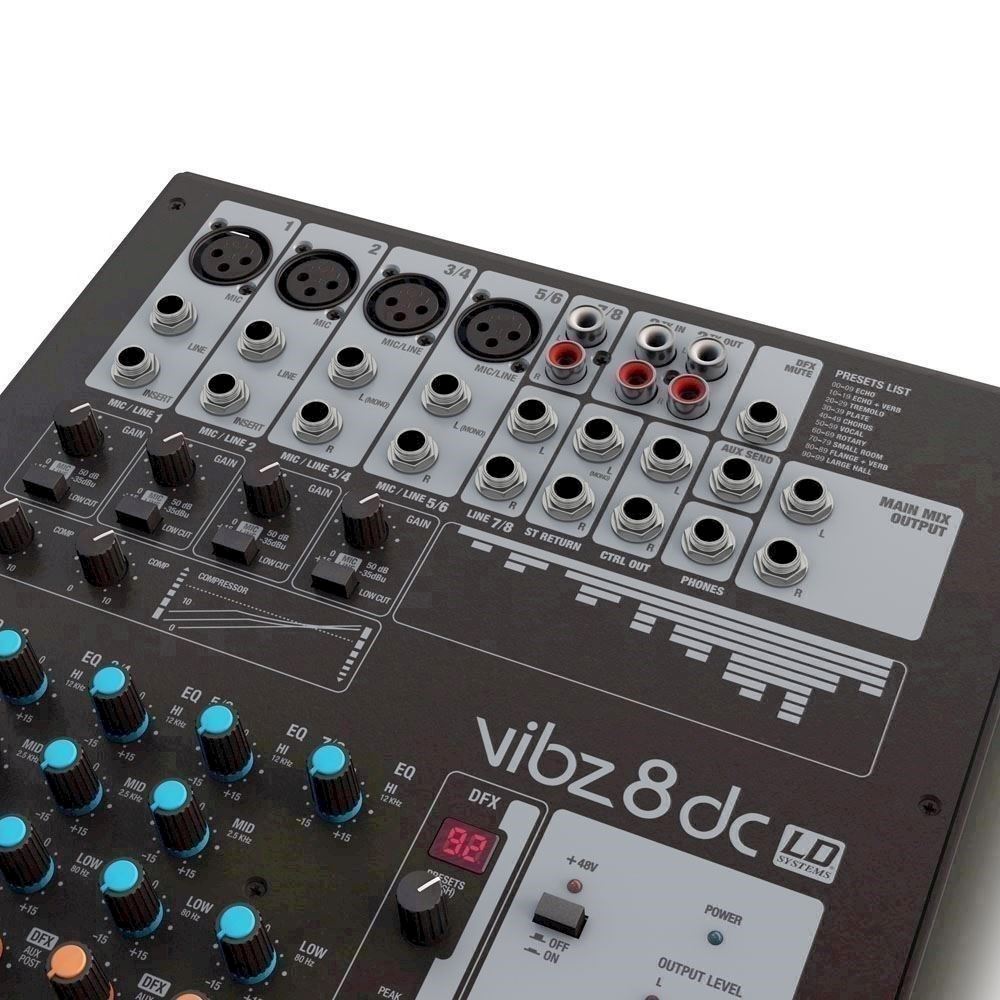

LD 8 channel Mixing Console with DFX and Compressor - VIBZ 8 DC

LD 8 channel Mixing Console with DFX and Compressor - VIBZ 8 DC
  • Ikke på lager
  • Forventet levering om 6 uger
  • Bedømmelse for LD 8 channel Mixing Console with DFX and Compressor - VIBZ 8 DC
    Produktet er endnu ikke bedømt
  •
    1.939,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner






Four balanced microphone inputs with high-quality preamplifiers, mono compatible stereo channels, an integrated compressor and 100 digital effects with 24-bit resolution turn the VIBZ 8 into a flexible sound control unit.

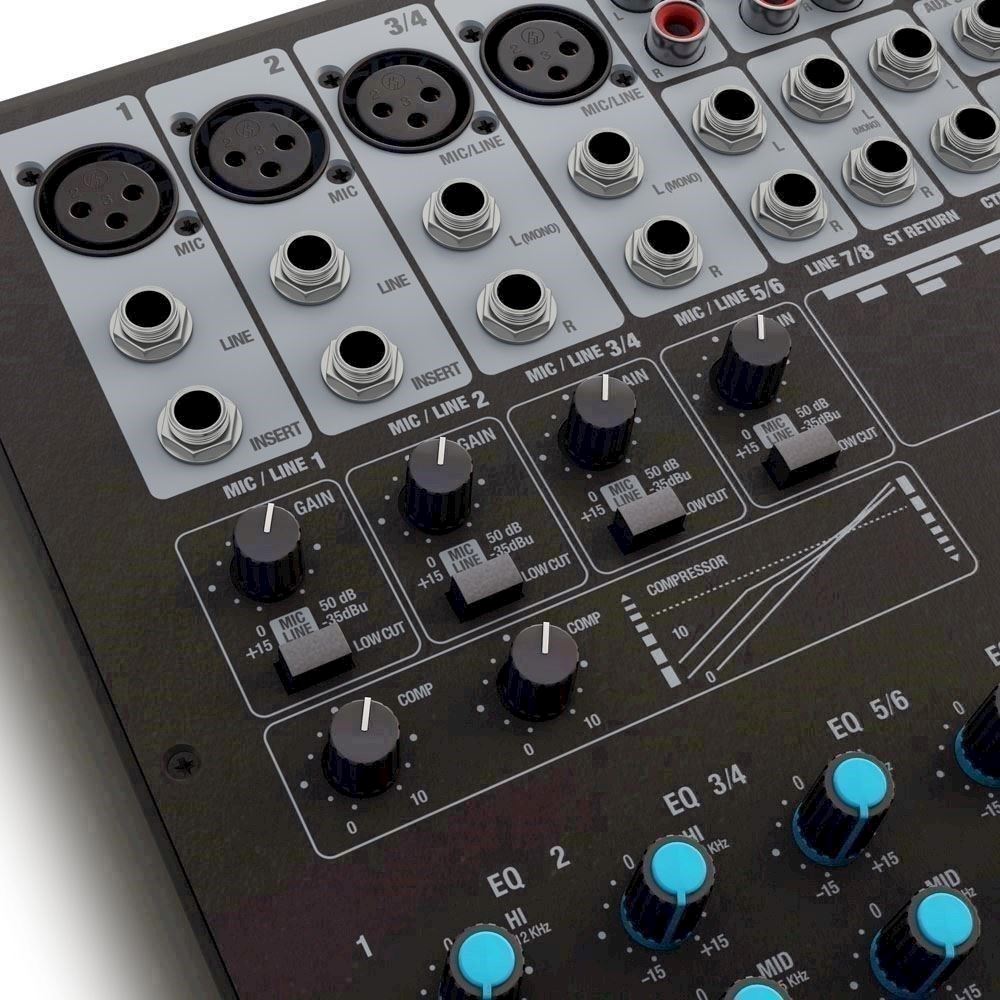

The microphone channels are switchable to line level and are equipped with high-quality preamplifiers and a reduction in bass; two of them also feature inserts for individual signal processing. For an effective sound adjustment, the VIBZ 8 has very precise 3-band EQs with practical selectable mids.

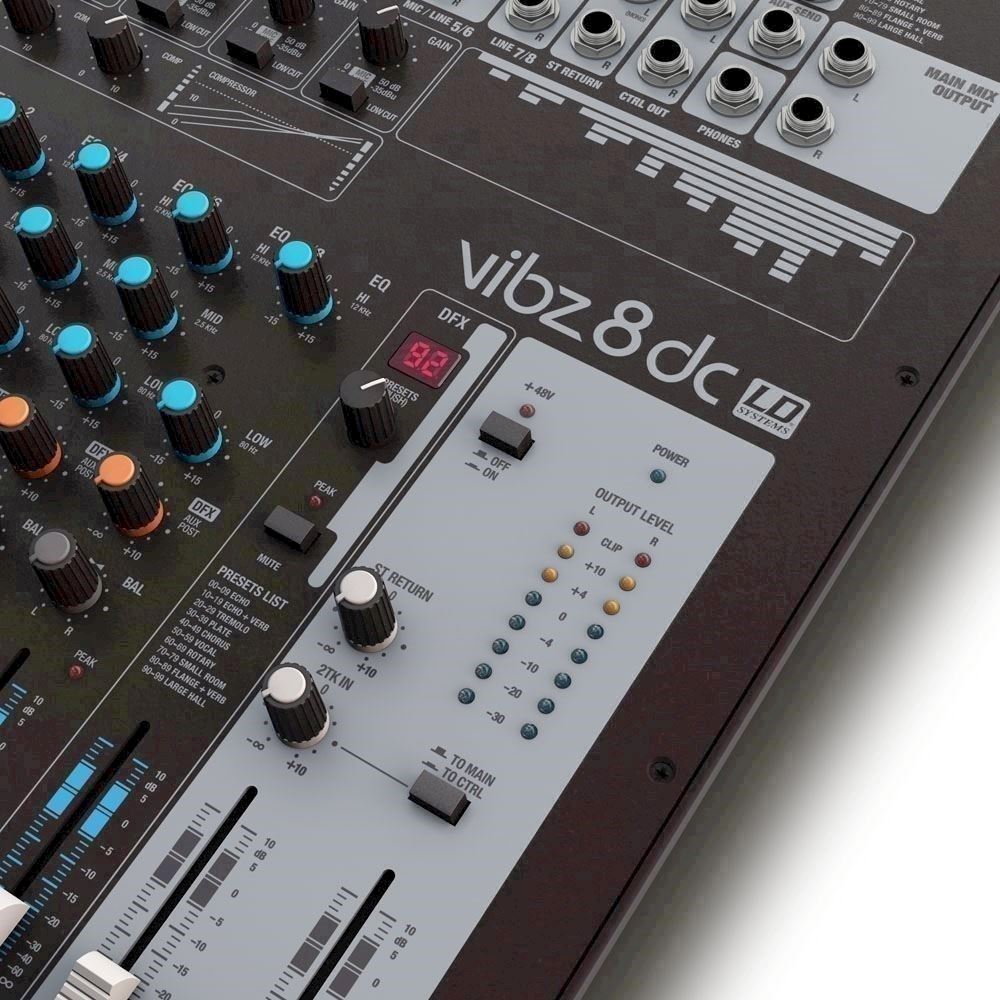

The master section of the mixer features an effects loop, adjustable monitor outputs and a headphone jack. The VIBZ 8 also has inputs and outputs for recording and playback devices, is extremely easy to use and impresses with its transparent and detailed sound. It is ideal for small bands, installations, home recording, and for use as a sub-mixer.

It comes with an external power supply that can be tightly secured to the mixer. A foot switch for the effects section and an adapter for mounting the VIBZ 8 on microphone stands are available as accessories.





  • 8-channel mixer with 100 digital effects presets
  • 4 microphone channels and 3 stereo line inputs
  • Effective 3-band EQ
  • Sliding adjustable compressor
  • Master, Monitor and headphone outputs

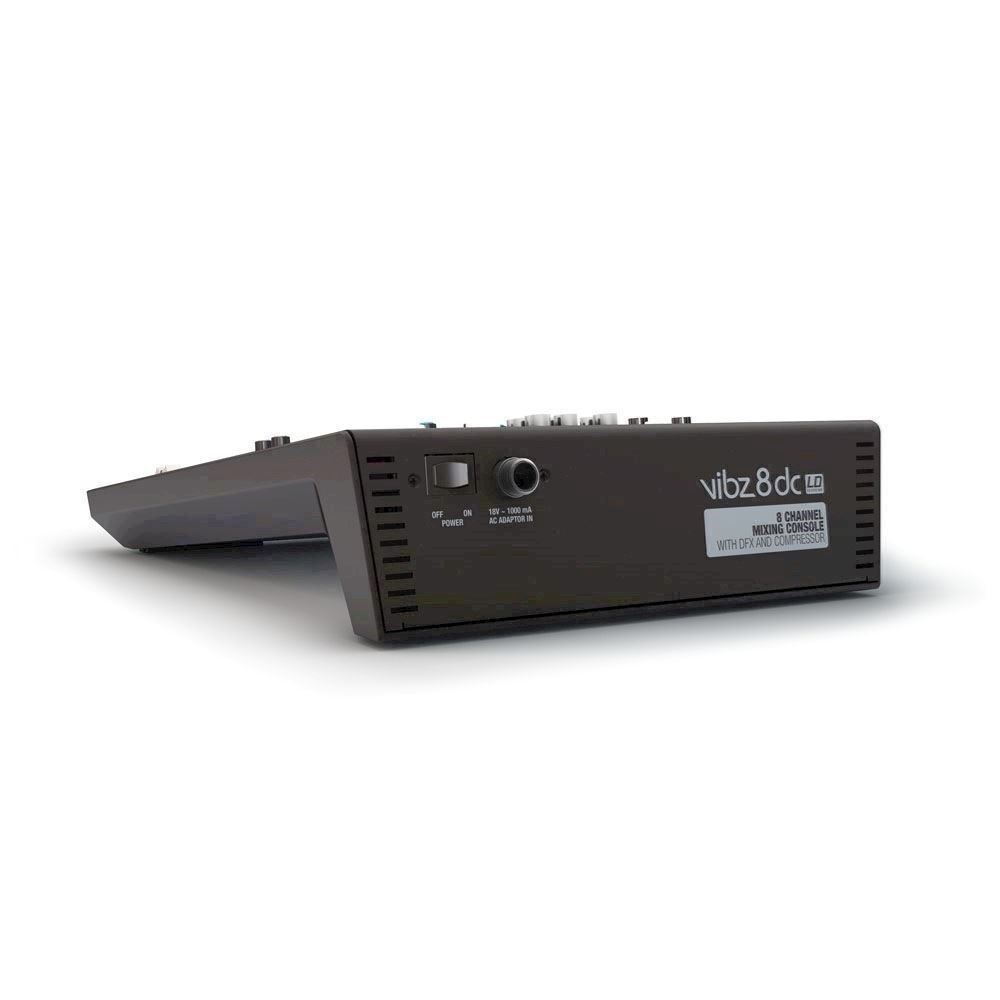

  • Securely fastening external power supply

Product typeMixers
TypeLive
Channels8

Mono Channels:

Mono Mic and Line Input Channels4
Mono Mic input connectors6.3 mm TRS, XLR
Channel Inserts2
Channel Insert Connectors6.3 mm TRS
Mono Mic Input Typeelectronically balanced
Mono Mic Input Frequency Range10 - 45000 Hz
Amplification Range mono Mic Input0 - 50 dB
Mono Mic Input Input THD-N0.0058%
Mono Mic Input Impedance4k Ohm(s)
Mono Mic Input S/N Ratio113 dB
Mono Line Input Typeelectronically balanced
Mono Line Input Frequency Range10 - 45000 Hz
Amplification Range mono Line Input0 - 50 dB
Mono Line Input Input THD-N0.0045 %
Mono Line Input Impedance21k Ohm(s)
Mono Line Input S/N Ratio113 dB
Mono Channel Equalizer High+/- 15 dB @ 12000 Hz
Mono Channel Equalizer Mid+/- 15 dB @ 2500 Hz
Mono Channel Equalizer Low+/- 15 dB @ 80 Hz
Controls Mono Mic and Line Input ChannelsGain, Low Cut (75 Hz), 3-band EQ (High, Mid, Low), AUX (DFX) Post, Channel Volume, Compressor (channel 1+2), pan
Phantom power48 V DC switchable

Stereo Channels:

Stereo Line Input Channels3
Stereo Line Input Connectors6.3 mm TRS
Stereo Line Input Typeunbalanced
Stereo Line Input Frequency Range10 - 45000 Hz
Amplification Range stereo Line Input0 - 50 dB
Stereo Line Input Input THD-N0.0045 %
Stereo Line Input Impedance3,7k Ohm(s)
Stereo Line Input S/N Ratio116 dB
Stereo channel equalizer treble+/- 15 dB @ 12000 Hz
Stereo channel equalizer mids+/- 15 dB @ 2500 Hz
Stereo channel equalizer bass+/- 15 dB @ 80 Hz
Controls Stereo Line Input Channels2-band EQ (High,Low), 3-band EQ (High, Mid, Low), AUX (DFX) Post, Balance, Channel Volume, Low Cut, Gain

Main Section:

AUX / Effects Send Channels1
AUX / Effects Send Connectors6.3 mm stereo jack unbalanced
Stereo AUX Return Channels1 x stereo
Stereo AUX Return Connectors2 x 6.3 mm TRS
Stereo Tape Out Channel1 x stereo
Stereo Tape Out Connectors2 x RCA (Cinch)
Stereo Tape In Channel1 x stereo
Stereo Tape In Connenctors2 x RCA (Cinch)
Unbalanced stereo Main Outputs1
Unbalanced stereo Main Output Connections6.3 mm TRS
Unbalanced Stereo Main Out Impedance120 Ohm(s)
Max. Unbalanced Stereo Main Out Level20 dBu
Stereo Control Room Out1
Stereo Control Room Out Connectors6.3 mm TRS
Headphones ouput1
Headphones outputs6.3 mm TRS
Digital Effects ProcessorYes, 24-bit AD/DA Resolution
Number of Presets100
Footswitch Connector DFX Mute6.3 mm TRS
Main section controlsDFX Mute Schalter, Phantom Power, Phones / Control Room Volume, DFX Presets, DFX To Main Volume, Master Volume, Stereo Return Volume
Indicators8-segment Level Meter, Phantom Power, Channel Peak, DFX Peak / Mute, Power
Operating voltage18 V AC - 1 A, External PSU
Width265 mm
Height78 mm
Depth352 mm
Weight2,3 kg




Varenr.: A-LDVIBZ8DC
