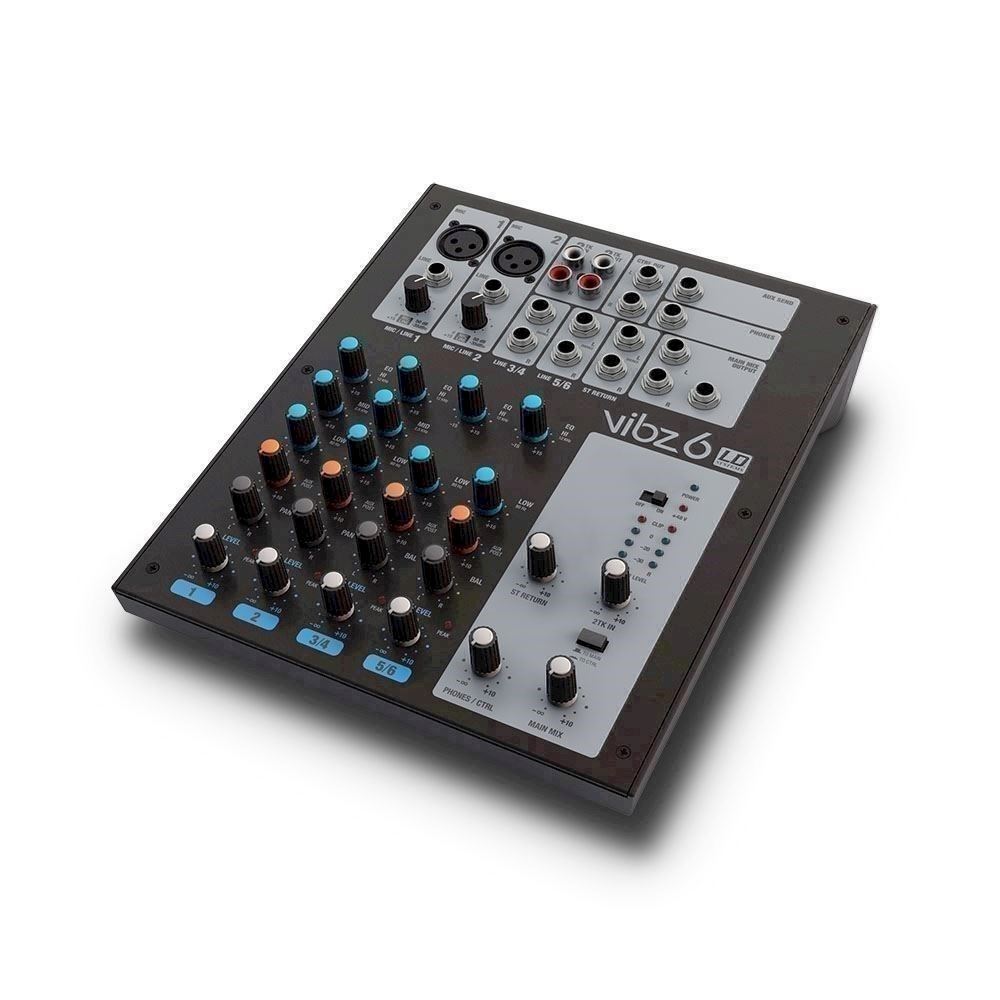

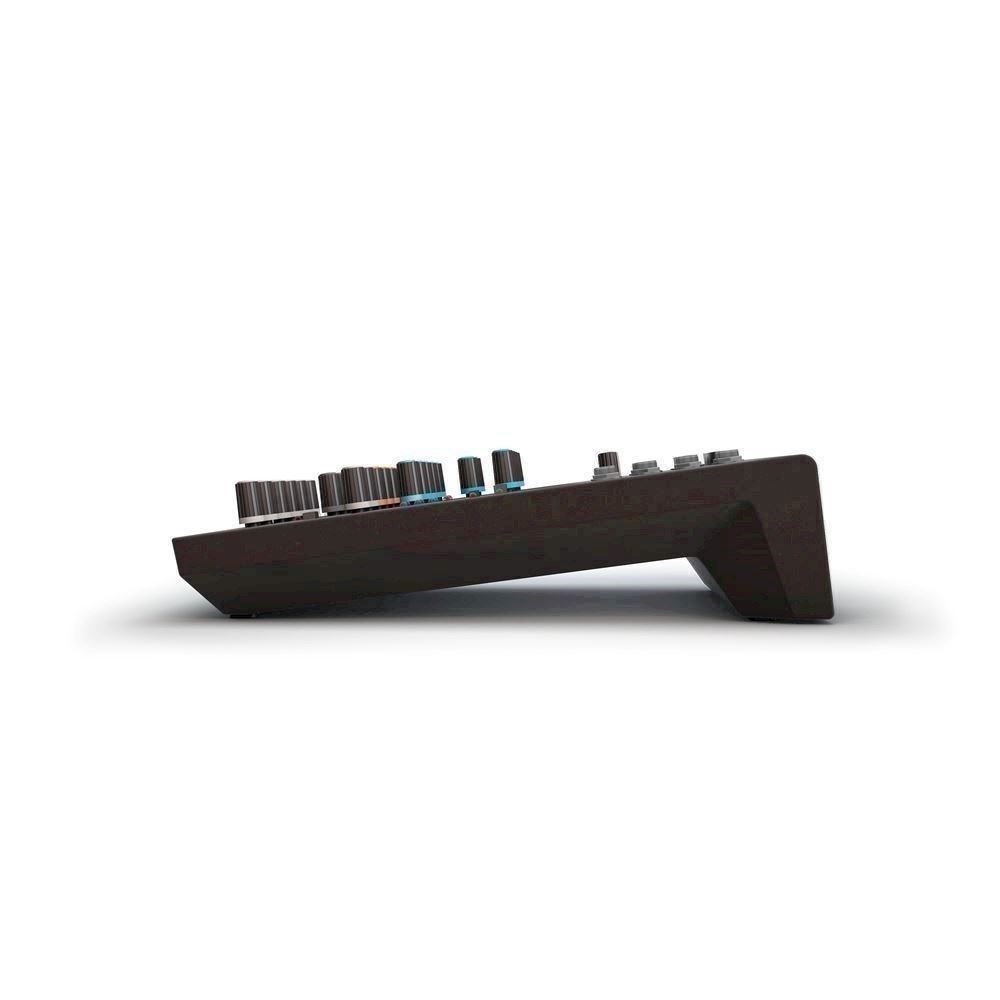

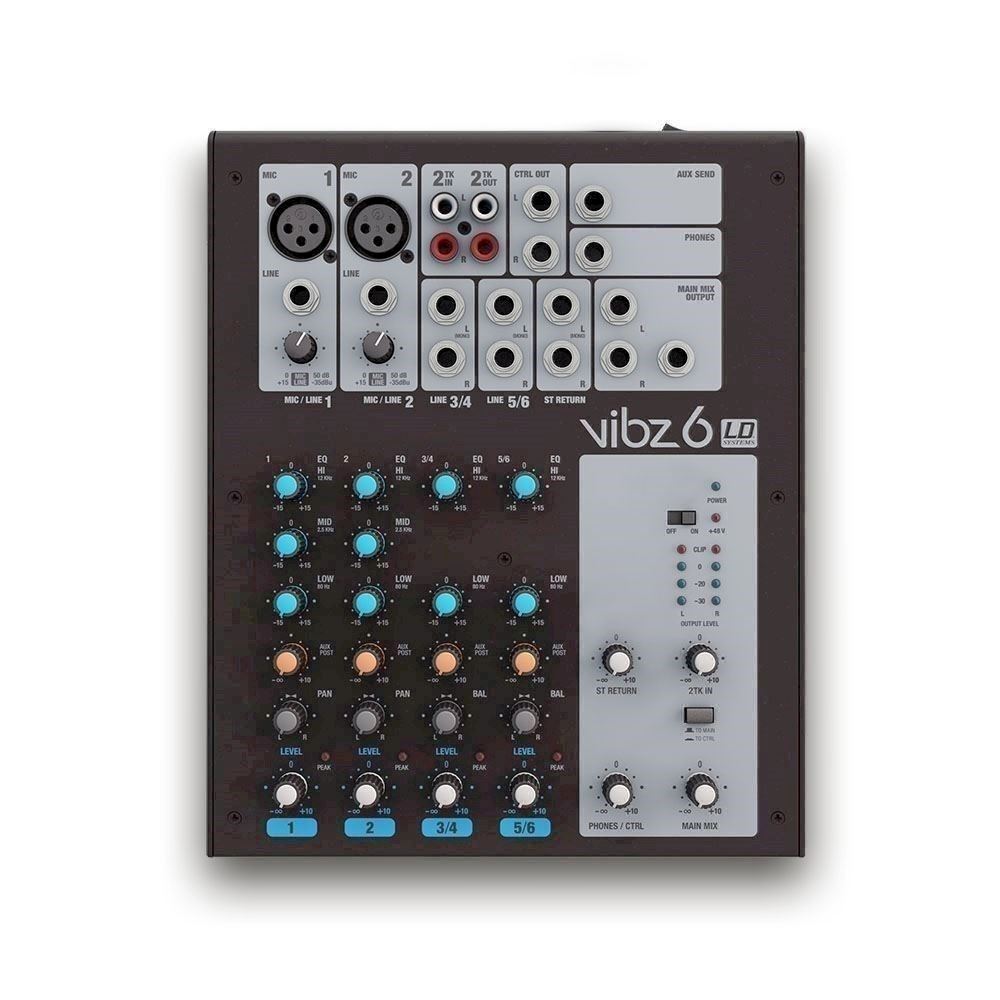

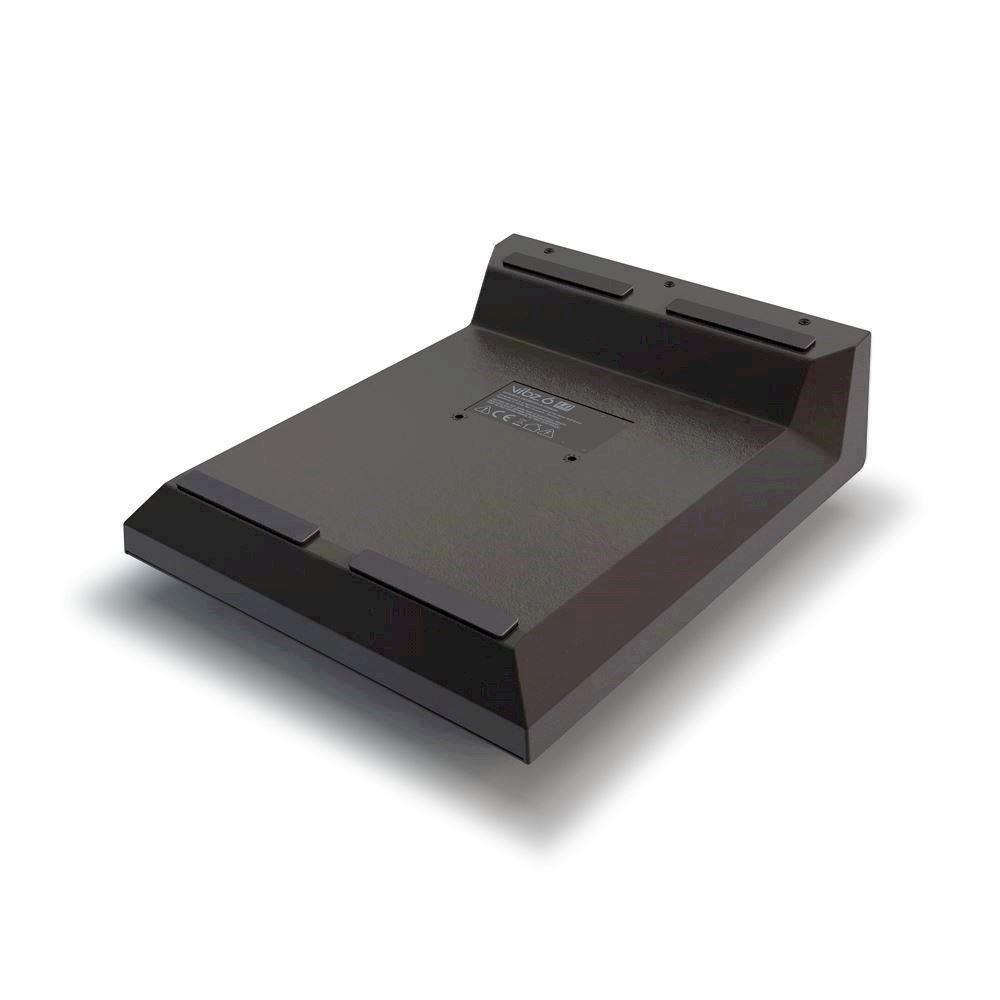

LD 6 channel Mixing Console - VIBZ 6

LD 6 channel Mixing Console - VIBZ 6
  • På lager
  • På lager, 3-8 Hverdage
  • Bedømmelse for LD 6 channel Mixing Console - VIBZ 6
    Produktet er endnu ikke bedømt
  •
    1.049,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner






The VIBZ 6 is a compact 6-channel mixer which is perfectly suited to entertainers, small bands, home recording and installations. It features two balanced microphone inputs with high quality preamps, phantom power and 3-band EQ with +/-15 dB adjustment scope, two stereo line inputs with 2-band EQ, which are mono-compatible.

The master section of the VIBZ 6 is equipped with adjustable monitor outputs and a headphone jack. The mixer also has inputs and outputs for recording and playback devices, is extremely easy to use and offers a warm differentiated sound. The external power supply can be screwed on tightly.

An adapter for mounting the VIBZ 6 on microphone stands are available as accessories.

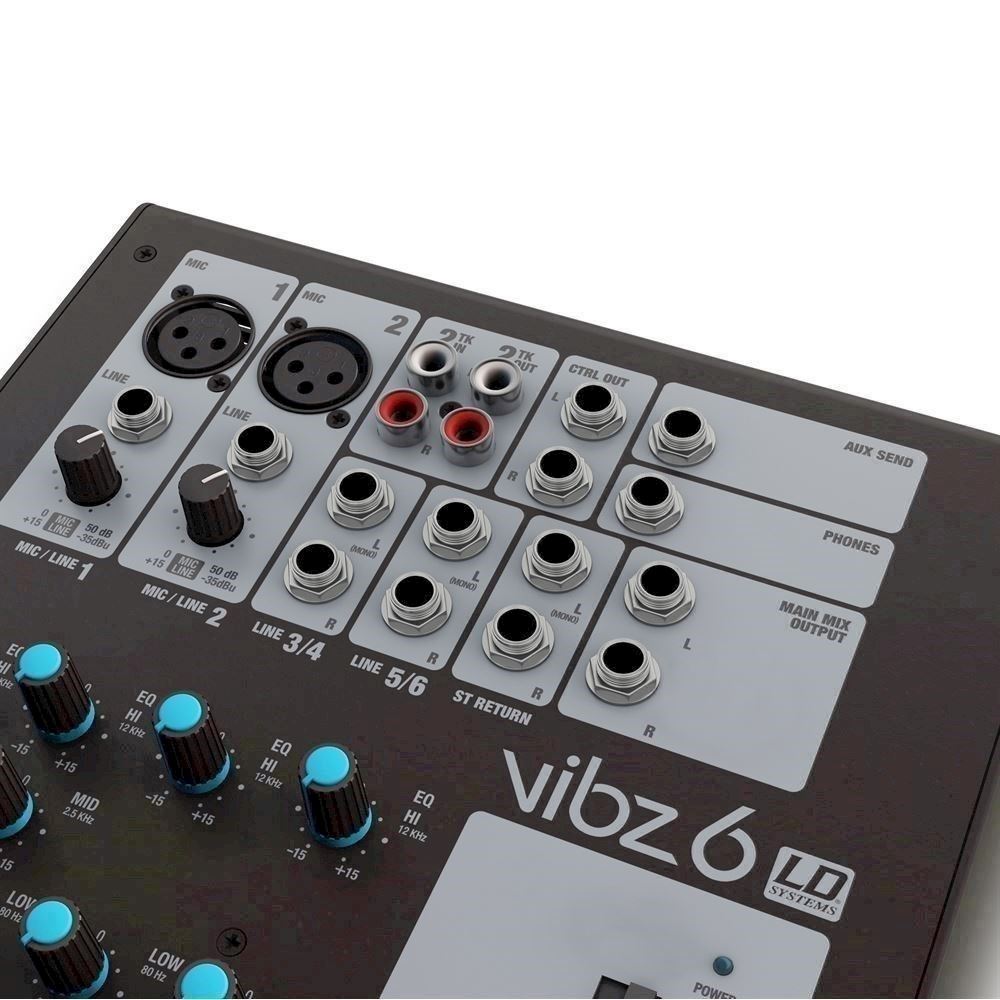

6-channel mixer

2 microphone channels with 3-band EQ

2 mono-compatible stereo line channels with 2-band EQ

Master, Monitor and headphone outputs

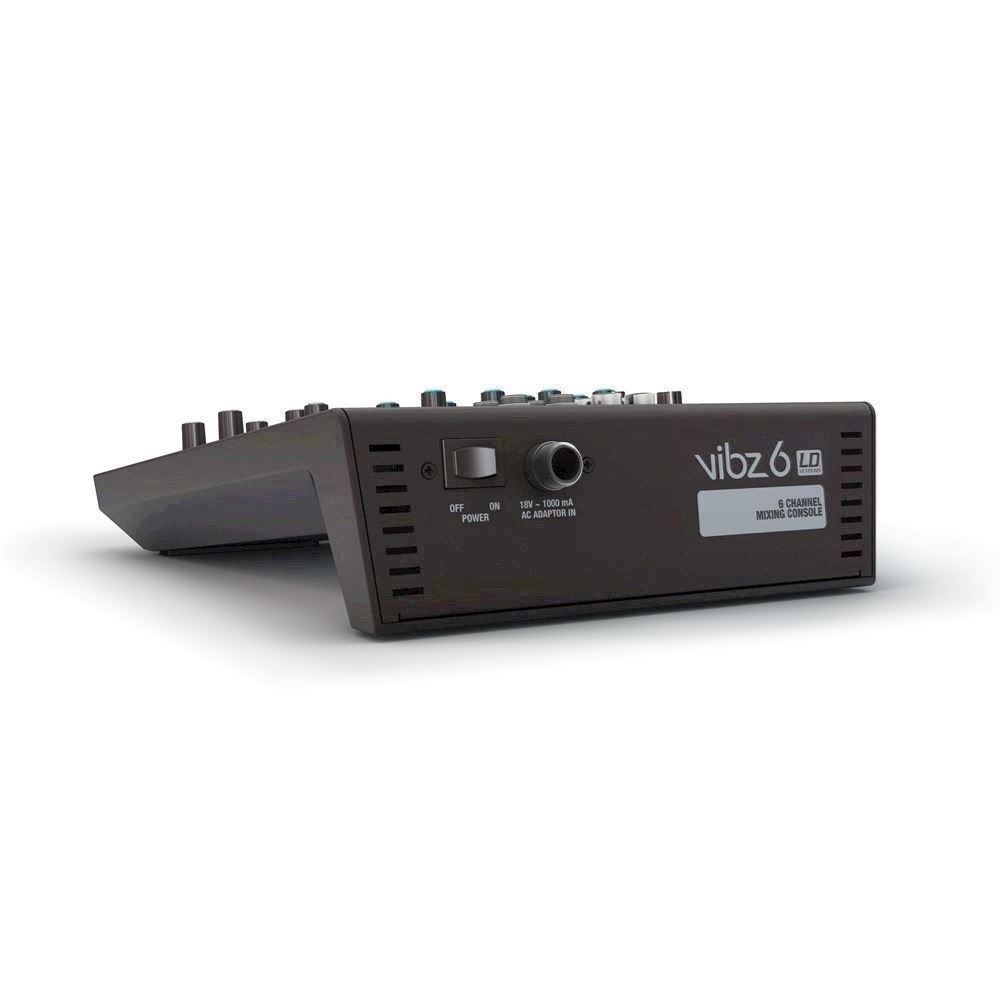

Securely fastening external power supply


Product typeMixers
TypeLive
Channels6

Mono Channels:

Mono Mic and Line Input Channels2
Mono Mic input connectors6.3 mm TRS, XLR
Mono Mic Input Typeelectronically balanced
Mono Mic Input Frequency Range10 - 45000 Hz
Amplification Range mono Mic Input0 - 50 dB
Mono Mic Input Input THD-N0.0058%
Mono Mic Input Impedance4k Ohm(s)
Mono Mic Input S/N Ratio113 dB
Mono Line Input Typeelectronically balanced
Mono Line Input Frequency Range10 - 45000 Hz
Amplification Range mono Line Input0 - 50 dB
Mono Line Input Input THD-N0.0045 %
Mono Line Input Impedance21k Ohm(s)
Mono Line Input S/N Ratio116 dB
Mono Channel Equalizer High+/- 15 dB @ 12000 Hz
Mono Channel Equalizer Mid+/- 15 dB @ 2500 Hz
Mono Channel Equalizer Low+/- 15 dB @ 80 Hz
Controls Mono Mic and Line Input ChannelsGain, pan, 3-band EQ (High, Mid, Low), AUX Post, Channel Volume
Phantom power48 V DC switchable

Stereo Channels:

Stereo Line Input Channels2
Stereo Line Input Connectors6.3 mm TS
Stereo Line Input Typeunbalanced
Stereo Line Input Frequency Range10 - 45000 Hz
Stereo Line Input Input THD-N0.0045 %
Stereo Line Input Impedance3,7k Ohm(s)
Stereo Line Input S/N Ratio116 dB
Stereo channel equalizer treble+/- 15 dB @ 12000 Hz
Stereo channel equalizer bass+/- 15 dB @ 80 Hz
Controls Stereo Line Input Channels2-band EQ (High,Low), Balance, AUX Post, Channel Volume

Main Section:

AUX / Effects Send Channels1
AUX / Effects Send Connectors6.3 mm stereo jack unbalanced
Stereo AUX Return Channels1 x stereo
Stereo AUX Return Connectors2 x 6.3 mm TRS
Stereo Tape Out Channel1 x stereo
Stereo Tape Out Connectors2 x RCA (Cinch)
Stereo Tape In Channel1 x stereo
Stereo Tape In Connenctors2 x RCA (Cinch)
Unbalanced stereo Main Outputs1
Unbalanced stereo Main Output Connections6.3 mm TRS
Unbalanced Stereo Main Out Impedance120 Ohm(s)
Max. Unbalanced Stereo Main Out Level+20 dBu
Stereo Control Room Out1
Stereo Control Room Out Connectors6.3 mm stereo jack unbalanced
Headphones ouput1
Headphones outputs6.3 mm TRS
Digital Effects Processorno
Main section controls2-track Assignment (Main, Contr. Room), Master Volume, Phantom Power, 2-track In Volume, Phones / Control Room Volume, Stereo Return Volume
Indicators4-segment Level Meter, Channel Peak, Phantom Power, Power
Operating voltage18 V AC - 1 A, External PSU
Width210 mm
Height67 mm
Depth262 mm
Weight1,45 kg




Varenr.: A-LDVIBZ6
