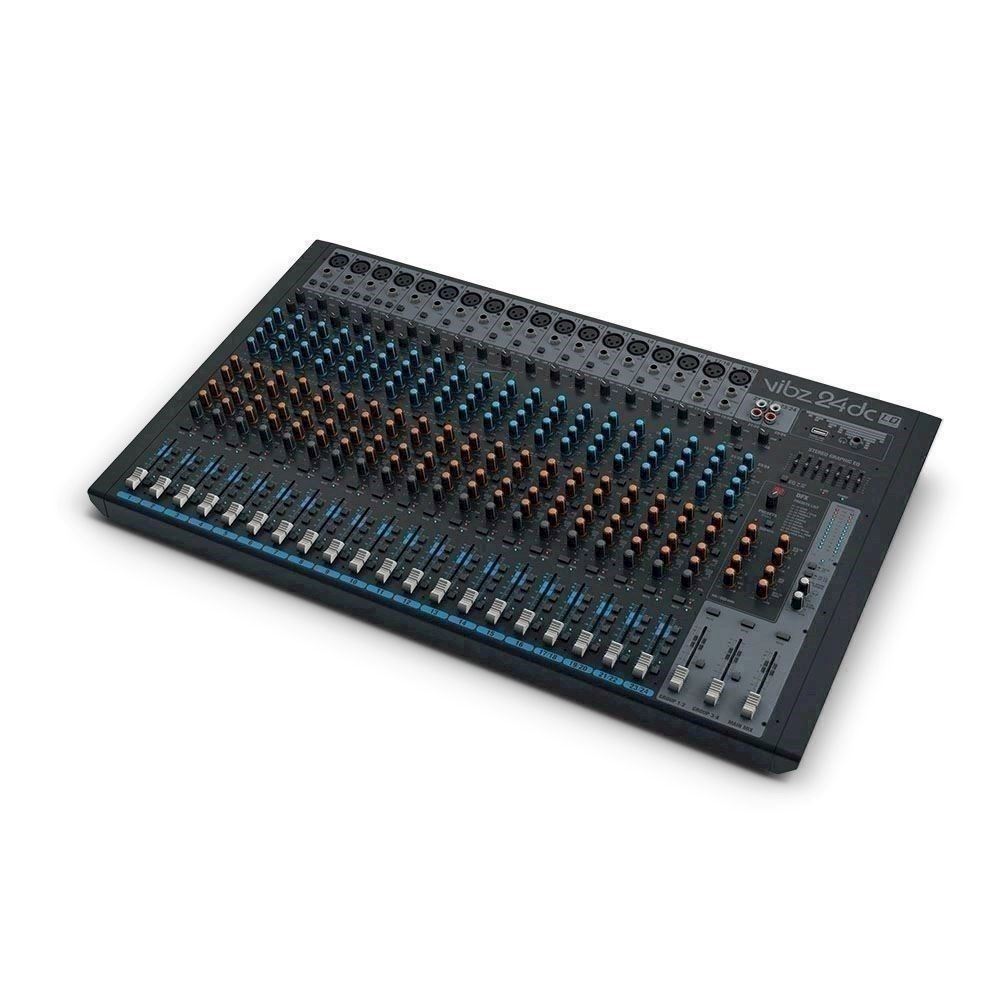

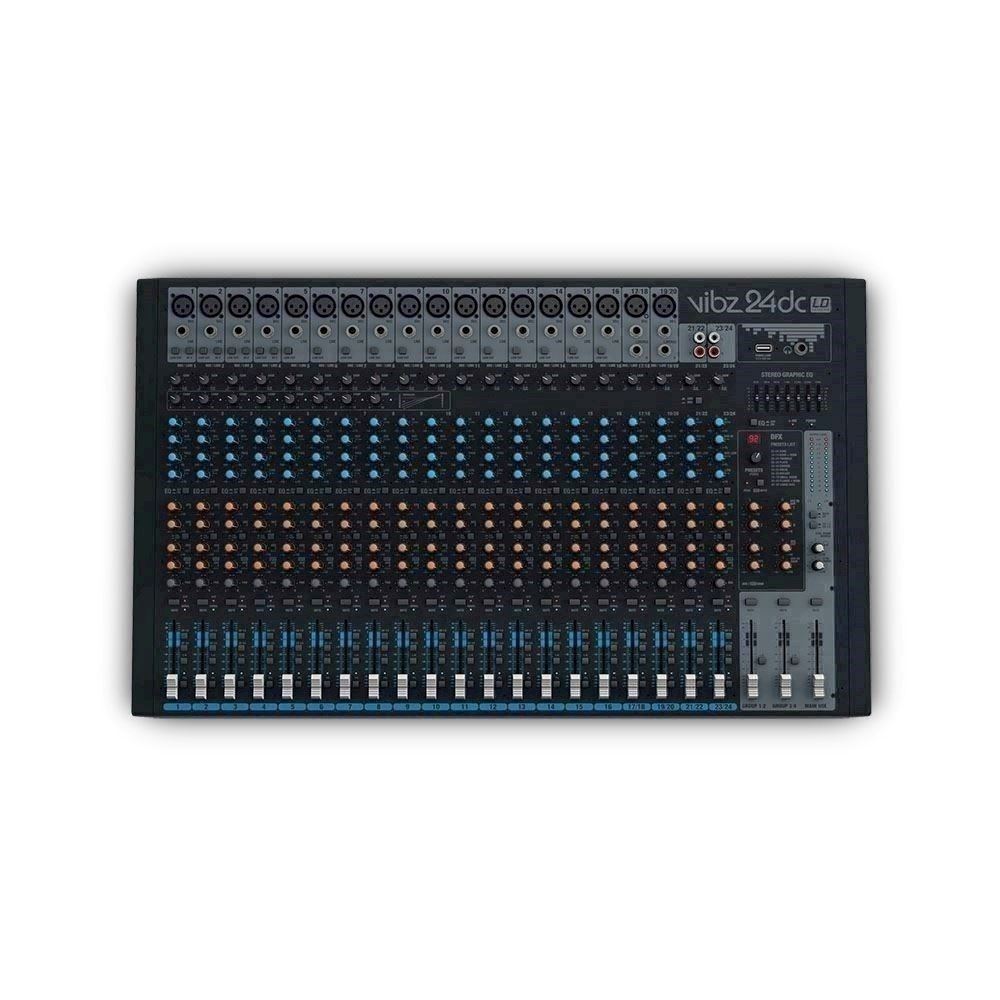

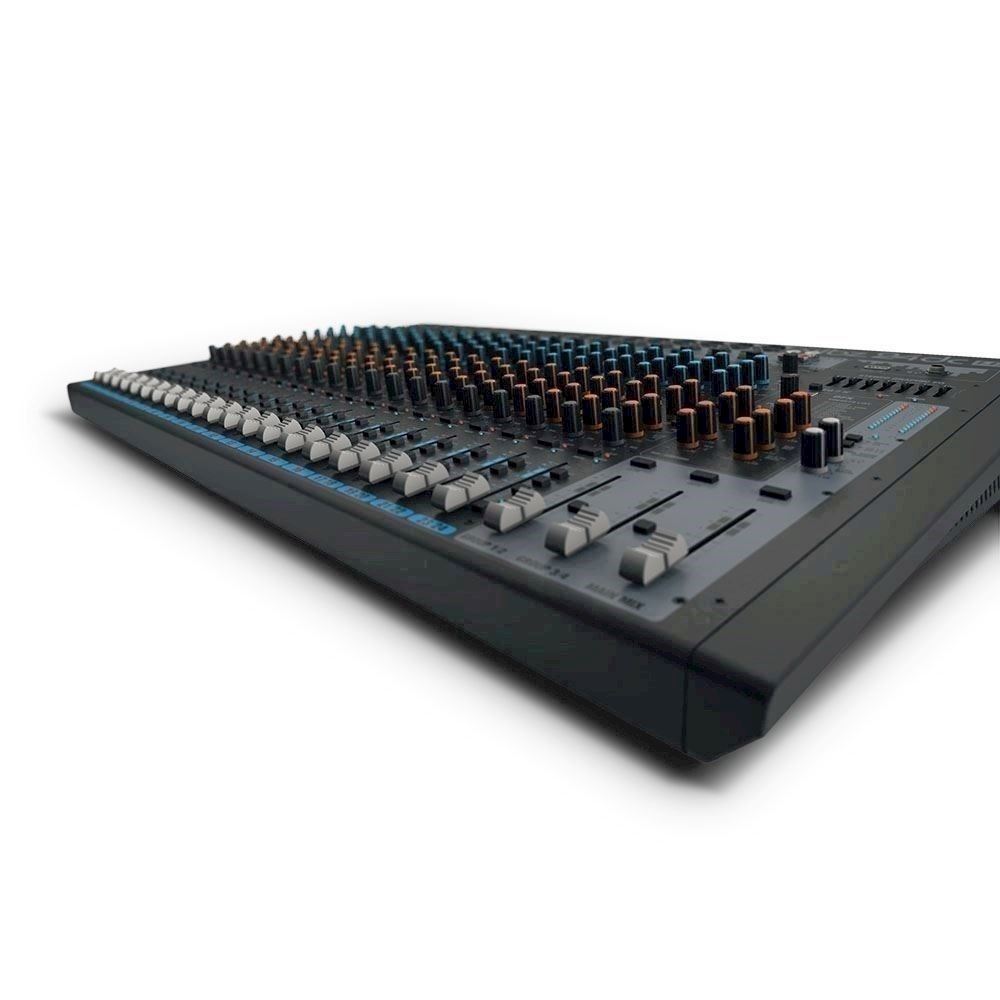

LD 24 channel Mixing Console with DFX and Compressor - VIBZ 24 DC

LD 24 channel Mixing Console with DFX and Compressor - VIBZ 24 DC
  • På lager
  • På lager, 3-8 Hverdage
  • Bedømmelse for LD 24 channel Mixing Console with DFX and Compressor - VIBZ 24 DC
    Produktet er endnu ikke bedømt
  •
    4.829,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner

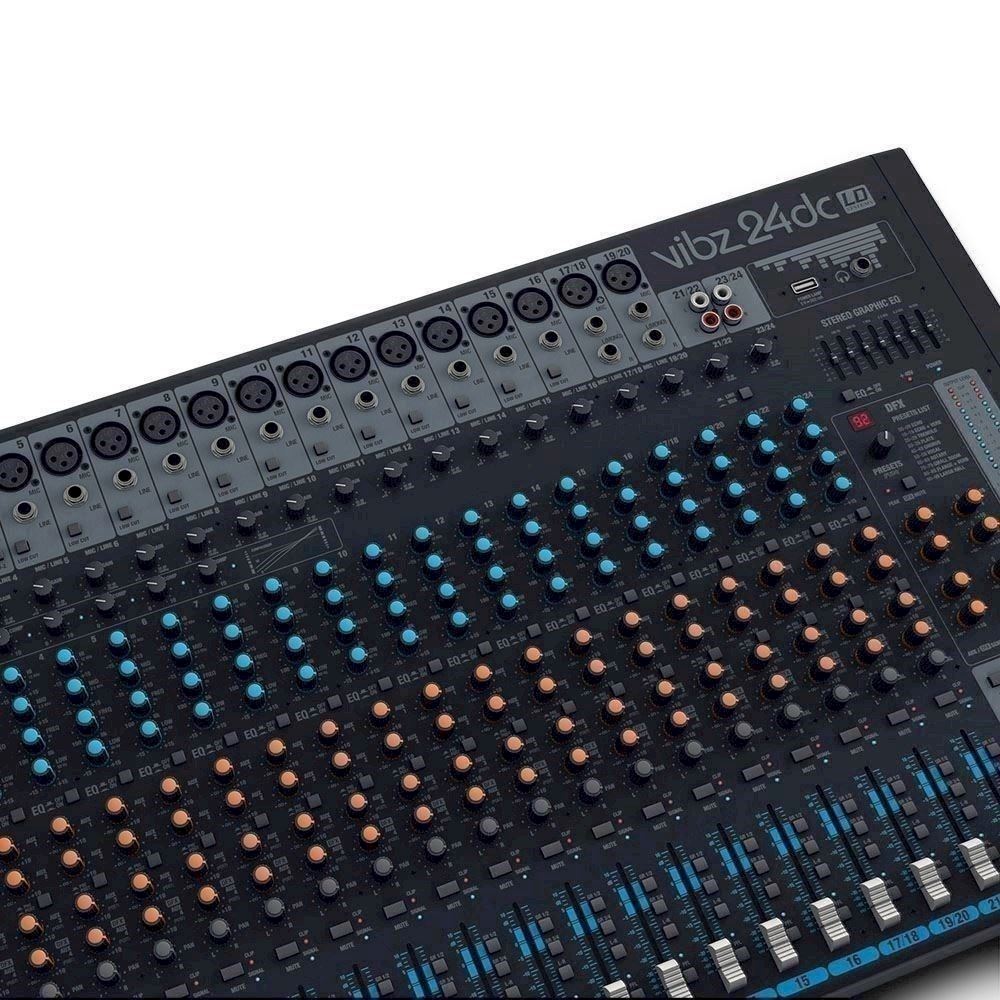

The flagship of the VIBZ Series of mixing desks, the VIBZ 24 DC is designed for superb audio in home studio and live applications. It sports 16 mono channels with 3-band EQ and semi-parametric midrange, 4 stereo channels with 4-band EQ, 4 subgroups, 24-bit digital effects with 100 presets and smooth 65 mm audio taper faders.

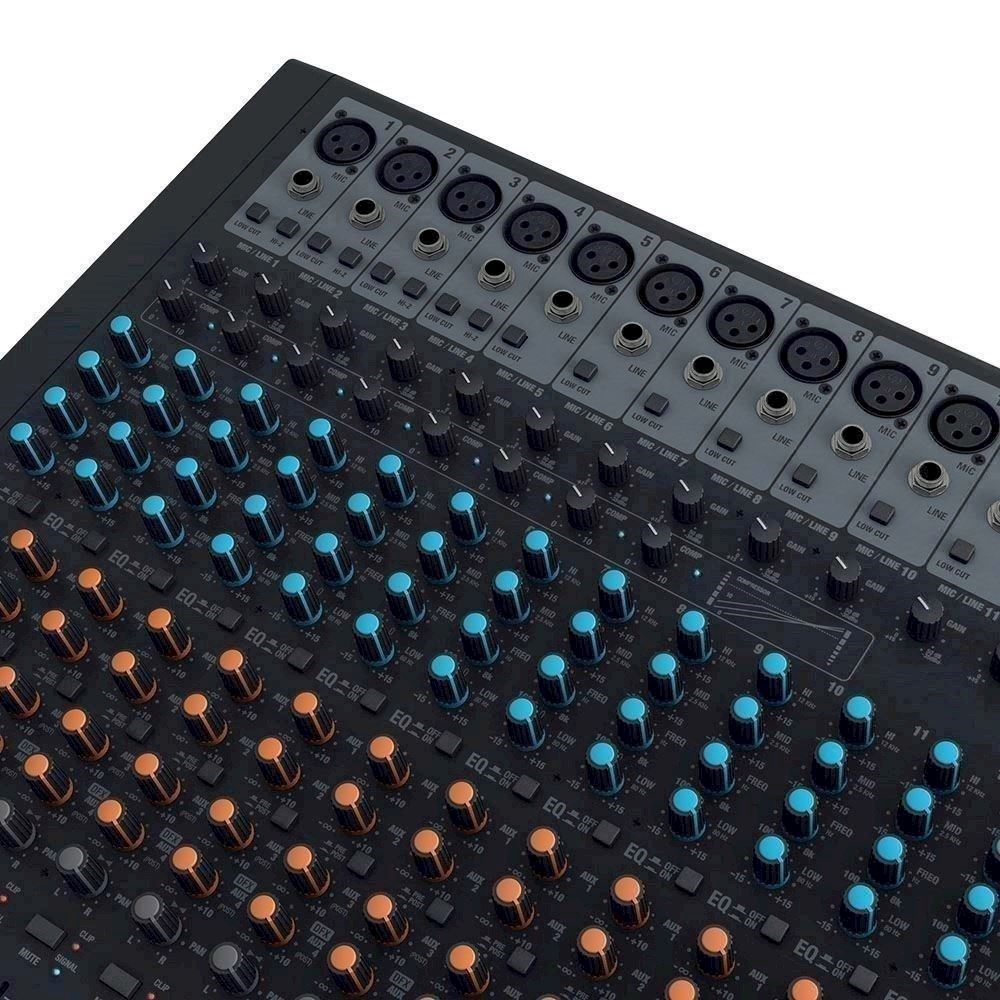

All channels feature high-quality preamps with gain control, 4 aux sends, mute, PFL and routing switches plus signal and clip LEDs. Two sends are switchable pre or post fader to enable monitoring or effects use. The mono channels' XLR mic and TRS line inputs are electronically balanced with channels 1 – 8 providing convenient one-knob control of the built-in compressor and individual insert points for outboard processing.

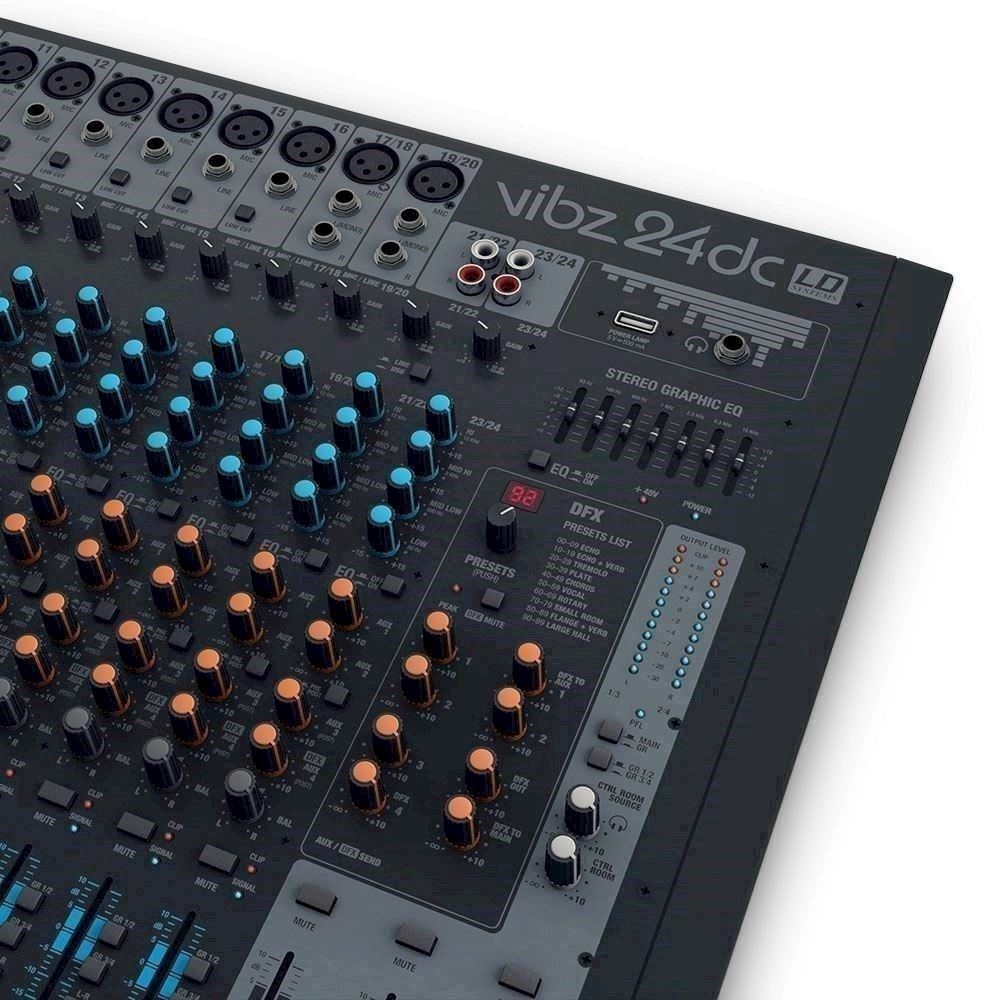

The master section offers balanced and unbalanced main mix and individual group outputs with precision metering, control room and headphone outputs with level controls and a global 7-band graphic EQ. The VIBZ 24 DC integrates a multi-voltage power supply for 100 – 240 V AC operation.





  • 24-channel mixer with 16 mono and 4 stereo channels
  • Balanced mic and line inputs
  • 3-band EQ with semi-parametric mids
  • 4 aux sends, 2 pre or post fader switchable
  • 8 mono channels with inserts and compressor
  • Channel routing, mute and PFL switches
  • 48V phantom power
  • 4 subgroups with individual outputs
  • 24-bit digital effects and global 7-band graphic EQ
  • Balanced and unbalanced main outputs
  • Control room and headphone outputs
  • 10 Hz – 45 kHz frequency response
  • integrates 16 bit/48 kHz USB audio interface
  • 3-band EQ with semi-parametric midrange regulating on mono channels
  • 4-band EQ on stereo channels

Product typeMixers
TypeHome-Recording, Live
Channels24

microphone

Mono Mic and Line Input Channels16
Mono Mic input connectors6.3 mm TRS, XLR
Mono Mic Input Typeelectronically balanced
Mono Mic Input Frequency Range10 - 45000 Hz
Amplification Range mono Mic Input0 - 50 dB
Mono Mic Input Input THD-N0.0058%
Mono Mic Input Impedance4000 Ohm(s)
Mono Mic Input S/N Ratio113 dB
Mono Line Input Typeelectronically balanced
Mono Line Input Frequency Range10 - 45000 Hz
Amplification Range mono Line Input0 - 50 dB
Mono Line Input Input THD-N0.0045 %
Mono Line Input Impedance21000 Ohm(s)
Mono Line Input S/N Ratio116 dB
Mono Channel Equalizer High+/-15 dB @ 12.000 Hz
Mono Channel Equalizer Mid200 - 8000
Mono Channel Equalizer Low+/-15 dB @ 80 Hz
Controls Mono Mic and Line Input ChannelsAUX Send 1-2 pre (AUX2 pre/post switchable), Bal, Fader Routing switch (Group 1/2, Group 3/4, Main L+R), LINE/USB -switch (Channel 21 - 24), PFL / Solo Switch, 3-band EQ (High, Mid, Low), AUX Send 3-4 (post), Channel Fader, Gain
Phantom power48 V DC switchable
Mono Inserts8
Mono Inserts Connectors6.3mm jack

Stereo Channels:

Stereo Line Input Channels4
Stereo Line Input Connectors6.3 mm TRS
Stereo Line Input Typeunbalanced, electronically balanced
Stereo Line Input Frequency Range10 - 45000 Hz
Amplification Range stereo Line Input0 - 50 dB
Stereo Line Input Input THD-N0.0045 %
Stereo Line Input Impedance37000 Ohm(s)
Stereo Line Input S/N Ratio116 dB
Stereo channel equalizer treble+/-15 dB @ 12.000 Hz
Stereo channel equalizer hi-mids+/-15 dB @ 2.500 Hz
Stereo channel equalizer low-mids+/-15 dB @ 2.500 Hz
Stereo channel equalizer bass+/-15 dB @ 80 Hz
Controls Stereo Line Input Channels4-band EQ (High, High-Mid, Low-Mid, Low), AUX 1 - 2 switchable Pre/Post, Balance, Channel Volume, EQ on/off, Gain, GROUP to Main -switch, LINE/USB -switch, AUX/DFX Send 1 - 4

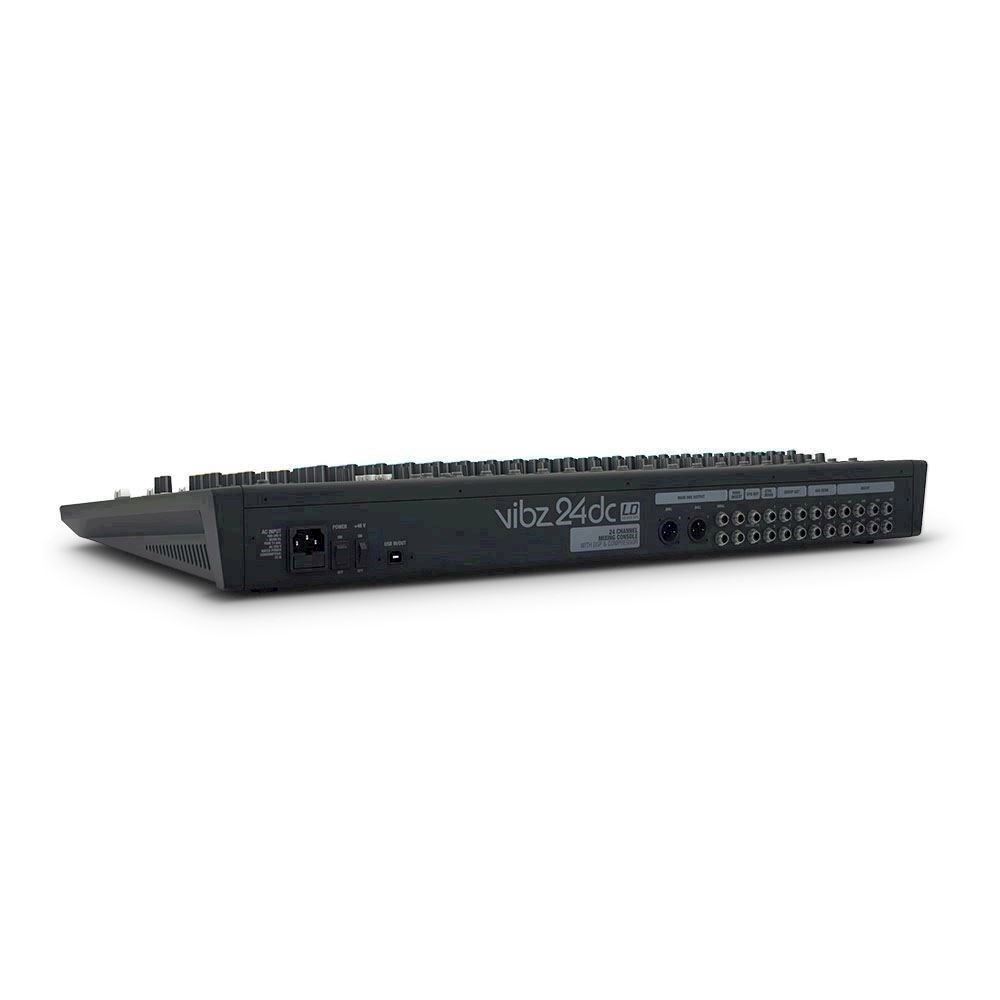

Main Section:

AUX / Effects Send Channels4
AUX / Effects Send Connectors6.3 mm TS
Stereo AUX Return Channels1
Group Out4
Group Out Connectors4 x 6,3mm TRS
Balanced Stereo Main Out1
Balanced Stereo Main Out ConnectorsXLR
Unbalanced stereo Main Outputs1
Unbalanced stereo Main Output Connections2 x 6.3 mm TS
Main-Insert Inputs1
Main-Insert Input Ports2 x 6.3 mm TRS asymmetrically
DFX Out Outputs1
DFX Out Output Ports6.3 mm TRS
USB In/Out In-/Outputs1
USB In/Out PortsUSB-B
Max. Unbalanced Stereo Main Out Level22 dBu
Stereo Control Room Out1
Stereo Control Room Out Connectors2x 6.3 mm TRS
Headphones ouput1
Headphones outputs6.3 mm TRS
Digital Effects Processoryes
Number of Presets100
DMX output1
Footswitch Connector DFX Mute6.3 mm TS
Main section controls7-band graphic EQ, DFX Mute, DFX Presets, DFX to Main, GROUP to Main -switch, Main Mix Fader, mains switch, AUX/DFX Send 1 - 4, DFX to Aux, EQ on/off, Phantom Power, Phones/CTRL Fader, TK In To Main/To CTRL
IndicatorsDFX to Main, PFL indicator, Power, Signal, DFX Peak, Phantom Power
Operating voltage100 V AC - 240 V AC, 50 - 60 Hz
Width712 mm
Height80 mm
Depth425 mm
Weight9,442 kg
