LD 12 channel Mixing Console with DFX and Compressor - VIBZ 12 DC

På lager
På lager, 3-8 Hverdage
Bedømmelse for LD 12 channel Mixing Console with DFX and Compressor - VIBZ 12 DC
Produktet er endnu ikke bedømt

2.909,00DKK ved 1 stk.

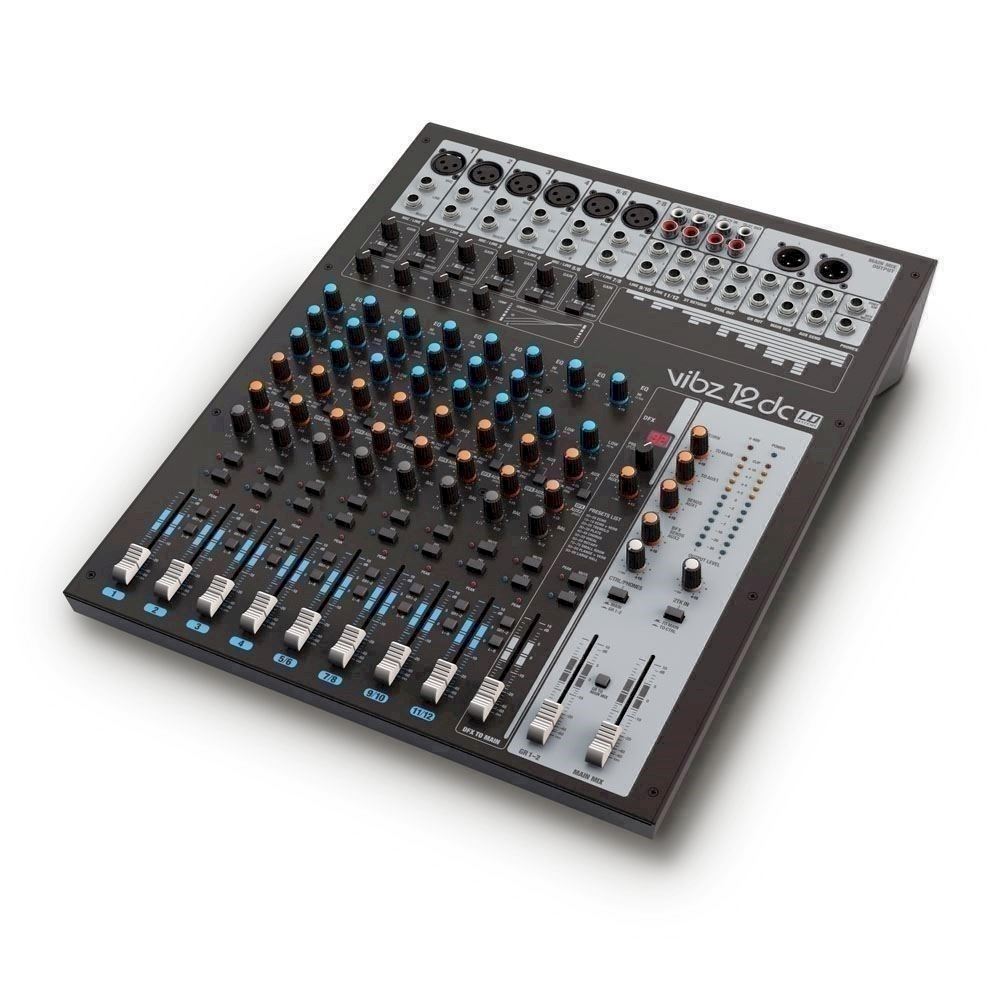

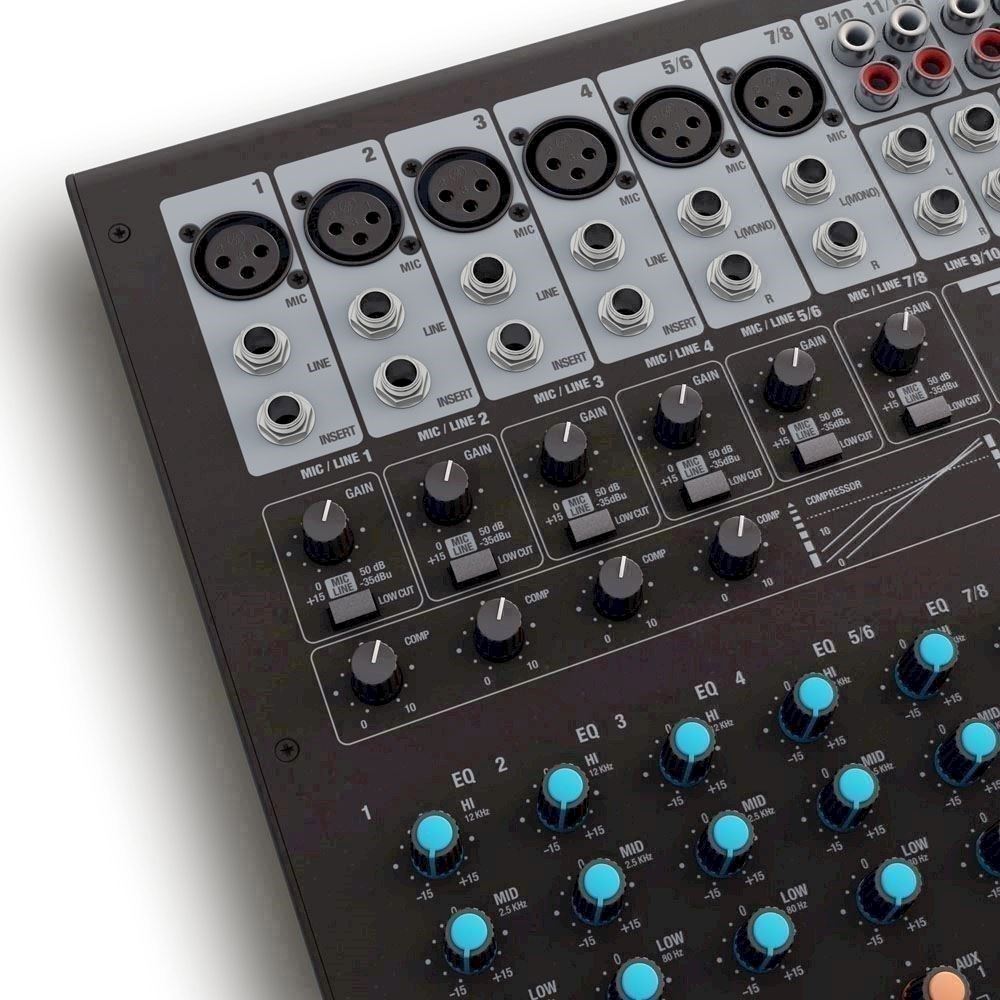

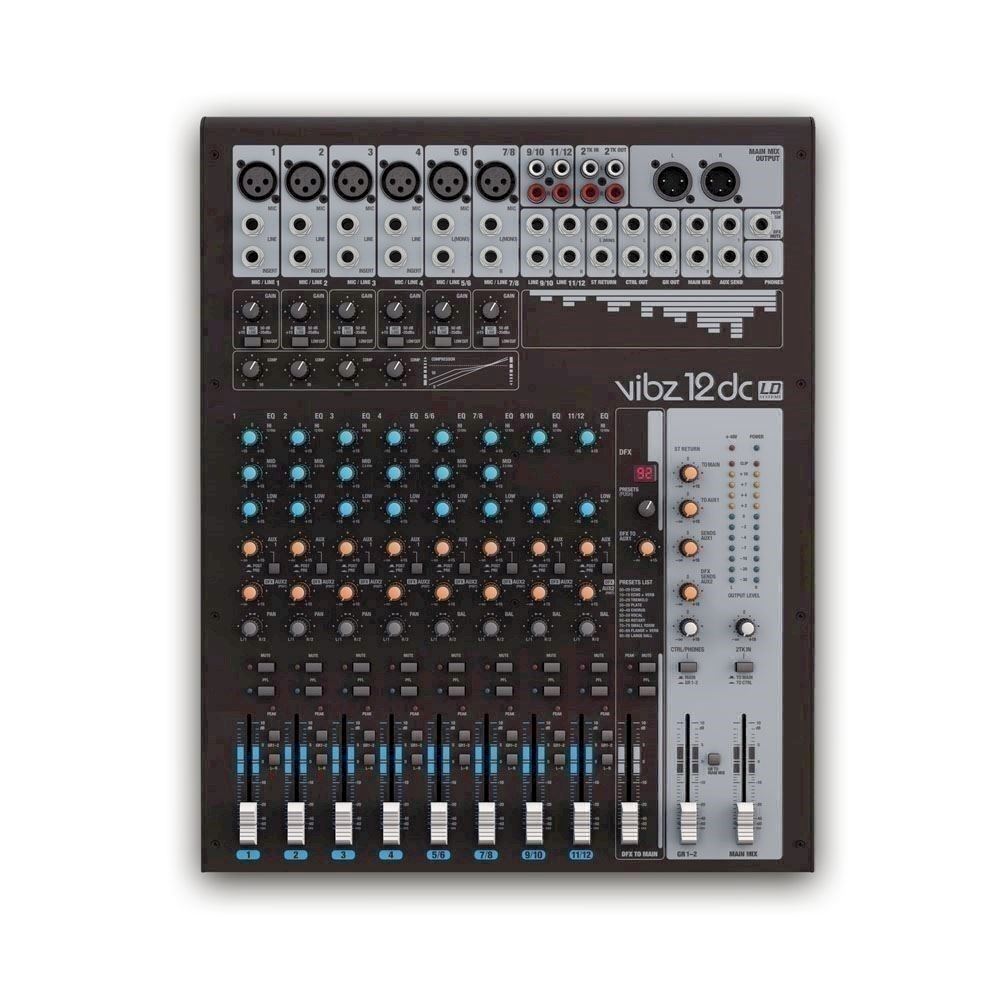

The VIBZ 12 is a versatile mixer with six balanced microphone inputs featuring high quality preamplifiers, a low-cut filter, an effective 3-band EQ with conveniently selected mids and switchable phantom power.

Four microphone channels can be processed separately using the built-in compressor for an effective control of dynamics; two more can alternatively be used as a stereo line channels. The other stereo channels are equipped with 2-band EQs.

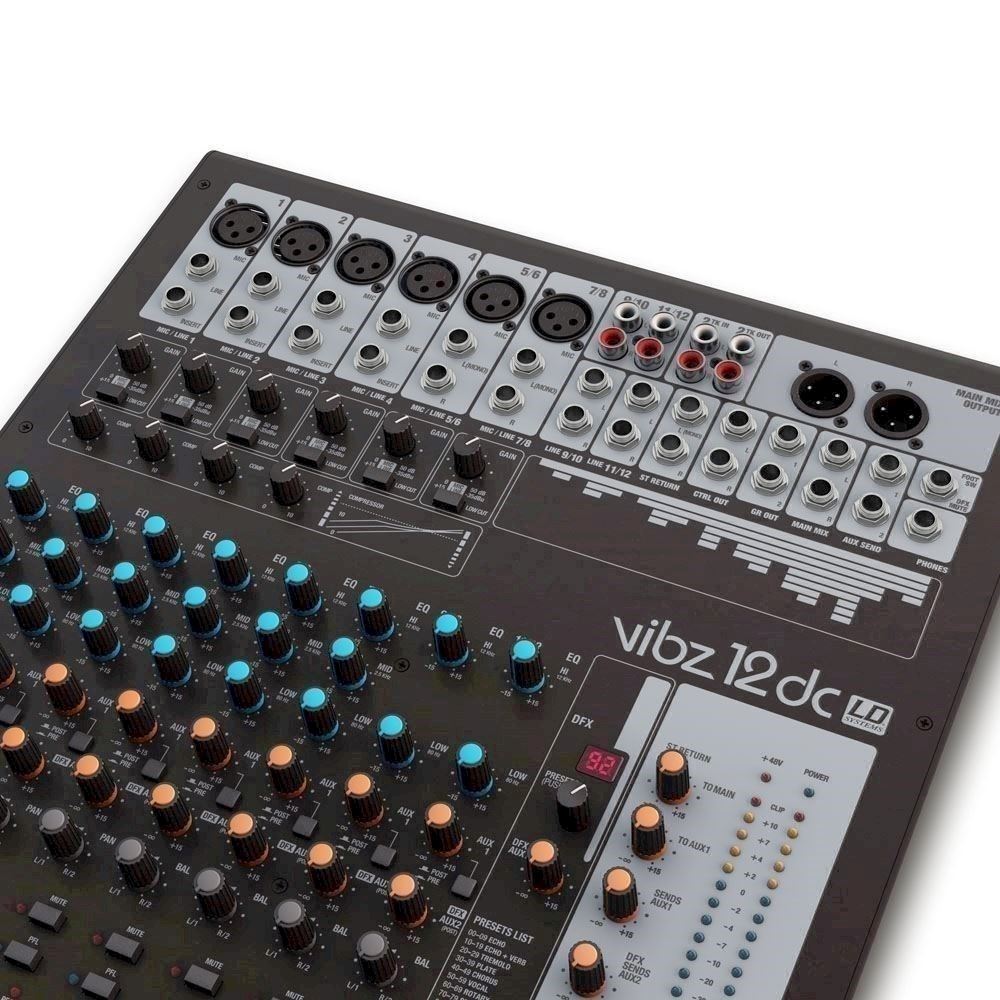

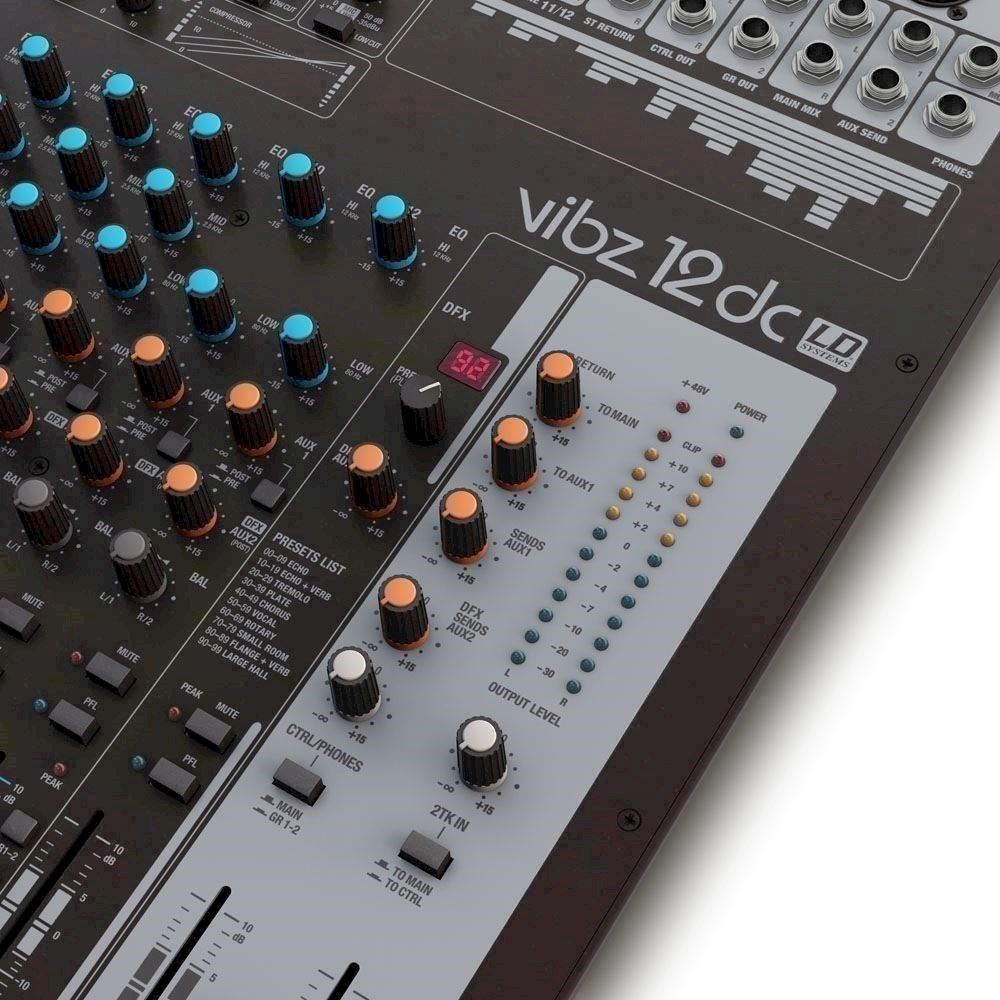

The master section of the mixer includes two effects loops, balanced XLR outputs, group and monitor outputs and a headphone jack. The VIBZ 12 also has RCA connectors for recording and playback devices and a digital Digital Effects Section with 100 presets.

With key features such as the PFL function or the Mute buttons and its natural, transparent sound, the VIBZ 12 is the perfect choice for live performances, installations and demanding home recording applications.

12-channel mixer with 6 microphone channels
4 stereo line inputs
Effective 3-band EQ
2 stereo channels with 2-band EQ
Sliding adjustable compressor
Digital Effects Section with 100 Presets
Master, Monitor, Groups and headphone outputs
Built in power supply

Product type	Mixers
Type	Live
Channels	12

Mono Channels:

Mono Mic and Line Input Channels	4
Mono Mic input connectors	6.3 mm TRS, XLR
Mono Mic Input Type	electronically balanced
Mono Mic Input Frequency Range	10 - 45000 Hz
Amplification Range mono Mic Input	0 - 50 dB
Mono Mic Input Input THD-N	0.0058%
Mono Mic Input Impedance	4k Ohm(s)
Mono Mic Input S/N Ratio	113 dB
Mono Line Input Type	electronically balanced
Mono Line Input Frequency Range	10 - 45000 Hz
Amplification Range mono Line Input	0 - 50 dB
Mono Line Input Input THD-N	0.0045 %
Mono Line Input Impedance	21k Ohm(s)
Mono Line Input S/N Ratio	116 dB
Mono Channel Equalizer High	+/- 15 dB @ 12000 Hz
Mono Channel Equalizer Mid	+/- 15 dB @ 2,500 Hz
Mono Channel Equalizer Low	+/- 15 dB @ 80 Hz
Controls Mono Mic and Line Input Channels	AUX 1 umschaltbar Pre/Post, Compressor, PFL, 3-band EQ (High, Mid, Low), AUX 2 (DFX) Post, DFX/AUX 1, Gain, Low Cut (75 Hz)
Phantom power	48 V DC switchable

Stereo Channels:

Stereo Line Input Channels	4
Stereo Line Input Connectors	6.3 mm TRS, RCA
Stereo Line Input Type	electronically balanced, unbalanced
Stereo Line Input Frequency Range	10 - 45000 Hz
Amplification Range stereo Line Input	0 - 50 dB
Stereo Line Input Input THD-N	0.0045 %
Stereo Line Input Impedance	3,7k Ohm(s)
Stereo Line Input S/N Ratio	116 dB
Stereo channel equalizer treble	+/- 15 dB @ 12000 Hz
Stereo channel equalizer mids	+/- 15 dB @ 2500 Hz
Stereo channel equalizer bass	+/- 15 dB @ 80 Hz
Controls Stereo Line Input Channels	2-band EQ (High,Low), AUX 2 (DFX) Post, DFX/AUX 1, Gain, 3-band EQ (High, Mid, Low), AUX 1 umschaltbar Pre/Post, Balance, Channel Volume, Low Cut

Main Section:

AUX / Effects Send Channels	2
AUX / Effects Send Connectors	6.3 mm TRS
Stereo AUX Return Channels	1 x stereo
Stereo AUX Return Connectors	6.3 mm TRS
Stereo Tape Out Channel	1 x stereo
Stereo Tape Out Connectors	2 x RCA (Cinch)
Stereo Tape In Channel	1 x stereo
Stereo Tape In Connenctors	2 x RCA (Cinch)
Balanced Stereo Main Out	1
Balanced Stereo Main Out Connectors	XLR
Balanced Stereo Main Out Impedance	120 Ohm(s)
Max. Balanced Stereo Main Out Level	23 dBu
Stereo Control Room Out	1
Stereo Control Room Out Connectors	6.3 mm TRS
Headphones ouput	1
Headphones outputs	6.3 mm TRS
Digital Effects Processor	Yes, 24-bit AD/DA Resolution
Number of Presets	100
Footswitch Connector DFX Mute	6.3 mm TRS
Main section controls	2-track In Volume, CTRL / Phones assignment (Main/Group 1-2), DFX Mute Schalter, Group 1-2 assignment to Main MIX, Group 1-2 Volume, Power, presets, Stereo Return to AUX Volume, 2-track Assignment (Main, Contr. Room), AUX 2 Send Volume, DFX TO AUX Volume, DFX To Main Volume, Master Volume, PFL, Phantom Power, Stereo Return to MAIN Volume, Volume Control CTRL / Phones
Indicators	PFL, Phantom Power, Power, DFX Peak, DFX TO MAIN

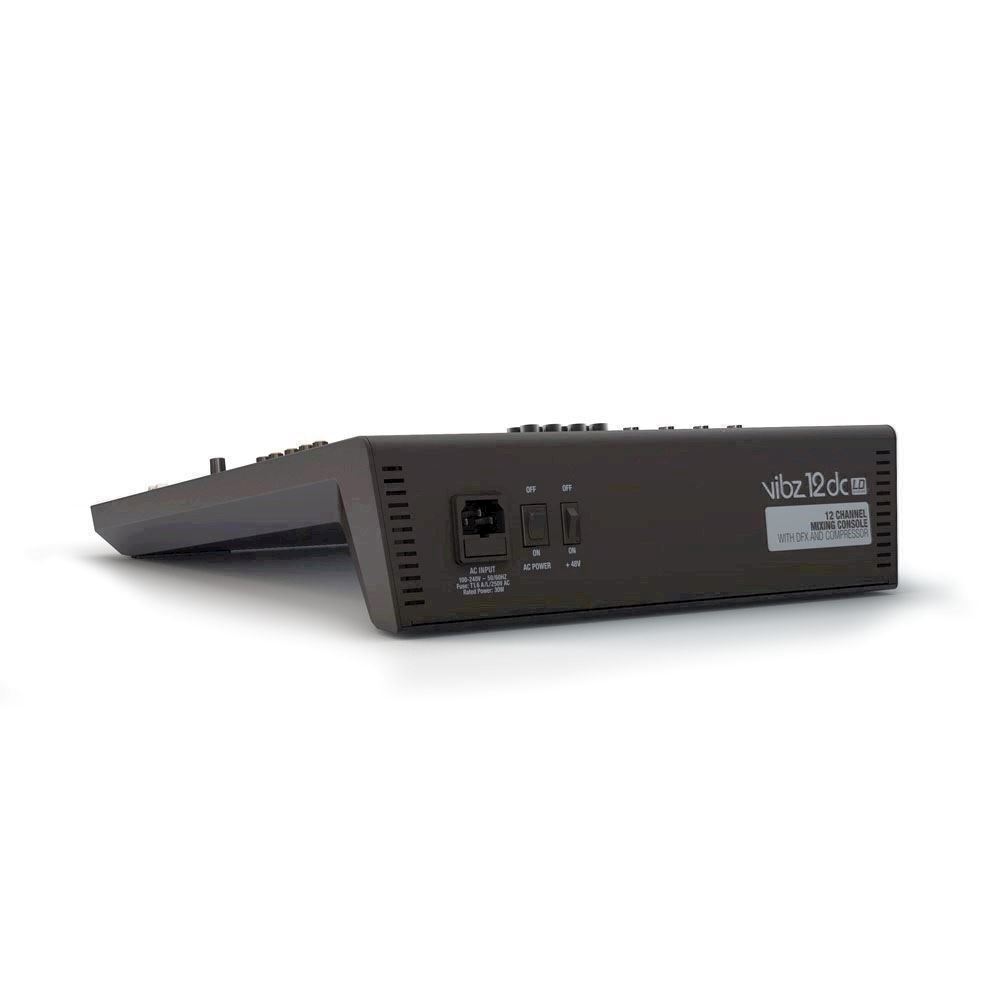

Operating voltage	100 V AC - 240 V AC, 50 - 60 Hz
Width	350 mm
Height	98 mm
Depth	440 mm
Weight	4,3 kg

Varenr.: A-LDVIBZ12DC
