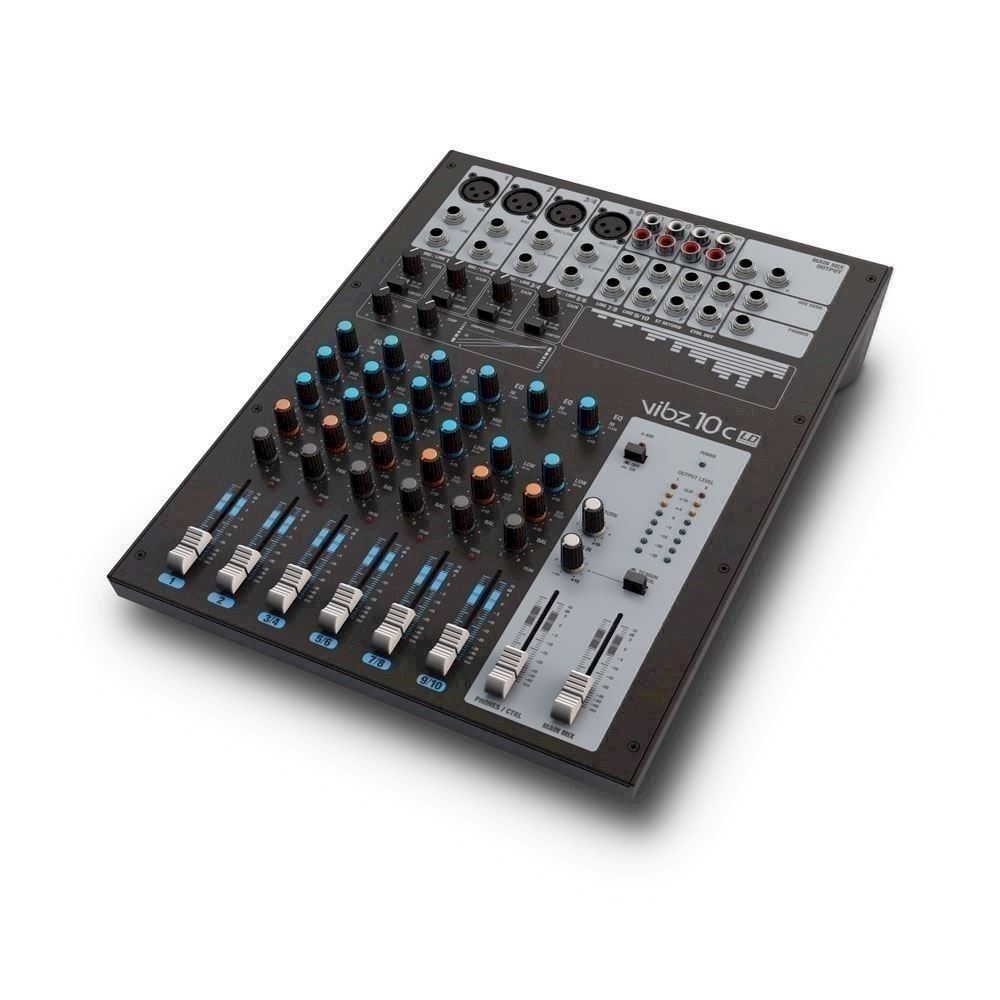

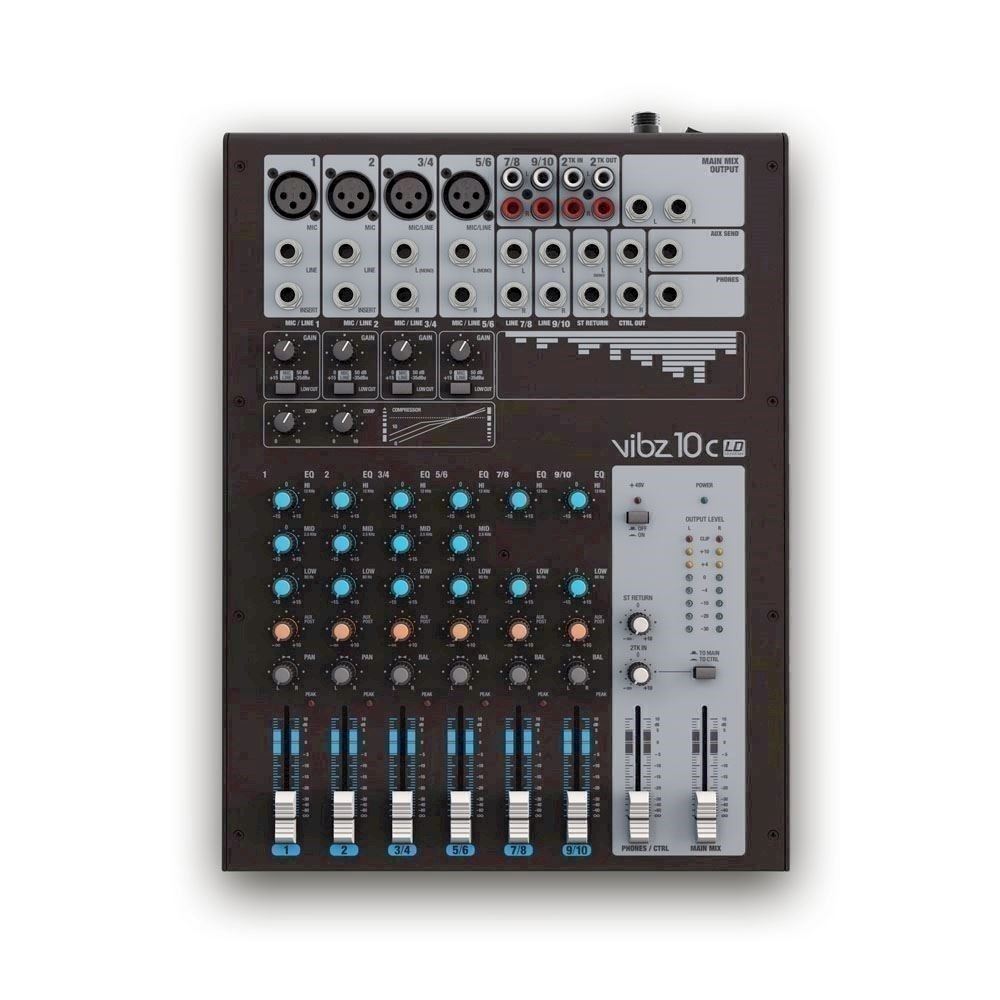

LD 10 channel Mixing Console with Compressor - VIBZ 10 C

LD 10 channel Mixing Console with Compressor - VIBZ 10 C
  • Ikke på lager
  • Forventet levering om 6 uger
  • Bedømmelse for LD 10 channel Mixing Console with Compressor - VIBZ 10 C
    Produktet er endnu ikke bedømt
  •
    1.759,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner

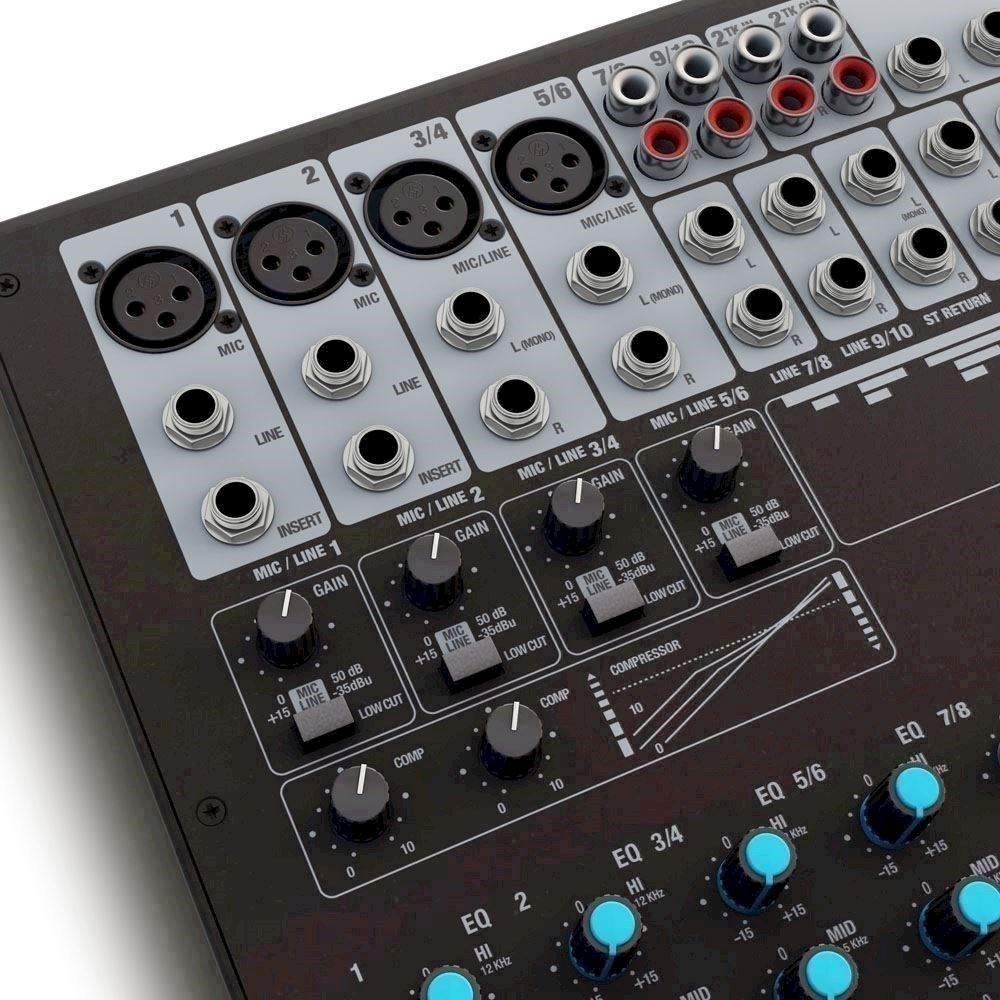

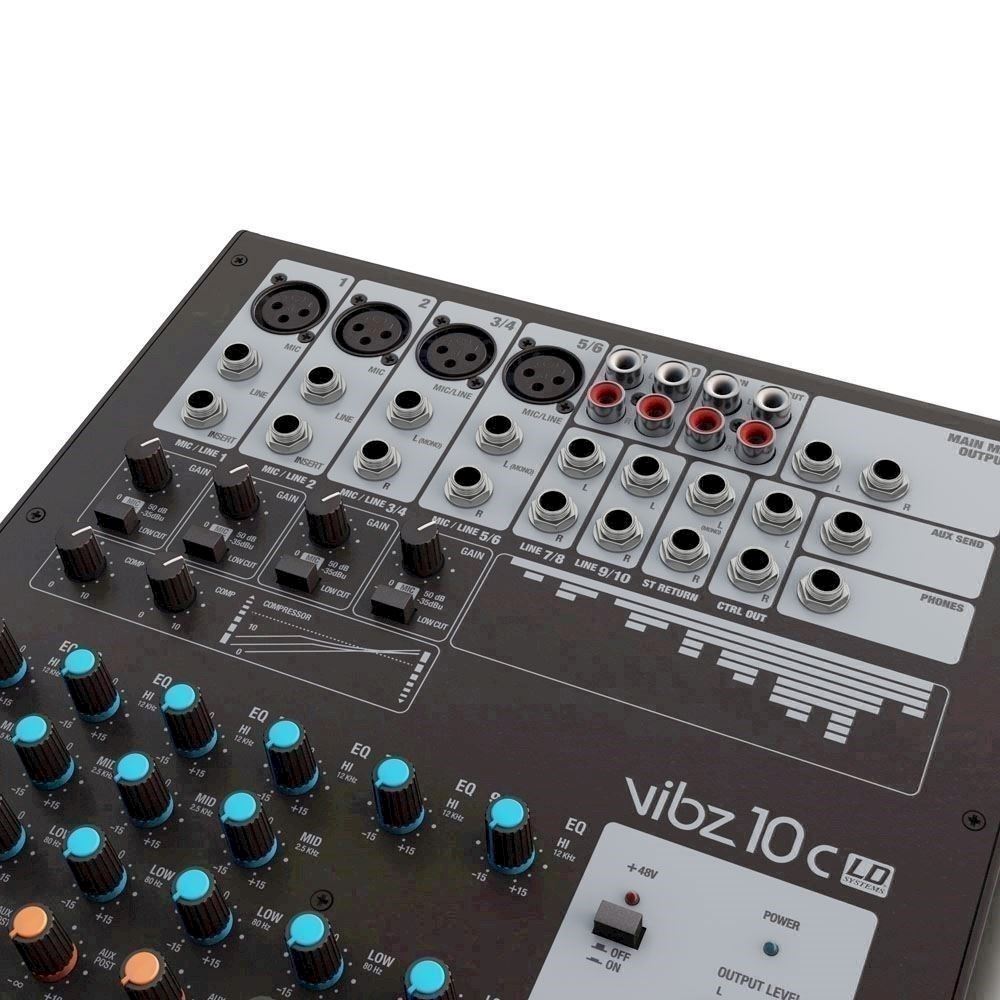

The VIBZ 10 is a versatile mixer with four balanced microphone inputs featuring high quality preamplifiers, a low-cut filter and switchable phantom power. Two microphone inputs are equipped with inserts for individual signal processing, two more can alternatively be used as stereo line channels.

For an effective sound adjustment, the VIBZ 10 has very precise 3-band EQs with conveniently selected mids; two stereo channels can be adjusted with 2-band EQs. The built-in compressor can be continuously adjusted for effective dynamics processing.

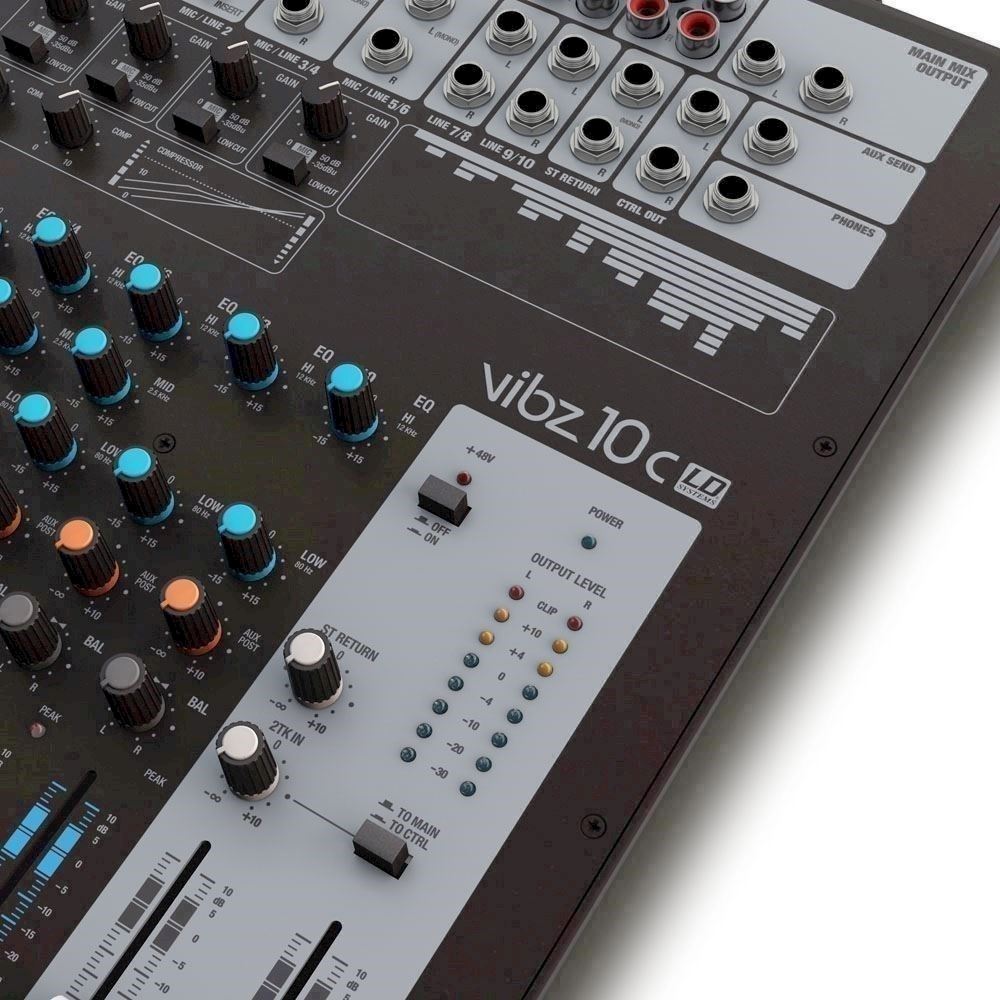

The master section of the mixer has an effects loop, adjustable monitor outputs and a headphone jack. The VIBZ 10 also has inputs and outputs for recording and playback devices; the input signal can be set on the master or monitor output and the volume adjusted.

With its transparent, detailed sound and easy operation, VIBZ 10 is the perfect choice for small bands, installations and home recording or sub mixer applications. It comes with an external power supply that can be tightly secured to the mixer. A foot switch for the effects section and an adapter for mounting the VIBZ 10 on microphone stands are available as accessories.





  • 10-channel mixer with 4 microphone channels
  • 4 stereo line inputs
  • Effective 3-band EQ
  • 2 stereo channels with 2-band EQ
  • Sliding adjustable compressor
  • Master, Monitor and headphone outputs
  • Securely fastening external power supply

Product typeMixers
TypeLive
Channels10

Mono Channels:

Mono Mic and Line Input Channels4
Mono Mic input connectors6.3 mm TRS, XLR
Channel Inserts2
Channel Insert Connectors6.3 mm TRS
Mono Mic Input Typeelectronically balanced
Mono Mic Input Frequency Range10 - 45000 Hz
Amplification Range mono Mic Input0 - 50 dB
Mono Mic Input Input THD-N0.0058%
Mono Mic Input Impedance4k Ohm(s)
Mono Mic Input S/N Ratio113 dB
Mono Line Input Typeelectronically balanced
Mono Line Input Frequency Range10 - 45000 Hz
Amplification Range mono Line Input0 - 50 dB
Mono Line Input Input THD-N0.0045 %
Mono Line Input Impedance21k Ohm(s)
Mono Line Input S/N Ratio116 dB
Mono Channel Equalizer High+/- 15 dB @ 12000 Hz
Mono Channel Equalizer Mid+/- 15 dB @ 2500 Hz
Mono Channel Equalizer Low+/- 15 dB @ 80 Hz
Controls Mono Mic and Line Input ChannelsGain, Low Cut (75 Hz), 3-band EQ (High, Mid, Low), AUX (DFX) Post, Channel Volume, Compressor, pan
Phantom power48 V DC switchable

Stereo Channels:

Stereo Line Input Channels4
Stereo Line Input Connectors6.3 mm TRS
Stereo Line Input Typeelectronically balanced, unbalanced
Stereo Line Input Frequency Range10 - 45000 Hz
Amplification Range stereo Line Input0 - 50 dB
Stereo Line Input Input THD-N0.0045 %
Stereo Line Input Impedance3,7k Ohm(s)
Stereo Line Input S/N Ratio116 dB
Stereo channel equalizer treble+/- 15 dB @ 12000 Hz
Stereo channel equalizer mids+/- 15 dB @ 2500 Hz
Stereo channel equalizer bass+/- 15 dB @ 80 Hz
Controls Stereo Line Input Channels2-band EQ (High,Low), 3-band EQ (High, Mid, Low), AUX Post, Balance, Channel Volume, Low Cut, Gain

Main Section:

AUX / Effects Send Channels1
AUX / Effects Send Connectors6.3 mm stereo jack unbalanced
Stereo AUX Return Channels1 x stereo
Stereo AUX Return Connectors6.3 mm TRS
Stereo Tape Out Channel1 x stereo
Stereo Tape Out Connectors2 x RCA (Cinch)
Stereo Tape In Channel1 x stereo
Stereo Tape In Connenctors2 x RCA (Cinch)
Unbalanced stereo Main Outputs1
Unbalanced stereo Main Output Connections6.3 mm TRS
Unbalanced Stereo Main Out Impedance120 Ohm(s)
Max. Unbalanced Stereo Main Out Level20 dBu
Stereo Control Room Out1
Stereo Control Room Out Connectors6.3 mm TRS
Headphones ouput1
Headphones outputs6.3 mm TRS
Digital Effects Processorno
Main section controls2-track Assignment (Main, Contr. Room), Phantom Power, Phones / Control Room Volume, 2-track In Volume, Master Volume, Stereo Return Volume
IndicatorsPhantom Power, Power

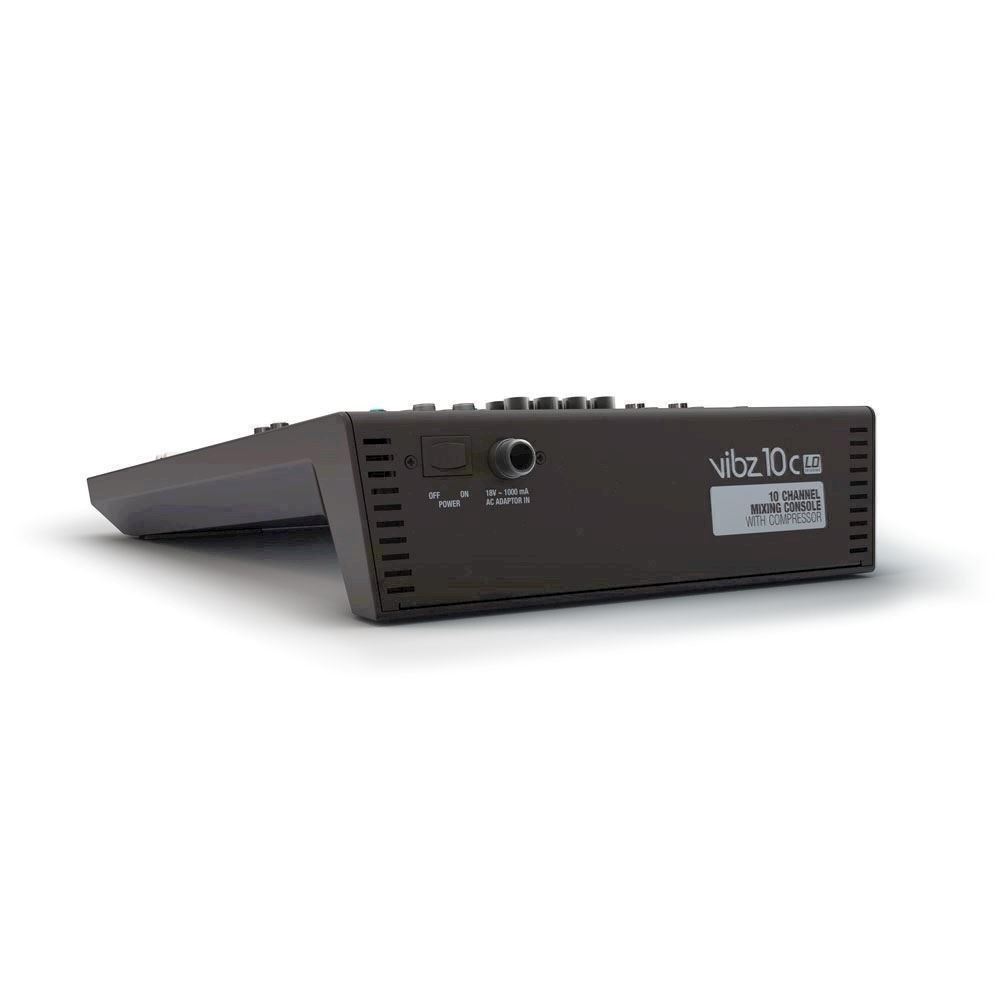

Operating voltage18 V AC - 1 A, External PSU
Width265 mm
Height78 mm
Depth352 mm
Weight2,3 kg




Varenr.: A-LDVIBZ10C
