| Active/passive | passive |
| Transmission method | - |
| Impedance | 8 Ω |
| Frequency range | 230-10,000 Hz |
| Power rating | - |
| Max. power | - |
| THD | - |
| S/N ratio | - |
| Input signal | - |
| System | - |
| Full range speaker | - |
| Bass speaker | - |
| Midrange speaker | - |
| Tweeter | - |
| Number of speakers | 1 |
| Speaker size | - |
| Power rating | 20 W |
| Peak music power output | 40 W |
| Sensitivity | 108 dB/W/m |
| Max. rated SPL | - |

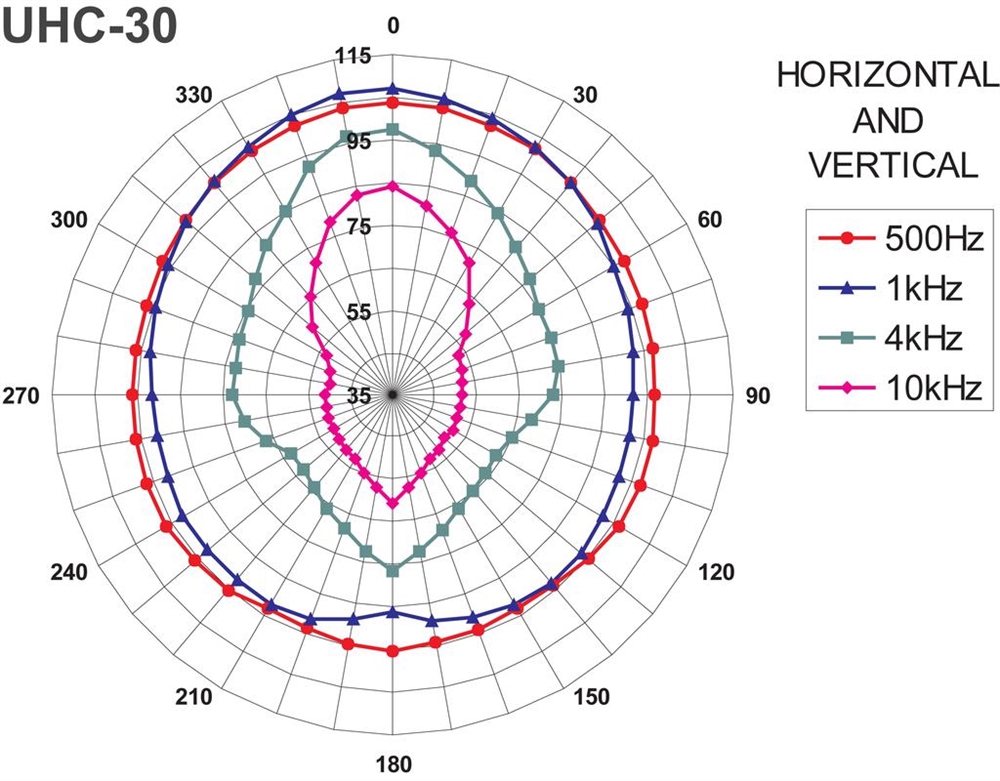

| Radiation angle, horizontal | 75° |
| Radiation angle, vertical | 75° |
| Features | - |
| Housing material | aluminium |
| Colour | dark grey |
| Mounting facility | stainless steel mounting bracket |
| Protected against ball rebound | - |
| Protective class | IP66 |
| Admiss. ambient temp. | -20 to +50 °C |
| Power supply | - |
| Width | Ø 310 mm |
| Height | - |
| Depth | 285 mm |
| Weight | 1.89 kg |
| Inputs | - |
| Outputs | - |
| Replacement voice coil | IT-230/VC |
| Other features | weatherproof |
| Accessories | |
