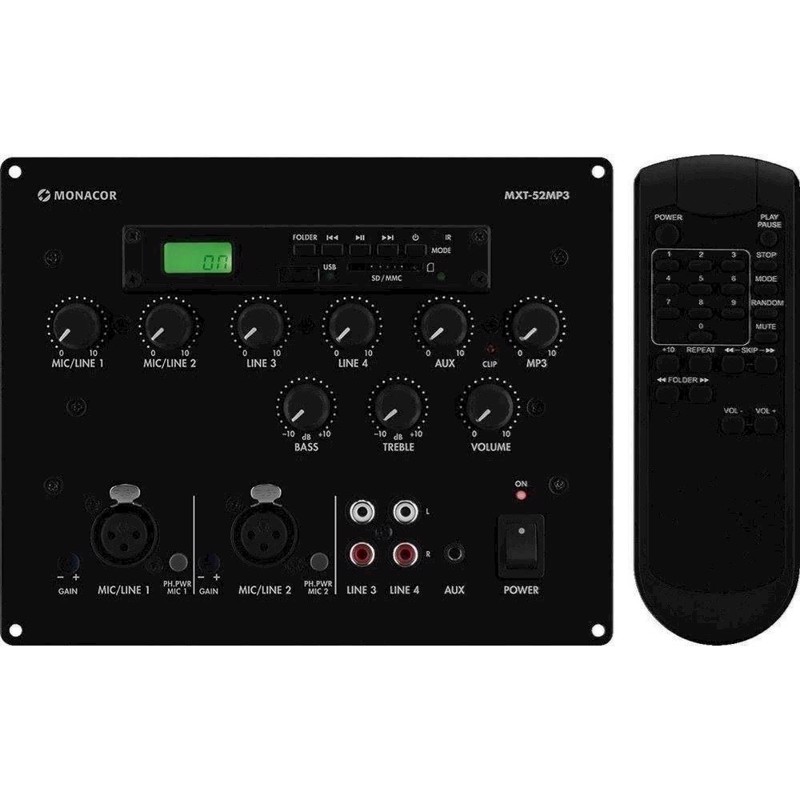

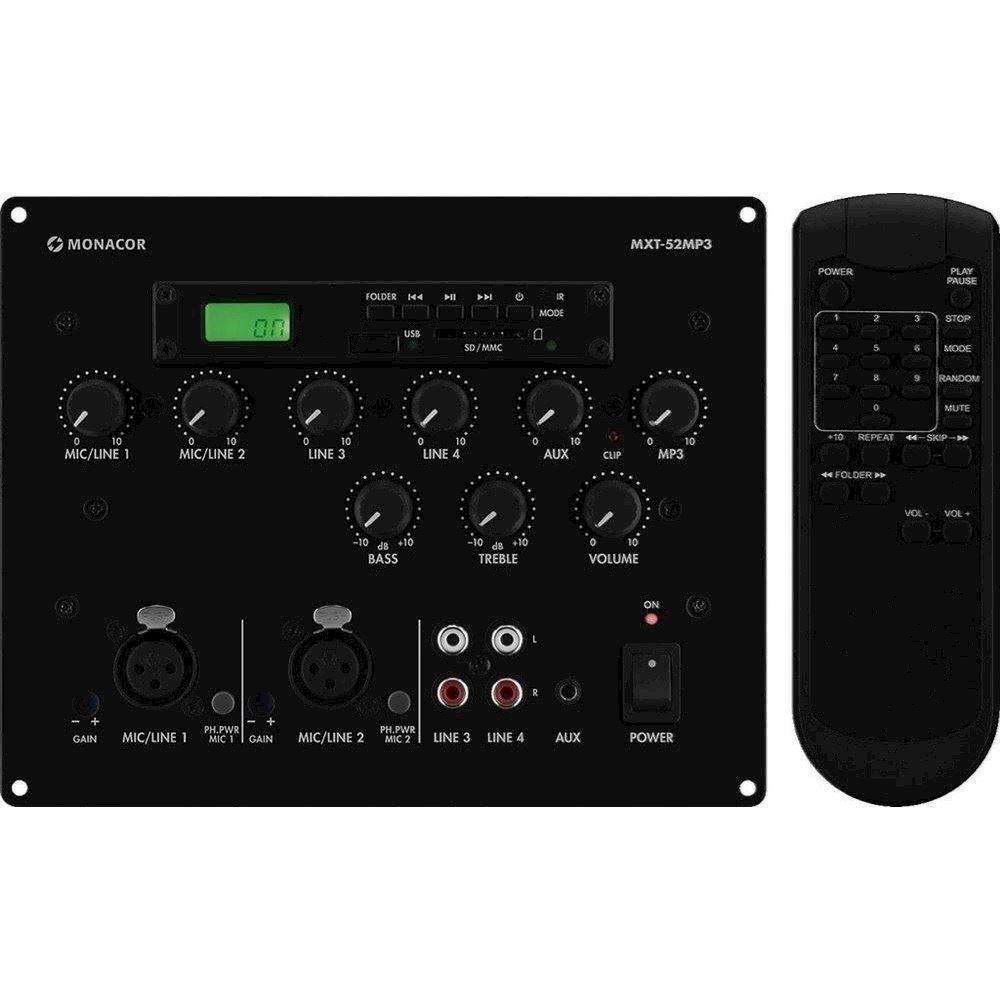

Indbygningsmixer - MXT-52MP3

Mixer with integrated MP3 player,
for flush-mounting into walls.

2 balanced microphone/line inputs (XLR), each with gain control and selectable phantom power
2 line inputs (RCA L/R)
1 aux input (3.5 mm jack)
Integrated MP3 player with USB interface and SD/MMC card slot, including remote control
Each input with level control
Output with 2-way tone control and level control
LED for indicating clip and operating status
Metal housing with rear cover for protection against dirt

No. of channels	6
No. of inputs	5
Mic input	1 mV, 2 x XLR, bal.
Line input	230 mV, 2 x XLR, bal. 160 mV, 2 x RCA L/R
CD input	-
Phono input	-
Tape (play)	-
Aux input	160 mV, 1 x 3.5 mm jack
Insert input	-
Effect return	-
Master output	1-10 V, terminal, mono, bal.
Record output	-
Monitor output	-
Booth output	-
Aux output	-
Insert output	-
Effect send	-
Control room	-
Tape (rec)	-
Headphones	-
Gooseneck lamp	-
WiFi	-
USB	yes
Frequency range	20-20,000 Hz
THD	< 0.03%
S/N ratio	> 78 dB
Crosstalk	-
Equalizer bass	±10 dB/100 Hz
Equalizer midrange	-
Equalizer treble	±10 dB/12 kHz
equalizer	-
Talkover	-
Phantom power	19 V
Crossfader	-
Media player	MP3, USB
Amplifier	-
Power supply	DC current /∼ 24 V/250 mA
Mains voltage	24 V
Mains frequency	-
Power consumption, operation	-
Operating voltage (possible alternative)	-
Power supply (possible alternative)	-
Admiss. ambient temp.	0-40 °C

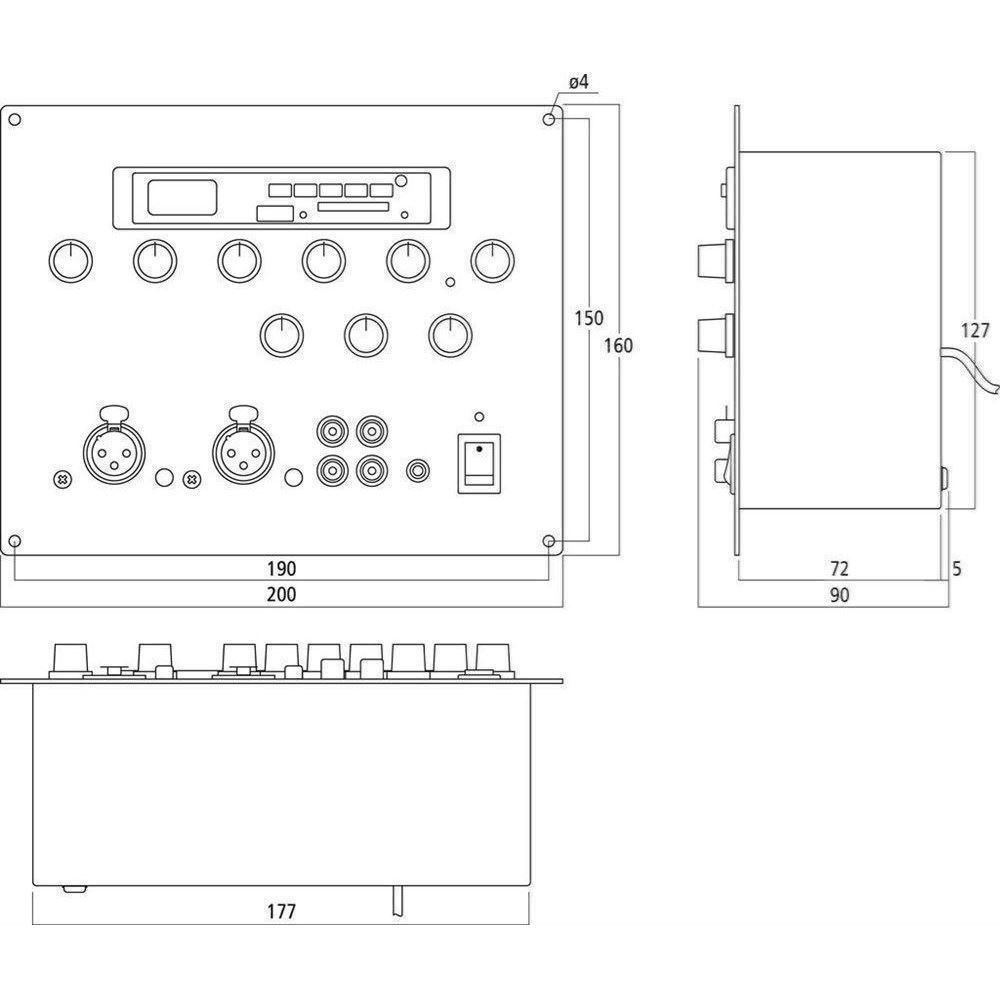

Width	200 mm
Height	160 mm
Depth	90 mm
Rack spaces, RS	-
Weight	1.25 kg

Varenr.: 176790
