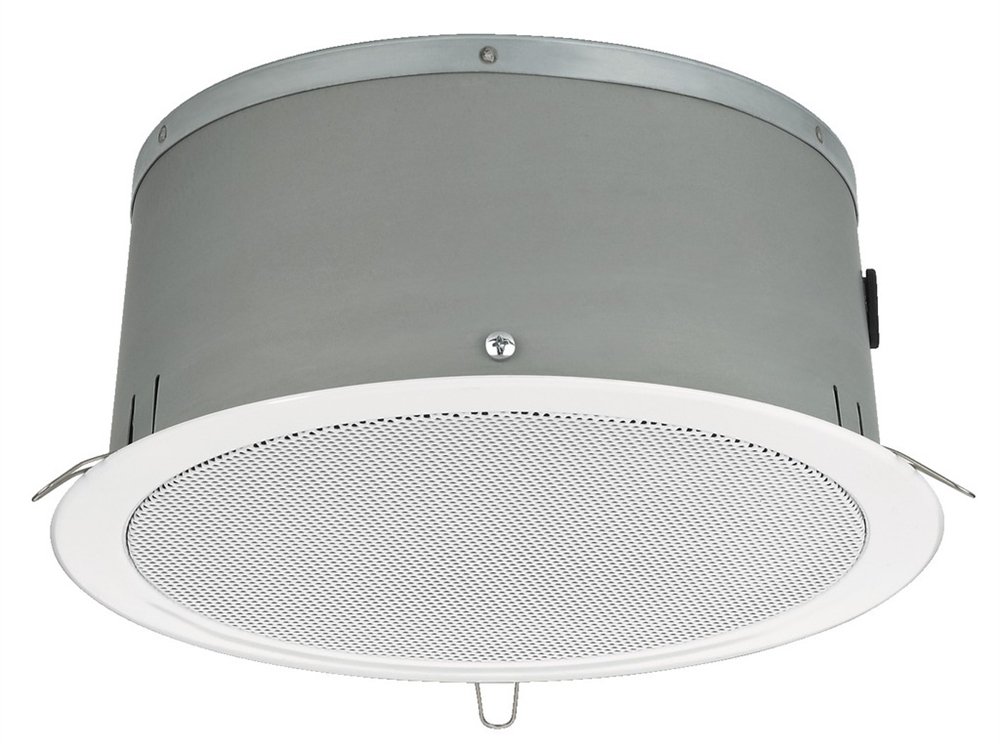

Indbygningshøjttaler EN54 - EDL-250C/WS

Indbygningshøjttaler EN54 - EDL-250C/WS
  • Fjernlager
  • På lager, 2-4 Hverdage
  • Bedømmelse for Indbygningshøjttaler EN54 - EDL-250C/WS
    Produktet er endnu ikke bedømt
  •
    689,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner




PA ceiling speaker,
with EN 54-24 certification.
  • 100 V line technique
  • Full range speaker with a very high efficiency and high maximum volume level
  • Metal housing
  • Fire protection cover
  • Quick mounting facility
  • 3 power taps via push terminals
  • Ball-proof according to DIN 18032, Part 3



Impedance (Z)-
Transmission method100 V
Frequency range70-19,000 Hz
Resonant frequency (fs)-
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating (RMS)-
Peak music power output (MAX)6/3/1.5 WRMS
Sensitivity98 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)-
Moving mass (Mms)-
Mech. Q factor (Qms)-
Electr. Q factor (Qes)-
Total Q factor (Qts)-
Equivalent volume (Vas)-
DC resistance (Re)-
Force factor (BxL)-
Voice coil induct. (Le)-
Voice coil diameter-
Voice coil former-
Linear excursion (XMAX)-
Eff. cone area (Sd)-
Magnet weight-
Magnet diameter-
Mounting cutoutØ 230 mm
Mounting depth110 mm
Mounting hole diameter-
Hole spacing X-axis-
Hole spacing Y-axis-
DimensionsØ 252 mm x 110 mm
Outside diameterØ 252 mm
WidthØ 252 mm
Height-
Depth110 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight1.8 kg
Packing unit1
Type of speaker200
Varenr.: 160110
