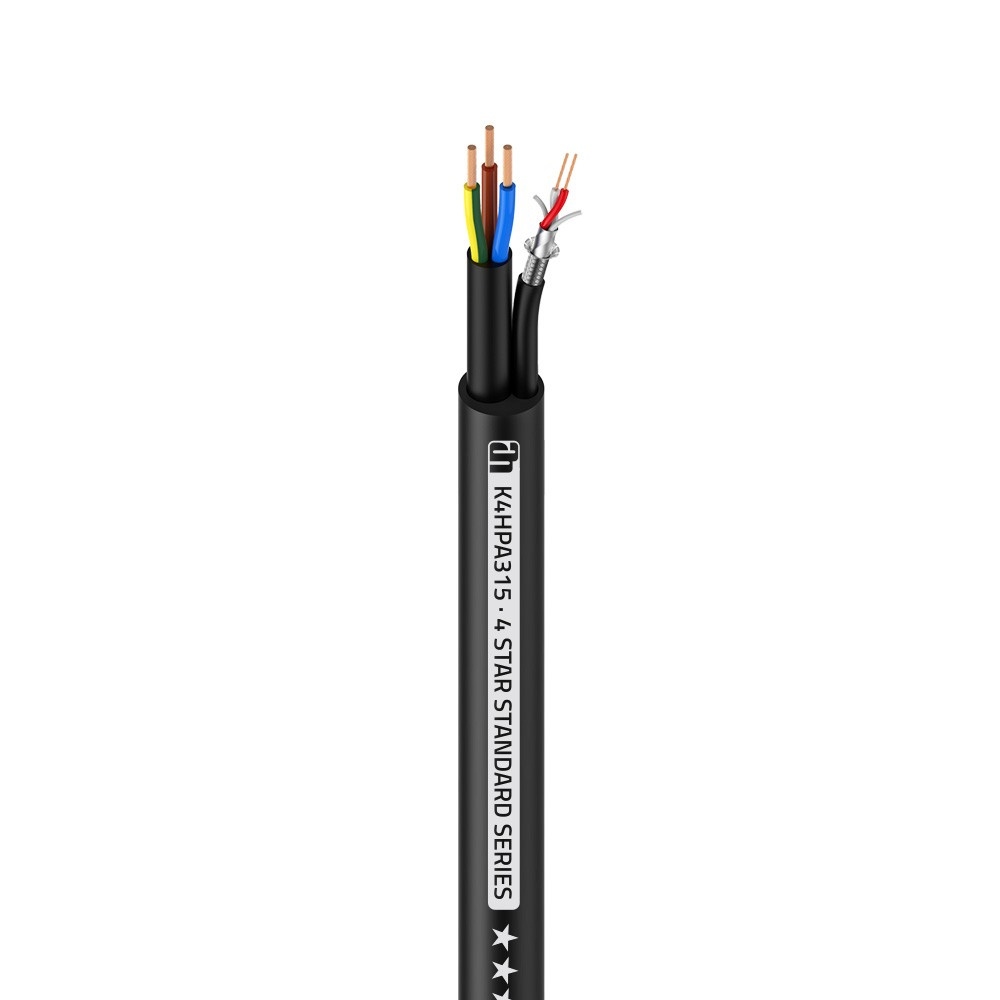

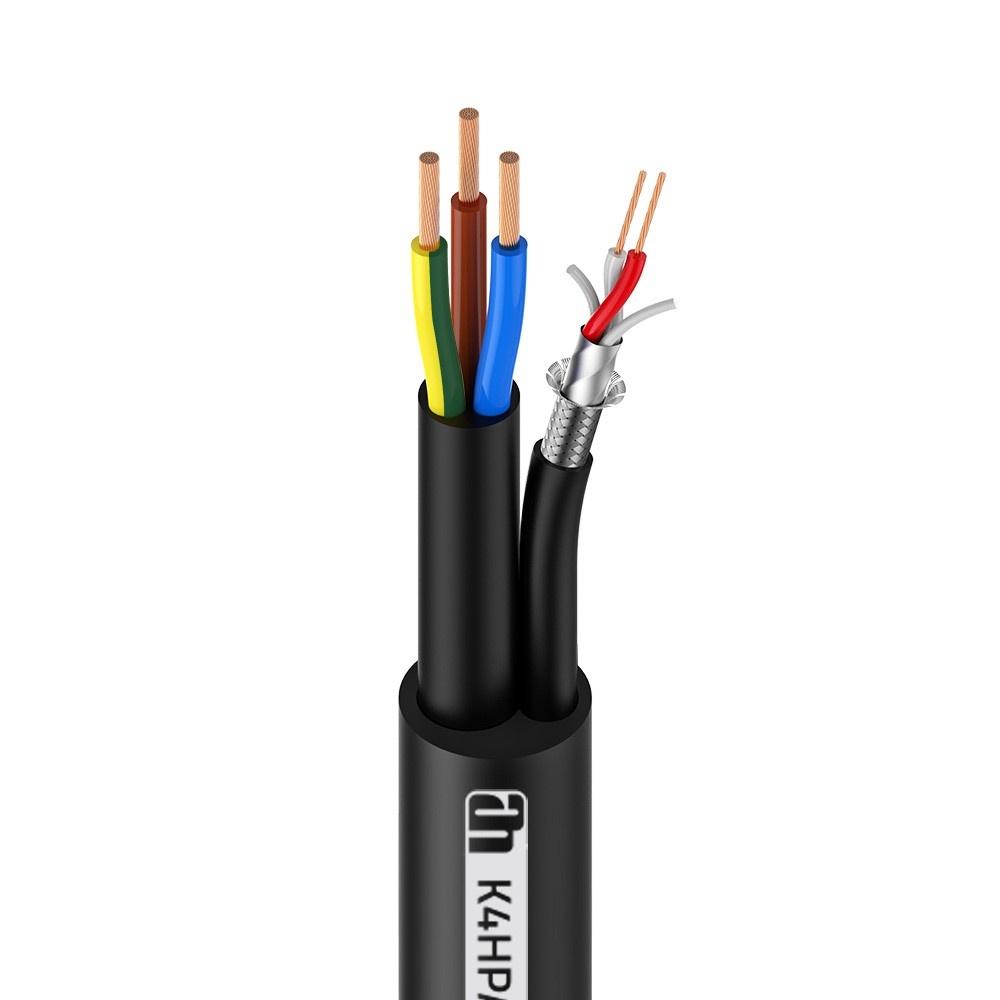

Hybrid Cable power & audio 3 x 1.5 mm² & 2 x 0,22 mm² 100 Linear m. - Adam Hall Cables

Hybrid Cable power & audio 3 x 1.5 mm² & 2 x 0,22 mm² 100 Linear m. - Adam Hall Cables
  • På lager
  • På lager, 3-8 Hverdage
  • Bedømmelse for Hybrid Cable power & audio 3 x 1.5 mm² & 2 x 0,22 mm² 100 Linear m. - Adam Hall Cables
    Produktet er endnu ikke bedømt
  •
    4.419,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner




  • 4 Star "Standard" Series
  • Packaging unit: 100 m on drum
  • for parallel transmission of power & audio signals
  • Very good shielding due to dense copper spiral shielding and additional AL/PT foil
  • Flexible PVC jacket



Product typeBulk Cable
TypePower / Signal Cable
ColorBlack
Overall diameter15 mm
Jacket materialPVC
Temperature range-20 - 70 °C
Weight0,225 kg

Power

Diameter8 mm
AWG16
Number of internal conductors3
Center conductor cross section1.5 mm²
Center conductor construction48 x 0.20 mm
Center conductor materialOFC
Conductor resistance85 ohm/km
Capacitance55 pF/m

Audio

Diameter 24 mm
AWG 224
Number of inner conductors 22
Center conductor cross section 20.22 mm²
Center conductor construction 228 x 0.10 mm
Center conductor material 2OFC
ShieldAL/PT-foil
ShieldCopper spiral coil shield
Conductor resistance 255 ohm/km
Capacitance124 pF/m
Varenr.: A-K4HPA315
