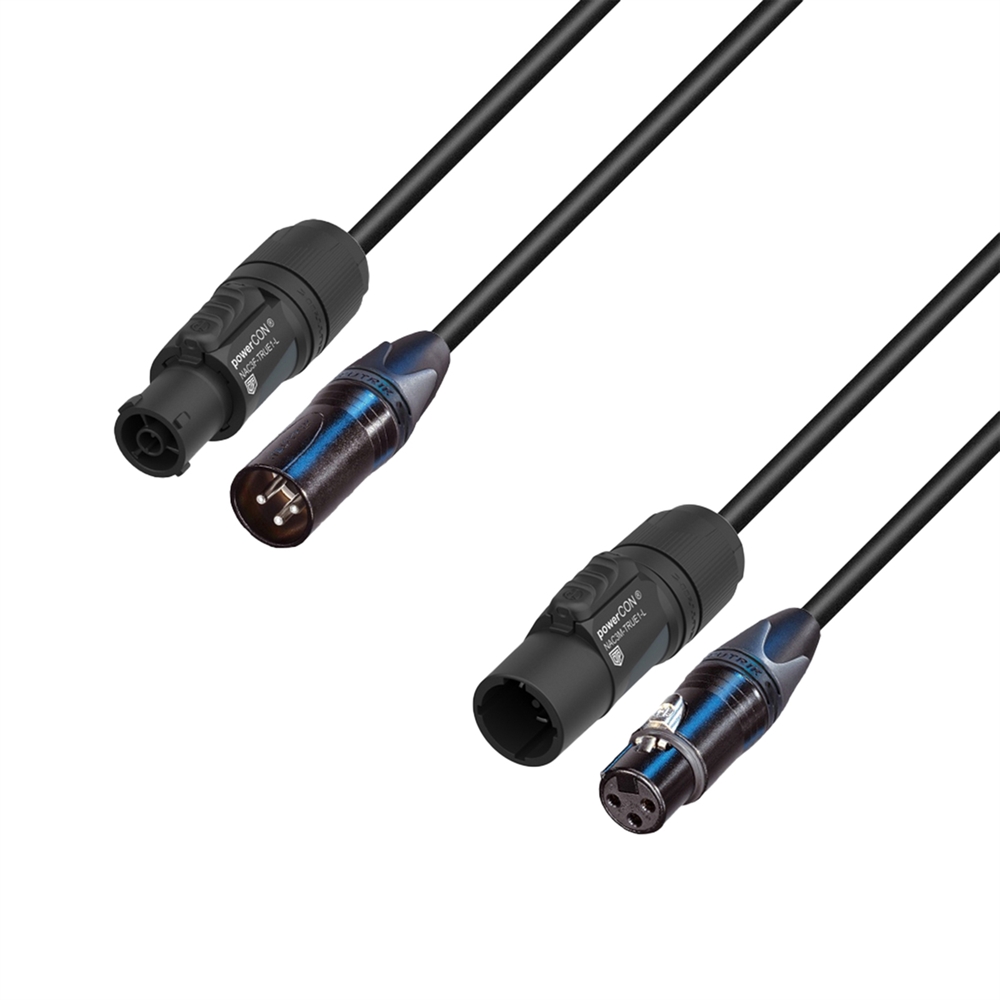

Hybrid cable audio - Neutrik® XLR x TRUE1® - 10 m - Adam Hall Cables

Hybrid cable audio - Neutrik® XLR x TRUE1® - 10 m - Adam Hall Cables
  • På lager
  • På lager, 3-8 Hverdage
  • Bedømmelse for Hybrid cable audio - Neutrik® XLR x TRUE1® - 10 m - Adam Hall Cables
    Produktet er endnu ikke bedømt
  •
    1.069,00DKK ved 1
Vis uden moms
Billigst på PriceRunner



The 5 STAR H TCON A is a premium hybrid cable from the Adam Hall 5 STAR SERIES, designed for professional applications where top-tier quality and reliability are essential. By transmitting audio and power signals simultaneously, it enables efficient cabling while reducing clutter ̶ perfect for live events, theatre productions and fixed installations.

The 5 STAR H TCON A is built with high-end components to ensure optimal signal transmission and long-lasting durability. It features original Neutrik® connectors renowned for their exceptional reliability and longevity. The XLR connectors are equipped with silver-plated contacts to ensure outstanding signal quality and minimize loss. For power transmission, a Neutrik TRUE1® connector is used, which is pluggable under load, standard-compliant and IP67-certified for protection against dust and water.

The cable boasts a conductor cross-section of 0.34 mm² for audio and 2.5 mm² for power, making it ideal for professional applications. Its flexible PVC jacket, made from a special soft-PVC compound, offers high durability while remaining easy to handle. The package also includes a hook-and-loop cable tie and two transparent heat-shrink tubes for individual labelling.

Whether for a concert, theatre production or event with demanding audio control, the 5 STAR H TCON A ensures minimal signal loss and reduced voltage drops for a reliable performance. Developed in Germany and manufactured in the EU, it meets the highest standards and guarantees a seamless show without compromise.

  • Hybrid cable for simultaneous audio and power transmission from our 5 STAR SERIES
  • Original Neutrik® connectors for maximum quality and reliability
  • XLR connectors with silver-plated contacts for optimal signal transmission
  • Neutrik TRUE1® power connector – pluggable under load, standard-compliant, IP67-certified
  • Conductor cross-sections: 0.34 mm² for audio, 2.5 mm² for power
  • Flexible PVC jacket made from a special soft-PVC compound
  • Includes accessories: Velcro cable tie and two transparent heat-shrink tubes for labelling
  • Ideal for professional audio setups (e.g. connecting LD Systems MAILA systems)
  • Developed by the Adam Hall Cables® crew in Germany, manufactured in the EU

General

Cable length10 m
Split end length40 cm
Cable jacketPVC (Polyvinyl chloride)
Cable diameter17 mm
Cable colourBlack

Plugs

Connector type plug 1XLR 3-pole male
Model name plug 1NC3MXX-BAG
Contact material plug 1Silver plated
Connector type plug 2XLR 3-pole female
Model name plug 2NC3FXX-BAG
Contact material plug 2Silver plated

Line

Conductor materialOFC (Oxygen-free copper)
Conductor cross-section2 x 0,34 mm²
AWG22
Capacity/m55 pF
Conductor impedance/km85 Ohm
ShieldSpiral copper shielding
Cable jacketPVC (Polyvinyl chloride)
Cable diameter10 mm

Mains plug

Plug type connector 1Mains plug device outdoor female & TRUE1®
Model name connector 1Neutrik NAC3F-TRUE1-L
Plug type connector 2Mains plug device outdoor male & TRUE1®
Model name connector 2Neutrik NAC3M-TRUE1-L

Mains line

Conductor materialOFC (Oxygen-free copper)
Conductor cross-section3 x 2,5 mm²
AWG13
Cable jacketPVC (Polyvinyl chloride)
Cable diameter10 mm

Dimensions & weight

Weight3.01 kg
Varenr.: A-K5HTCONA1000
