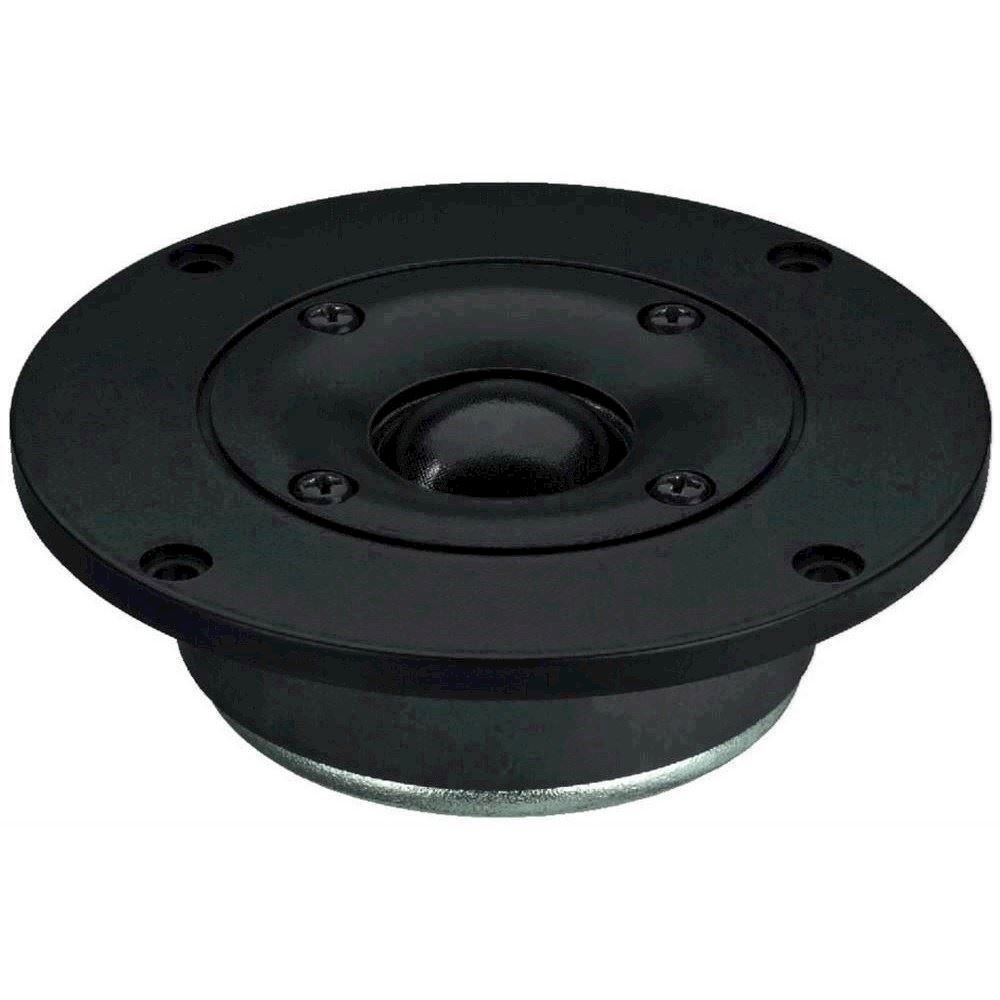

HiFi dome tweeter - DTM-104/8 - MONACOR

HiFi dome tweeter - DTM-104/8 - MONACOR
  • Fjernlager
  • På lager, 2-4 Hverdage
  • Bedømmelse for HiFi dome tweeter - DTM-104/8 - MONACOR
    Produktet er endnu ikke bedømt
  •
    229,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner


HiFi dome diskant, 100WMAX, 8Ω (/8) and 4Ω (/4)

Hi-fi dome tweeters, 45 W, 8 Ω (/8) and 4 Ω (/4)
  • Textile dome tweeter with Kapton voice coil former
  • Excellent radiation pattern due to waveguide
  • Very well-suited as a replacement for high-quality hi-fi speakers
Klang + Ton 01/2013
"What a great idea. The Cheap Trick 264 (with SPM-165/8 & DTM-104/8) wants to show that it is possible to actually provide great music at an attractive price ... and with any kind of music programme. It provides a reproduction of a comprehensive musical spectrum which is always a pleasure to listen to. With reliable material and a little care during assembly, you already get an all-round speaker which is absolutely suitable for practical operation."


Impedance (Z)8 Ω
Transmission method-

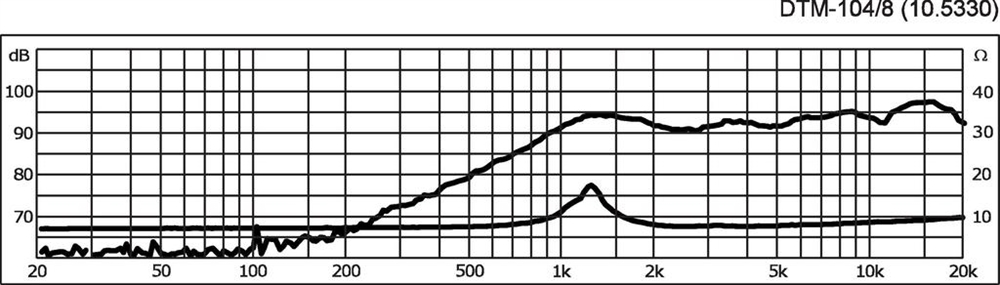

Frequency rangefx-19,000 Hz
Resonant frequency (fs)1,200 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)2,500 Hz
Power rating45 W
Peak music power output100 W
Sensitivity92 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)-
Moving mass (Mms)-
Mech. Q factor (Qms)-
Electr. Q factor (Qes)-
Total Q factor (Qts)-
Equivalent volume (Vas)-
DC resistance (Re)-
Force factor (BxL)-
Voice coil induct. (Le)-
Voice coil diameterØ 25 mm
Voice coil former-
Linear excursion (XMAX)-
Eff. cone area (Sd)-
Magnet weight-
Magnet diameter70 mm
Mounting cutoutØ 80 mm
Mounting depth29 mm
Mounting hole diameter-
Hole spacing X-axis-
Hole spacing Y-axis-

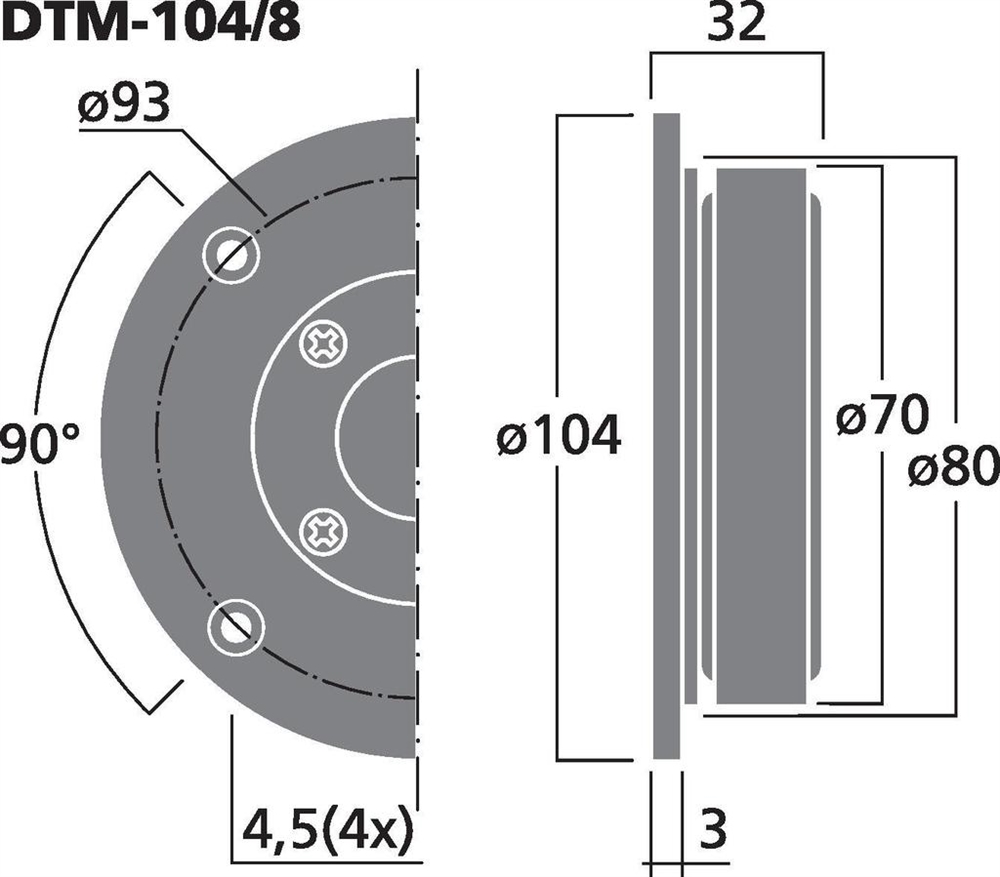

DimensionsØ 104 x 32 mm
Outside diameterØ 104 mm
WidthØ 104 mm
Height-
Depth32 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight520 g
Packing unit1
Type of speaker-
Varenr.: 105330
