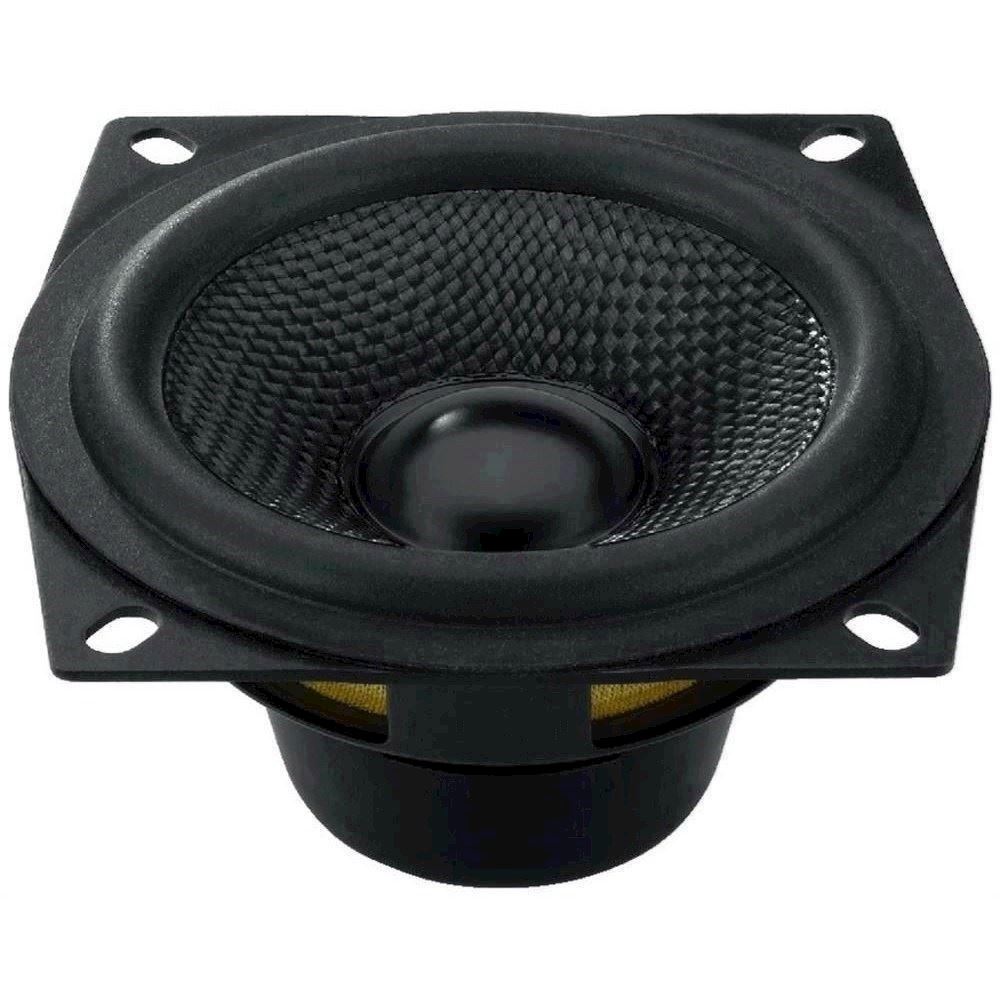

Fuldtonehøjttaler 3'' - SPH-30X/8SW

Fuldtonehøjttaler 3\'\' - SPH-30X/8SW
  • Fjernlager
  • På lager, 2-4 Hverdage
  • Bedømmelse for Fuldtonehøjttaler 3'' - SPH-30X/8SW
    Produktet er endnu ikke bedømt
  •
    439,00DKK ved 1 stk.
Vis uden moms
Billigst på PriceRunner


High-quality hi-fi full range speakers, 50WMAX, 8 ohm (/8) or 4 ohm (/4), with yellow or black (SW) Kevlar cone

High-quality hi-fi full range speakers, 20 W, 8 Ω (/8) or 4 Ω (/4), with black Kevlar cone
  • Well-damped Kevlar cone of extra low weight
  • Drive system with full air ventilation
  • High-quality NEODYMIUM magnet system with double magnet
  • Specially developed basket also for multiple arrangements
  • High efficiency
  • Small speakers for background PA applications or e.g. rear speakers in home cinema systems
  • Suitable for applications from mid-high range speakers or full range midrange speakers in high-end hi-fi speaker systems to multiple arrangements in column speakers


Impedance (Z)8 Ω
Transmission method-

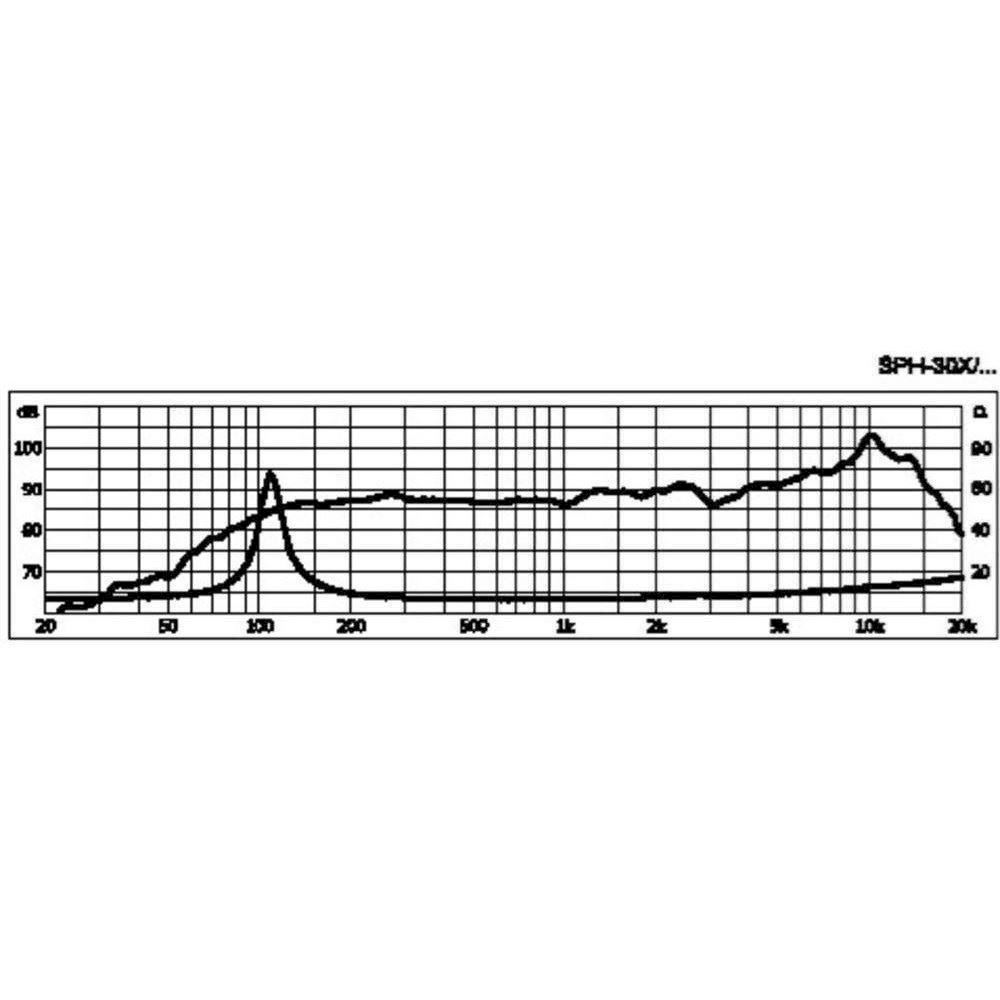

Frequency rangef3-17,000 Hz
Resonant frequency (fs)105 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating20 W
Peak music power output50 W
Sensitivity87 dB/W/m
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)0.90 mm/N
Moving mass (Mms)2.65 g
Mech. Q factor (Qms)8.59
Electr. Q factor (Qes)0.49
Total Q factor (Qts)0.42
Equivalent volume (Vas)1.3 l
DC resistance (Re)5.7 Ω
Force factor (BxL)4.48 Tm
Voice coil induct. (Le)0.5 mH
Voice coil diameter21 mm
Voice coil formerKapton
Linear excursion (XMAX)± 2 mm
Eff. cone area (Sd)30 cm2
Magnet weightneodymium
Magnet diameter-
Mounting cutoutØ 73 mm
Mounting depth40.7 mm
Mounting hole diameter-
Hole spacing X-axis-
Hole spacing Y-axis-

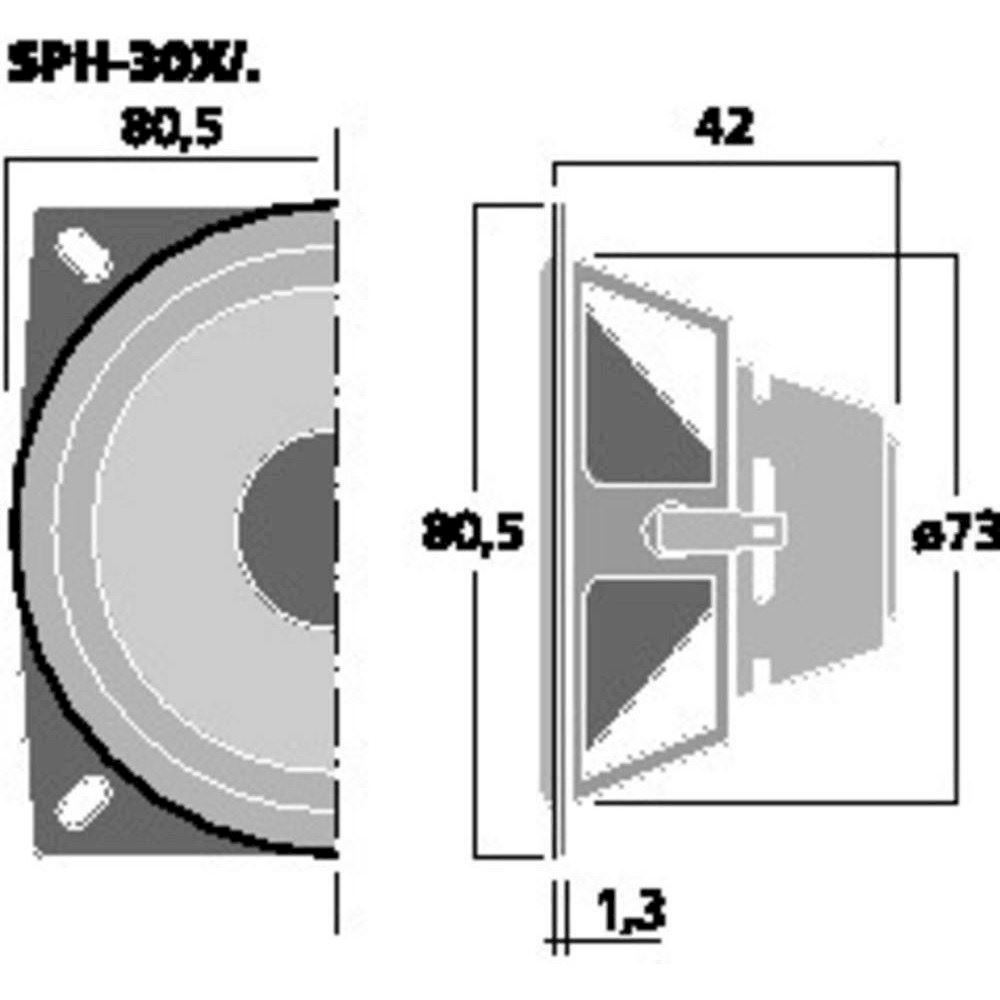

DimensionsØ 80.5 mm x 42 mm
Outside diameter-
Width80.5 mm
Height80.5 mm
Depth42 mm
Protective class-
Admiss. ambient temp.0-40 °C
Weight141 g
Packing unit1
Type of speaker3"


Varenr.: 104190
