Light Source / Optics
100 Watt LED, (50 Watt CW and 50 Watt WW).

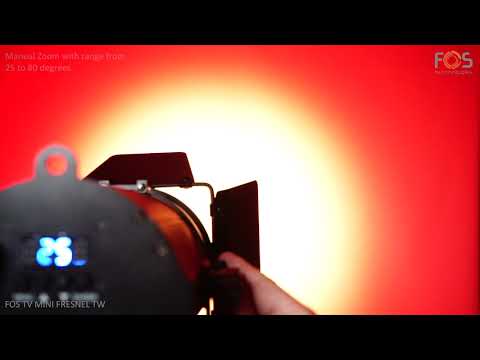

Beam angle from 25° to 80°, with manual zoom.
Flicker-free light source: the LEDs operation frequency can be adjusted via the options menu.
LED lifespan: 50.000 hours.
Characteristics
The white ballance can be adjusted via onboard knobs, or DMX channels.
Color temperature ranges from 2700 to 6500 Kelvin.
CRI 95, R9≥90, TLCI 98, CQS 96
Smooth dimmer from 0 to 100%, with selectable dimmer speeds.
Barndoors included.
DMX control with 1, 2, 3 & 5 channels.
Photometric Data
Measuring distance: 1 meter
Warm White Maximum Zoom 80°
Color Temperature (K): 2840
Illuminance (lx): 1778
CRI (Ra): 94
TLCI (Qa): 97.8
Flicker Frequency (Hz): 90
Flicker(%): 11
Warm White Minimum Zoom 25°
Color Temperature (K): 2836
Illuminance (lx): 6046
CRI (Ra): 95
TLCI (Qa): 97.6
Flicker Frequency (Hz): 3
Flicker(%): 20
Cool White Maximum Zoom 80°
Color Temperature (K): 6440
Illuminance (lx): 2218
CRI (Ra): 98
TLCI (Qa): 98.3
Flicker Frequency (Hz): 90
Flicker(%): 12
Cool White Minimum Zoom 25°
Color Temperature (K): 6216
Illuminance (lx): 8258
CRI (Ra): 97
TLCI (Qa): 98.2
Flicker Frequency (Hz): 3
Flicker(%): 12
WW + CW Maximum Zoom 80°
Color Temperature (K): 4417
Illuminance (lx): 1801
CRI (Ra): 95
TLCI (Qa): 98.7
Flicker Frequency (Hz): 90
Flicker(%): 25
WW + CW Minimum Zoom 25°
Color Temperature (K): 4356
Illuminance (lx): 6683
CRI (Ra): 96
TLCI (Qa): 98.7
Flicker Frequency (Hz): 90
Flicker(%): 28
Technical Specifications
Power supply: 100 / 240 Volt AC, 50/60 Hz.
Typical power consumption: 230 V, 50 Hz: 1.2 A, 38 W, PF 0.96. Meoasurements made at nominal voltage with all LEDs at full intensity. Allow for a deviation of +/- 10%..
IP20, use indoors only.
Dimensions: L 230 x W 156 x H 279 mm.
Net weight: 2.2 Kg.
