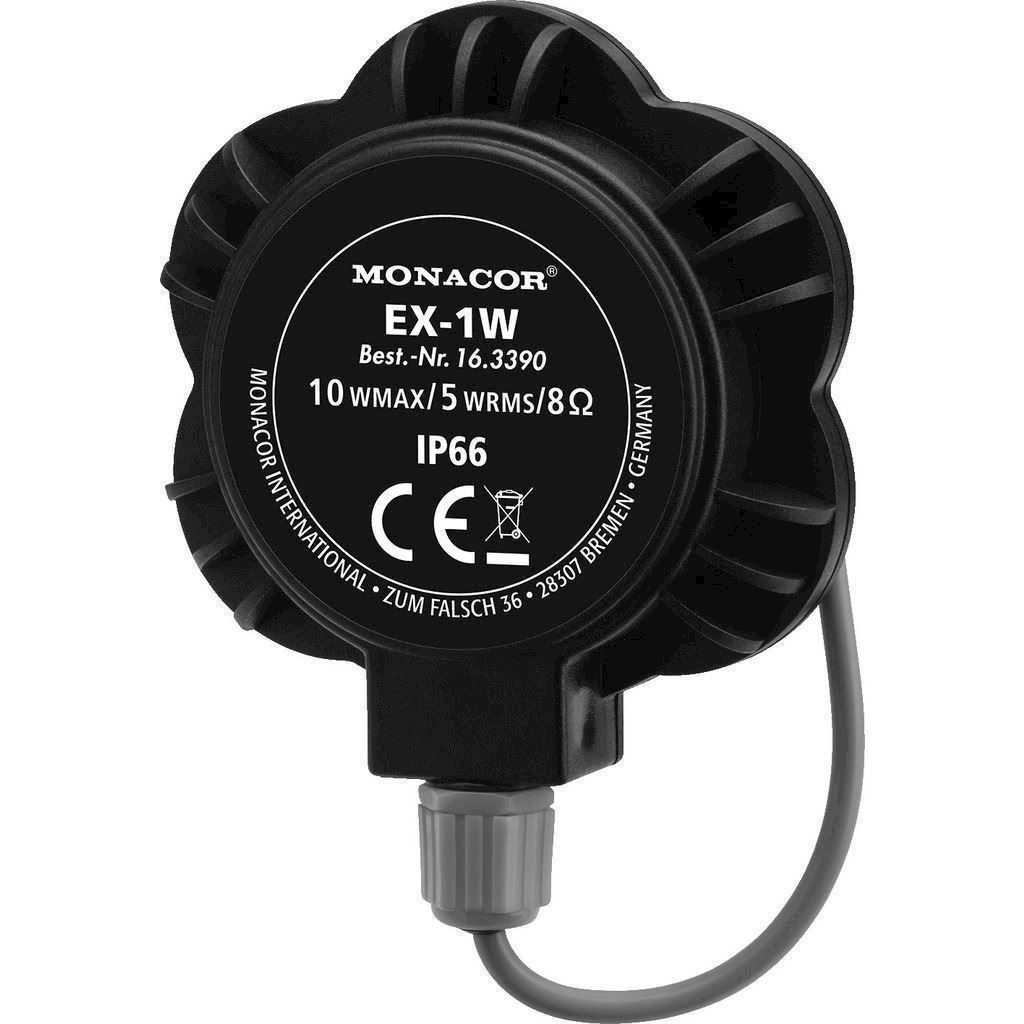

Exciter højttaler - EX-1W

Exciter højttaler - EX-1W
  • På lager
  • På lager, 1-3 dage
  • Bedømmelse for Exciter højttaler - EX-1W
    Produktet er endnu ikke bedømt
  •
    329,00DKK ved 1 stk.
Vis uden moms



Audio exciter/resonator, 5 W, 8 Ω
Exciters are suitable for music and voice reproductions via surfaces capable of vibrating. They are simply glued onto doors, cupboard doors, shelves, desktops, lightweight walls, ceiling panels or many other surfaces which are capable of vibrating. Vibration of these surfaces create an impressive sound in the entire surrounding area.
  • Depending on the mounting surface, very wide bandwidth reproduction with amazing volumes
  • Excellent sound quality
  • Dustproof and hose-proof according to IP66
  • Suitable for unobtrusive PA applications, e.g. at doors, cupboards, shelves, glass panels, desktops, shower screens
  • Supplied with 3M adhesive pad
Impedance (Z)8 Ω
Transmission method-
Frequency rangedep. on the installation, goes beyond 20 kHz
Resonant frequency (fs)1,200 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)-
Power rating5 W
Peak music power output10 W
Sensitivityno data
Max. rated SPL-
Max. voltage-
Radiation angle, horizontal-
Radiation angle, vertical-
Suspension compl. (Cms)-
Moving mass (Mms)-
Mech. Q factor (Qms)-
Electr. Q factor (Qes)-
Total Q factor (Qts)-
Equivalent volume (Vas)-
DC resistance (Re)-
Force factor (BxL)-
Voice coil induct. (Le)-
Voice coil diameterØ 25 mm
Voice coil formerKSV
Linear excursion (XMAX)-
Eff. cone area (Sd)-
Magnet weight-
Magnet diameter-
Mounting cutout-
Mounting depth-
Mounting hole diameter-
Hole spacing X-axis-
Hole spacing Y-axis-

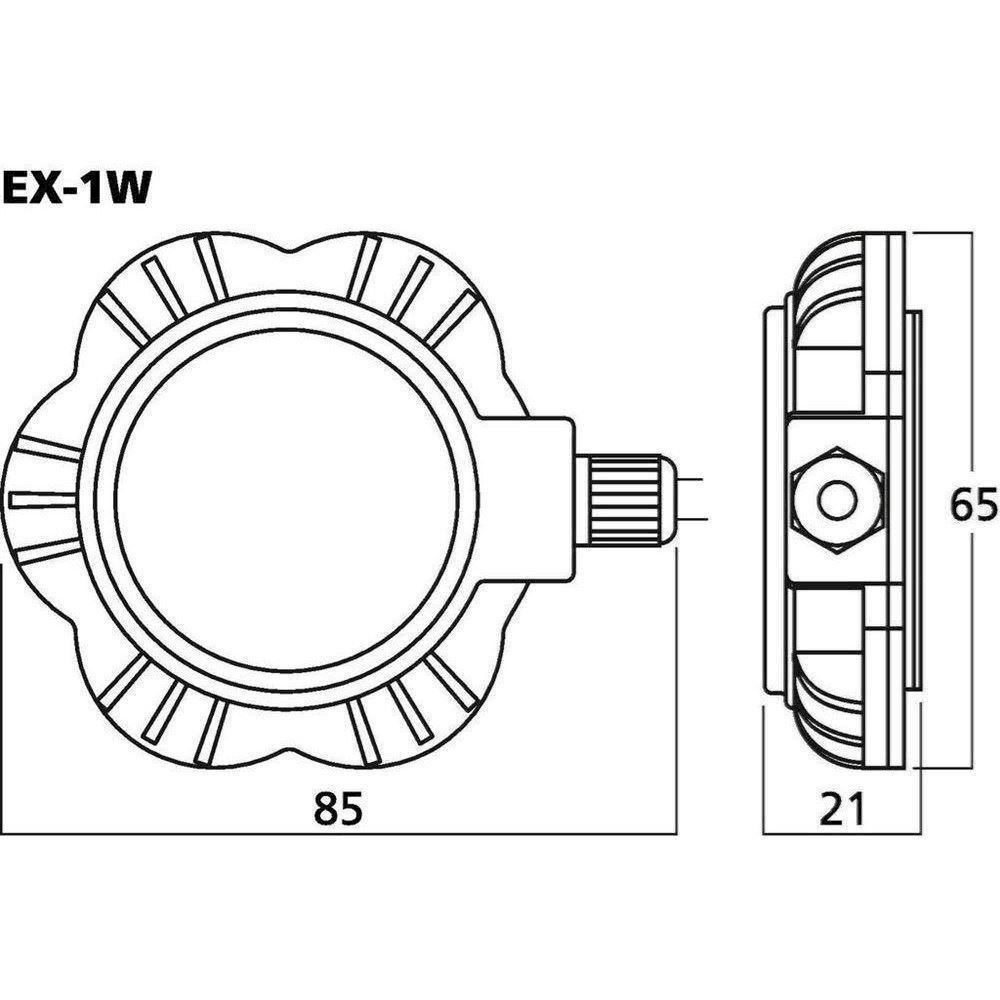

Dimensions85 x 65 x 21 mm
Outside diameter-
Width85 mm
Height65 mm
Depth21
Protective classIP66
Admiss. ambient temp.-10 °C to +40 °C
Weight0.107 kg
Packing unit1
Type of speaker-
Varenr.: 163390
